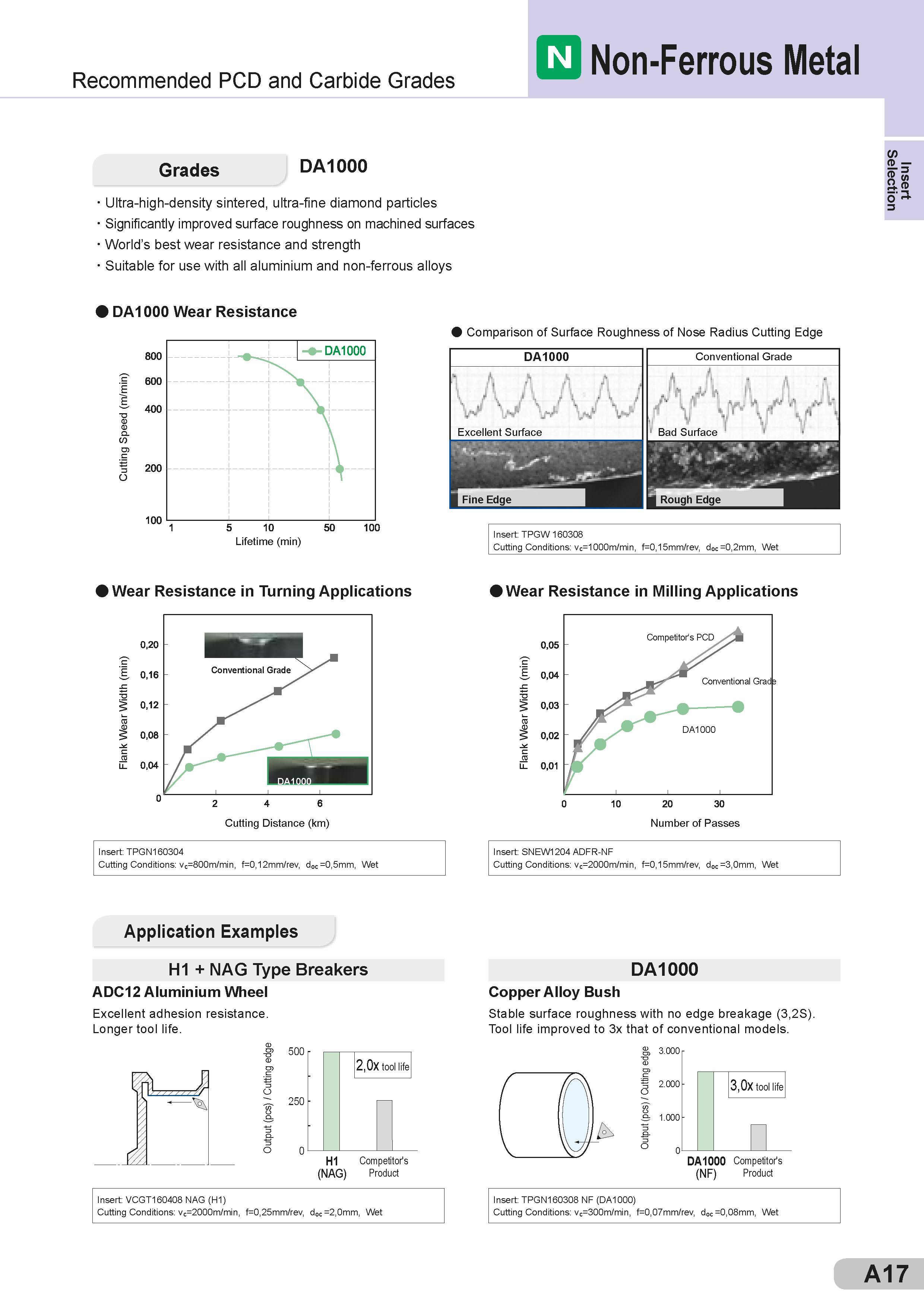

Recommended PCD and Carbide Grades Non-Ferrous Metal Grades DA1000 Ultra-high-density sintered, ultra-fine diamond particles Significantly improved surface roughness on machined surfaces World's best wear resistance and strength Suitable for use with all aluminium and non-ferrous alloys DA1000 Wear Resistance Comparison of Surface Roughness of Nose Radius Cutting Edge DA1000 Excellent Surface Insert: TPGW 160308 Cutting Conditions: vc=1000m/min, f=0,15mm/rev, doc =0,2mm, Wet Wear Resistance in Turning Applications 2 4 6 Cutting Distance (km) Wear Resistance in Milling Applications Number of Passes Insert: TPGN160304 Cutting Conditions: vc=800m/min, f=0,12mm/rev, doc =0,5mm, Wet Insert: SNEW1204 ADFR-NF Cutting Conditions: vc=2000m/min, f=0,15mm/rev, doc =3,0mm, Wet Application Examples H1 + NAG Type Breakers ADC12 Aluminium Wheel Excellent adhesion resistance. Longer tool life. (NAG) Product Insert: VCGT160408 NAG (H1) Cutting Conditions: vc=2000m/min, f=0,25mm/rev, doc =2,0mm, Wet DA1000 Copper Alloy Bush Stable surface roughness with no edge breakage (3,2S). Tool life improved to 3x that of conventional models. (NF) Product Insert: TPGN160308 NF (DA1000) Cutting Conditions: vc=300m/min, f=0,07mm/rev, doc =0,08mm, Wet A17 Insert Selection
