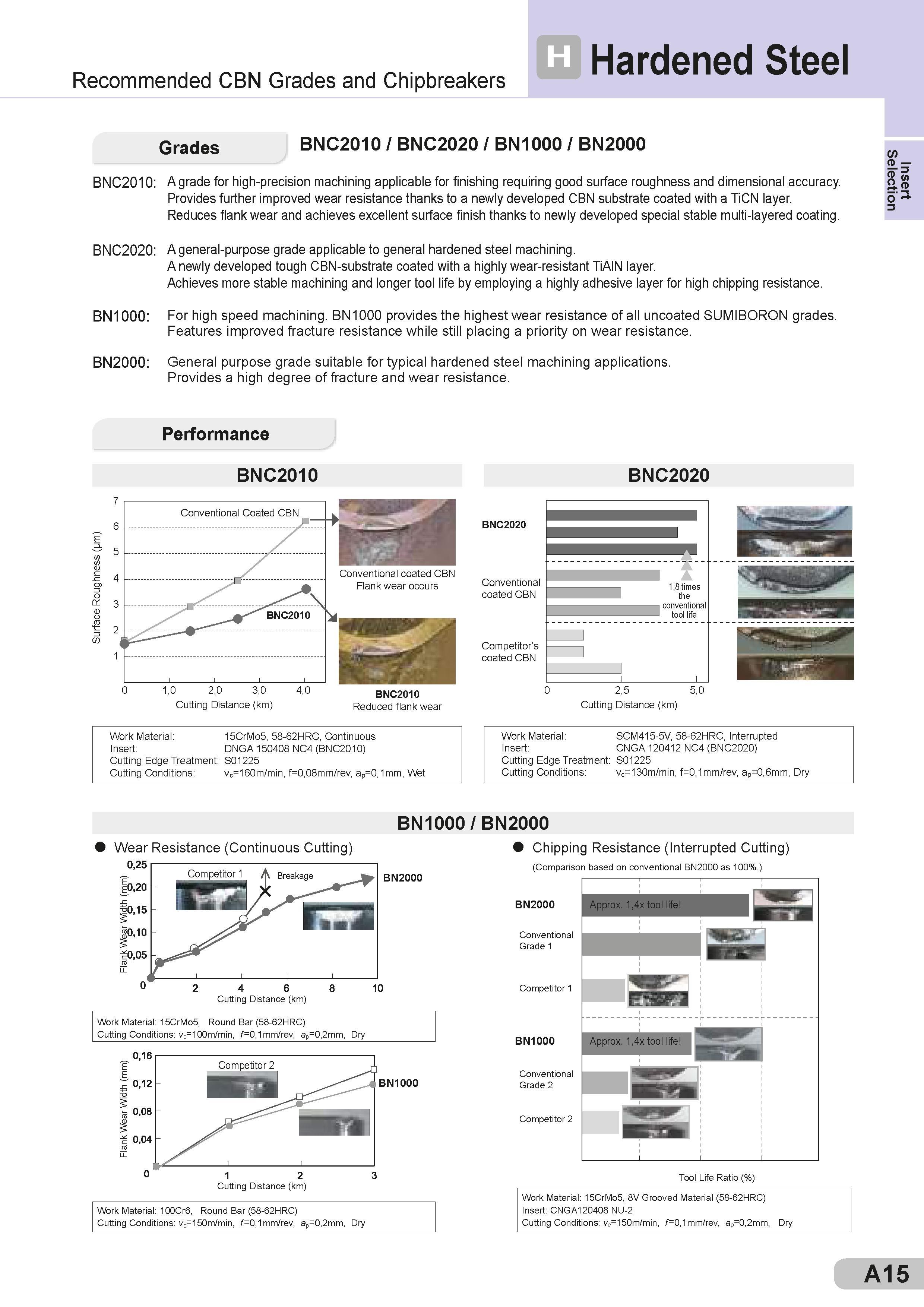

Recommended CBN Grades and Chipbreakers Hardened Steel Grades BNC2010 / BNC2020 / BN1000 / BN2000 BNC2010: A grade for high-precision machining applicable for finishing requiring good surface roughness and dimensional accuracy. Provides further improved wear resistance thanks to a newly developed CBN substrate coated with a TiCN layer. Reduces flank wear and achieves excellent surface finish thanks to newly developed special stable multi-layered coating. BNC2020: A general-purpose grade applicable to general hardened steel machining. A newly developed tough CBN-substrate coated with a highly wear-resistant TiAlN layer. Achieves more stable machining and longer tool life by employing a highly adhesive layer for high chipping resistance. BN1000: For high speed machining. BN1000 provides the highest wear resistance of all uncoated SUMIBORON grades. Features improved fracture resistance while still placing a priority on wear resistance. BN2000: General purpose grade suitable for typical hardened steel machining applications. Provides a high degree of fracture and wear resistance. Performance BNC2010 BNC2020 & 3 1 BNC2020 Conventional coated CBN Flank wear occurs Cor entonal coated CBN 1,0 2,0 3,0 Cutting Distance (km) Competitors coated CBN BNC2010 Reduced flank wear 2,5 Cutting Distance (km) 7 6 5 4 2 Work Material: 15CrMo5, 58-62HRC, Continuous Insert: DNGA 150408 NC4 (BNC2010) Cutting Edge Treatment: S01225 Cutting Conditions: vc=160m/min, f=0,08mm/rev, ap=0,1mm, Wet Work Material: SCM415-5V, 58-62HRC, Interrupted Insert: CNGA 120412 NC4 (BNC2020) Cutting Edge Treatment: S01225 Cutting Conditions: vc=130m/min, f=0,1mm/rev, ap=0,6mm, Dry BN1000 / BN2000 Wear Resistance (Continuous Cutting) Cutting Distance (km) Work Material: 15CrMo5, Round Bar (58-62HRC) Cutting Conditions: Vc=100m/min, f=0,1mm/rev, ap=0,2mm, Dry 0,16 Cutting Distance (km) Work Material: 100Cr6, Round Bar (58-62HRC) Cutting Conditions: vc=150m/min, f=0,1mm/rev, ap=0,2mm, Dry Chipping Resistance (Interrupted Cutting) (Comparison based on conventional BN2000 as 100%.) Tool Life Ratio (%) Work Material: 15CrMo5, 8V Grooved Material (58-62HRC) Insert: CNGA120408 NU-2 Cutting Conditions: Vc=150m/min, f=0,1mm/rev, ap=0,2mm, Dry A15 Insert Selection
