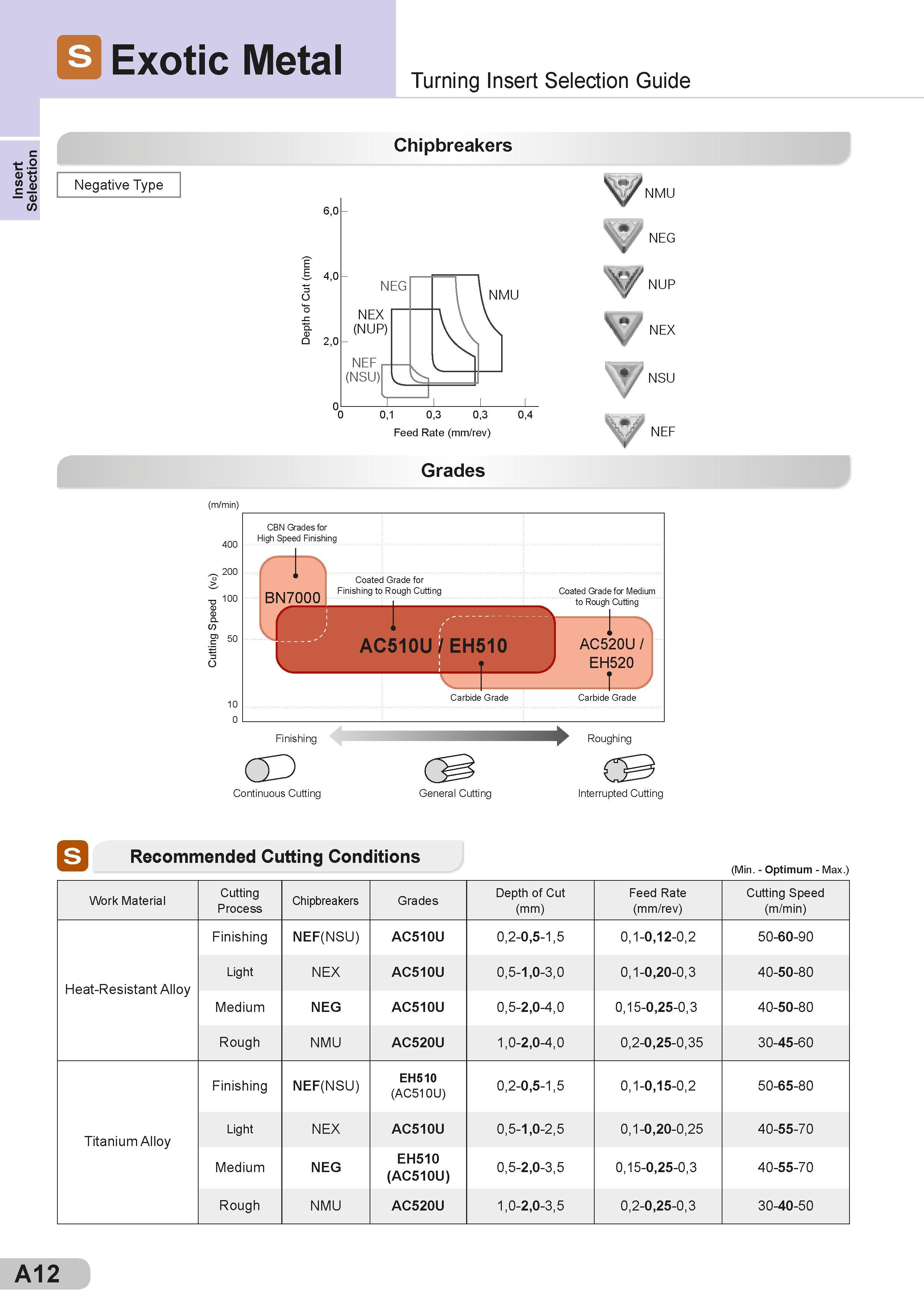

Insert Selection Exotic Metal Negative Type Turning Insert Selection Guide Chipbreakers NMU & Mt NEG NUP NEX NSU NEF Grades (m/min) 400 )c200 n 100 CBN Grades for High Speed Finishing BN7000 flj Coated Grade for Finishing to Rough Cutting Coated Grade for Medium to Rough Cutting AC510U / EH510 AC520U / EH520 I 10 0 Carbide Grade Carbide Grade Finishing Roughing CD Continuous Cutting General Cutting Interrupted Cutting S Recommended Cutting Conditions (Min. - Optimum - Max.) Work Material Cutting Process Chipbreakers Grades Depth of Cut (mm) Feed Rate (mm/rev) Cutting Speed (m/min) Finishing NEF(NSU) AC510U 0,2-0,5-1,5 0,1-0,12-0,2 50-60-90 Heat-Resistant Alloy Light NEX AC510U 0,5-1,0-3,0 0,1-0,20-0,3 40-50-80 Medium NEG AC510U 0,5-2,0-4,0 0,15-0,25-0,3 40-50-80 Rough NMU AC520U 1,0-2,0-4,0 0,2-0,25-0,35 30-45-60 Finishing NEF(NSU) EH510 (AC510U) 0,2-0,5-1,5 0,1-0,15-0,2 50-65-80 Titanium Alloy Light NEX AC510U 0,5-1,0-2,5 0,1-0,20-0,25 40-55-70 Medium NEG EH510 (AC510U) 0,5-2,0-3,5 0,15-0,25-0,3 40-55-70 Rough NMU AC520U 1,0-2,0-3,5 0,2-0,25-0,3 30-40-50 50 A12
