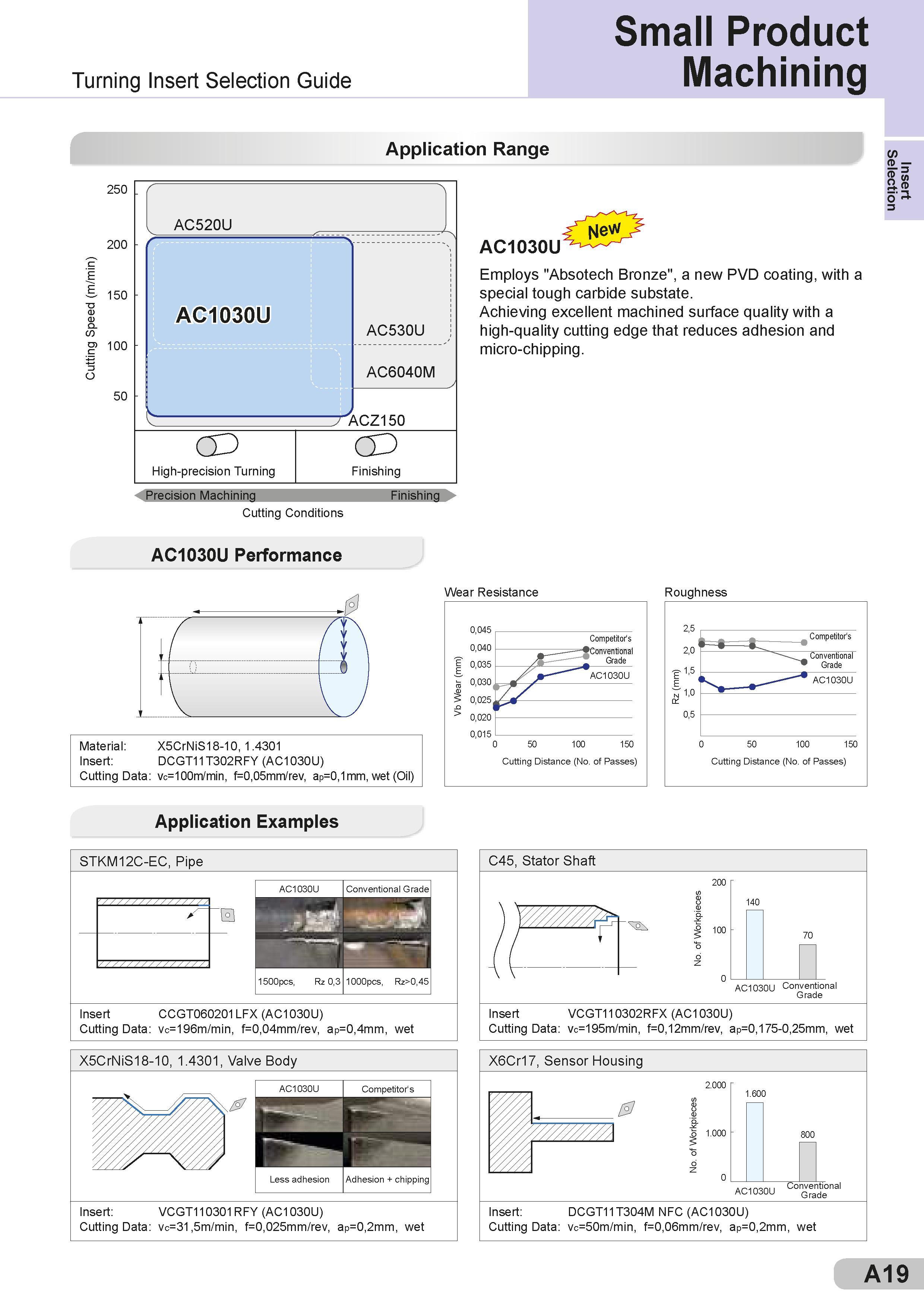

Turning Insert Selection Guide Small Product Machining Application Range 250 200 150 E i d e e p S 100 C 50 f a AC520U J-s AC1030U AC530U AC6040M j J ACZ150 CD 03 High-precision Turning Finishing Precision Machining Finishing AC1030U Employs "Absotech Bronze", a new PVD coating, with a special tough carbide substate. Achieving excellent machined surface quality with a high-quality cutting edge that reduces adhesion and micro-chipping. Cutting Conditions AC1030U Performance Wear Resistance Roughness Material: X5CrNiS18-10, 1.4301 Insert: DCGT11T302RFY (AC1030U) Cutting Data: vc=100m/min, f=0,05mm/rev, ap=0,1mm, wet (Oil) 0,045 0,040 mm) 0,035 i 0,030 S 0,025. V0,020 Competitors /8= JCunv r,aidueal AC1030U y 0 50 100 150 Cutting Distance (No. of Passes) Cutting Distance (No. of Passes) Application Examples STKM12C-EC, Pipe Insert CCGT060201LFX (AC1030U) Cutting Data: vc=196m/min, f=0,04mm/rev, ap=0,4mm, wet X5CrNiS18-10, 1.4301, Valve Body Insert: VCGT110301RFY (AC1030U) Cutting Data: vc=31,5m/min, f=0,025mm/rev, ap=0,2mm, wet C45, Stator Shaft Insert VCGT110302RFX (AC1030U) Cutting Data: vc=195m/min, f=0,12mm/rev, ap=0,175-0,25mm, wet X6Cr17, Sensor Housing 2.000 .600 pieces : y////////// 1.000 'yyyV/ of V//// o N 0 Insert: DCGT11T304M NFC (AC1030U) Cutting Data: vc=50m/min, f=0,06mm/rev, ap=0,2mm, wet 800 AC1030U A19 Insert Selection
