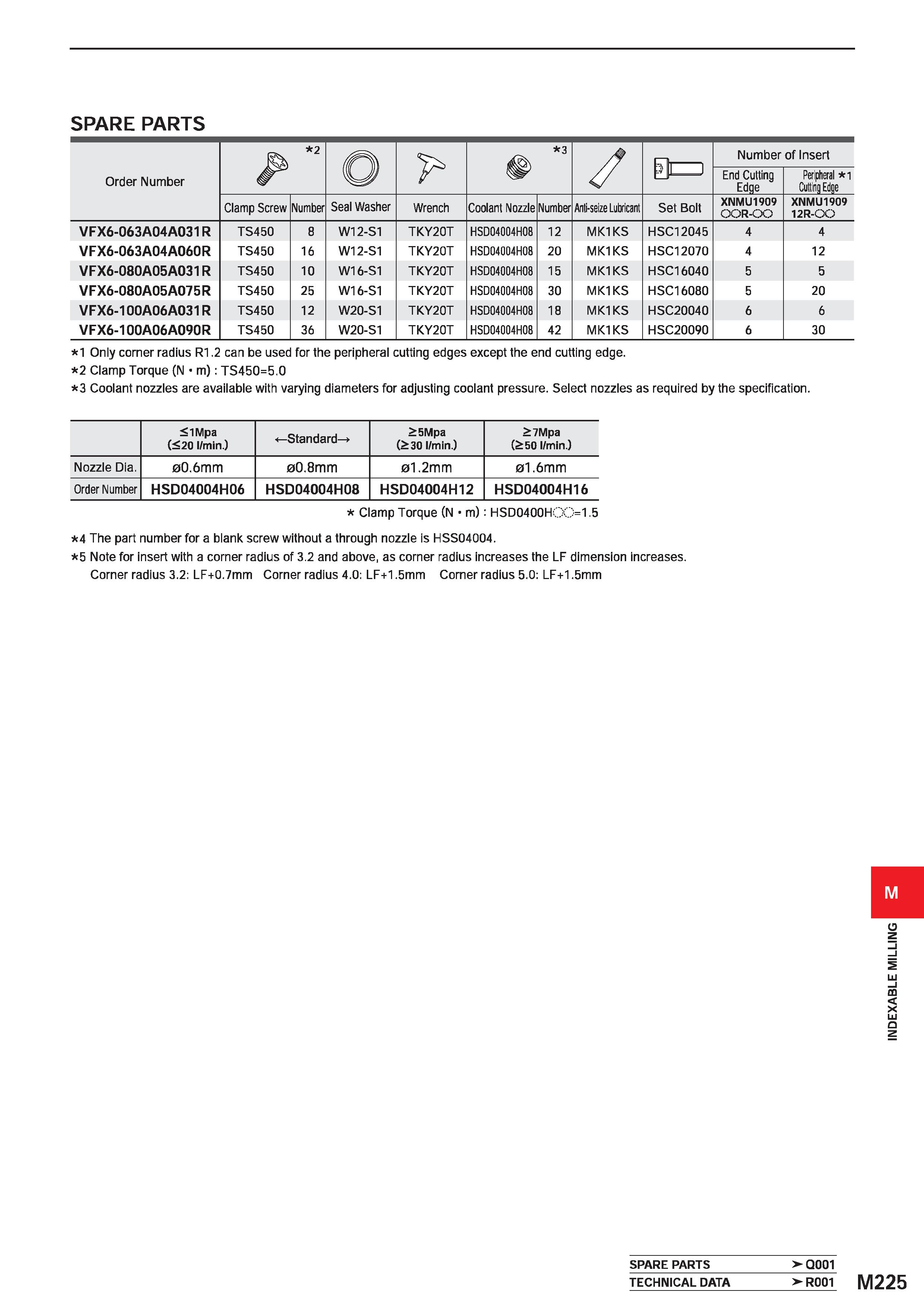

SPARE PARTS Order Number 2 o 3 / Flh-1 Number of Insert EJJ-J End Cutting Edqe Peripheral 1 Cuttinq Edqe Clamp Screw Number Seal Washer Wrench Coolant Nozzle Number Anti-seize Lubricant Set Bolt XNMU1909 OOR-OO XNMU1909 12R-OG VFX6-063A04A031R TS450 8 W12-S1 TKY20T HSD04004H08 12 MK1 KS HSC12045 4 4 VFX6-063A04A060R TS450 16 W12-S1 TKY20T HSD04004H08 20 MK1 KS HSC12070 4 12 VFX6-080A05A031R TS450 10 W16-S1 TKY20T HSD04004H08 15 MK1 KS HSC16040 5 5 VFX6-080A05 A075 R TS450 25 W16-S1 TKY20T HSD04004H08 30 MK1 KS HSC16080 5 20 VFX6-100A06A031R TS450 12 W20-S1 TKY20T HSD04004H08 18 MK1 KS HSC20040 6 6 VFX6-100A06A090R TS450 36 W20-S1 TKY20T HSD04004H08 42 MK1 KS HSC20090 6 30 1 Only corner radius R1.2 can be used for the peripheral cutting edges except the end cutting edge. 2 Clamp Torque (N m): TS450=5.0 3 Coolant nozzles are available with varying diameters for adjusting coolant pressure. Select nozzles as required by the specification. 1Mpa (<20 l/min.) (-Standard > >5Mpa (>30 l/min.) >7Mpa ( 50 l/min.) Nozzle Dia. 00.6mm 00.8mm 01.2mm 01.6mm Order Number HSD04004H06 HSD04004H08 HSD04004H12 HSD04004H16 Clamp Torque (N m): HSD0400H001.5 4 The part number for a blank screw without a through nozzle is HSS04004. 5 Note for insert with a comer radius of 3.2 and above, as comer radius increases the LF dimension increases. Corner radius 3.2: LF+0.7mm Corner radius 4.0: LF+1,5mm Corner radius 5.0: LF+1,5mm SPARE PARTS >-Q001 TECHNICAL DATA > R001 M M225 INDEXABLE MILLING
