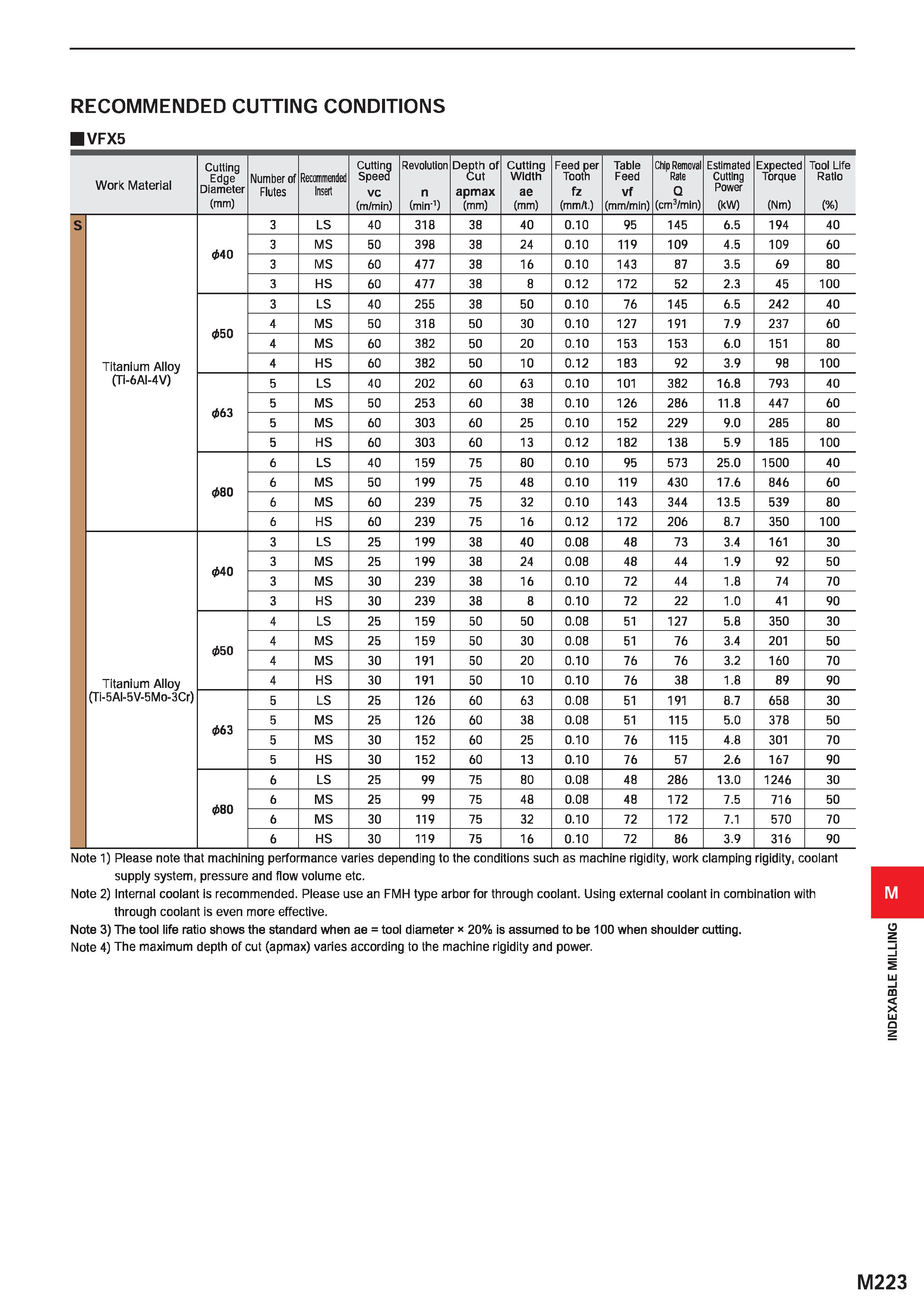

RECOMMENDED CUTTING CONDITIONS VFX5 Work Material Cutting Edge Diameter (mm) Number of Flutes Recommended Insert Cutting Speed vc (m/min) Revolution n (min-1) Depth of Cut apmax (mm) Cutting Width ae (mm) Feed per Tootn fz (mm/t.) Table Feed vf (mm/min) Chip Removal Rate Q (cm3/min) Estimated Cutting Power (kW) Expected Torque (Nm) Tool Life Ratio (%) S 3 LS 40 318 38 40 0.10 95 145 6.5 194 40 040 3 MS 50 398 38 24 0.10 119 109 4.5 109 60 3 MS 60 477 38 16 0.10 143 87 3.5 69 80 3 HS 60 477 38 8 0.12 172 52 2.3 45 100 3 LS 40 255 38 50 0.10 76 145 6.5 242 40 50 4 MS 50 318 50 30 0.10 127 191 7.9 237 60 4 MS 60 382 50 20 0.10 153 153 6.0 151 80 Titanium Alloy 4 HS 60 382 50 10 0.12 183 92 3.9 98 100 (Ti-6AI-4V) 5 LS 40 202 60 63 0.10 101 382 16.8 793 40 063 5 MS 50 253 60 38 0.10 126 286 11.8 447 60 5 MS 60 303 60 25 0.10 152 229 9.0 285 80 5 HS 60 303 60 13 0.12 182 138 5.9 185 100 6 LS 40 159 75 80 0.10 95 573 25.0 1500 40 080 6 MS 50 199 75 48 0.10 119 430 17.6 846 60 6 MS 60 239 75 32 0.10 143 344 13.5 539 80 6 HS 60 239 75 16 0.12 172 206 8.7 350 100 3 LS 25 199 38 40 0.08 48 73 3.4 161 30 040 3 MS 25 199 38 24 0.08 48 44 1.9 92 50 3 MS 30 239 38 16 0.10 72 44 1.8 74 70 3 HS 30 239 38 8 0.10 72 22 1.0 41 90 4 LS 25 159 50 50 0.08 51 127 5.8 350 30 050 4 MS 25 159 50 30 0.08 51 76 3.4 201 50 4 MS 30 191 50 20 0.10 76 76 3.2 160 70 Titanium Alloy 4 HS 30 191 50 10 0.10 76 38 1.8 89 90 (Ti-5AI-5V-5Mo-3Cr) 5 LS 25 126 60 63 0.08 51 191 8.7 658 30 063 5 MS 25 126 60 38 0.08 51 115 5.0 378 50 5 MS 30 152 60 25 0.10 76 115 4.8 301 70 5 HS 30 152 60 13 0.10 76 57 2.6 167 90 6 LS 25 99 75 80 0.08 48 286 13.0 1246 30 080 6 MS 25 99 75 48 0.08 48 172 7.5 716 50 6 MS 30 119 75 32 0.10 72 172 7.1 570 70 6 HS 30 119 75 16 0.10 72 86 3.9 316 90 Note 1) Please note that machining performance varies depending to the conditions such as machine rigidity, work clamping rigidity, coolant supply system, pressure and flow volume etc. Note 2) Internal coolant is recommended. Please use an FMH type arbor for through coolant. Using external coolant in combination with through coolant is even more effective. Note 3) The tool life ratio shows the standard when ae = tool diameter 20% is assumed to be 100 when shoulder cutting. Note 4) The maximum depth of cut (apmax) varies according to the machine rigidity and power. M223 INDEXABLE MILLING
