1308 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.M152

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. M152 1308 Lab2u

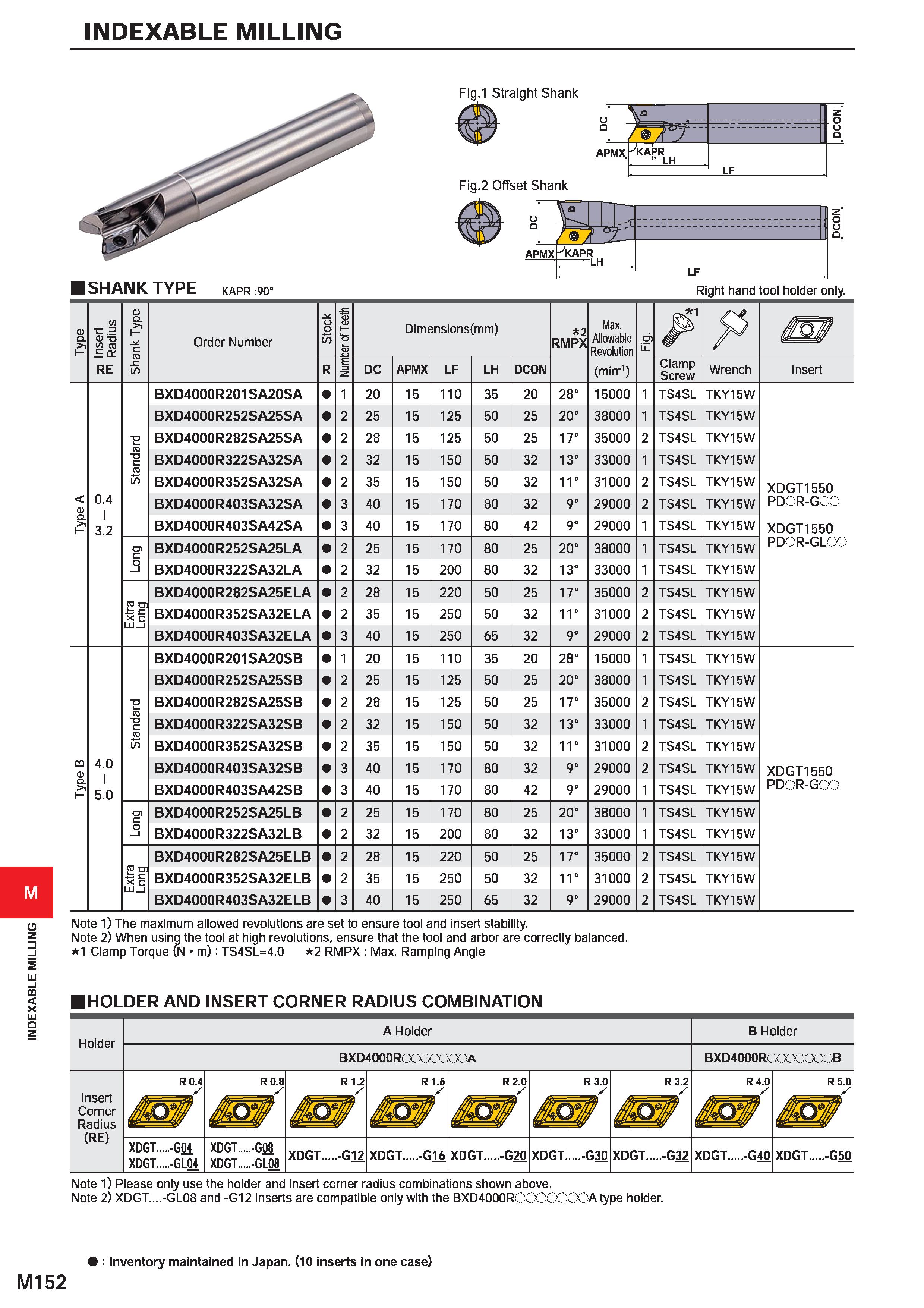

INDEXABLE MILLING INDEXABLE MILLING Fig.l Straight Shank ISHANKTYPE KAPR :90" nsert Radius Shank Type Order Number Stock 5 L> 1 O o5 Dimensions(mm) 2 RMPX Max. Allowable Revolution d) Ll. P RE R E =j DC APMX LF LH DCON (min-1) Clamp Screw Wrench BXD4000R201SA20SA 1 20 15 110 35 20 28° 15000 1 TS4SL TKY15W BXD4000R252SA25SA 2 25 15 125 50 25 20° 38000 1 TS4SL TKY15W TD 1 TO O C BXD4000R282SA25SA 2 28 15 125 50 25 17° 35000 2 TS4SL TKY15W BXD4000R322SA32SA 2 32 15 150 50 32 13° 33000 1 TS4SL TKY15W 75 BXD4000R352SA32SA 2 35 15 150 50 32 11° 31000 2 TS4SL TKY15W 0.4 BXD4000R403SA32SA 3 40 15 170 80 32 9° 29000 2 TS4SL TKY15W 3.2 BXD4000R403SA42SA 3 40 15 170 80 42 9° 29000 1 TS4SL TKY15W O) c BXD4000R252SA25LA 2 25 15 170 80 25 20° 38000 1 TS4SL TKY15W o I BXD4000R322SA32LA 2 32 15 200 80 32 13° 33000 1 TS4SL TKY15W TO £T C x o BXD4000R282SA25ELA 2 28 15 220 50 25 17° 35000 2 TS4SL TKY15W BXD4000R352SA32ELA 2 35 15 250 50 32 11° 31000 2 TS4SL TKY15W BXD4000R403SA32ELA 3 40 15 250 65 32 9° 29000 2 TS4SL TKY15W BXD4000R201SA20SB 1 20 15 110 35 20 28° 15000 1 TS4SL TKY15W BXD4000R252SA25SB 2 25 15 125 50 25 20° 38000 1 TS4SL TKY15W O 1 TO "O c BXD4000R282SA25SB 2 28 15 125 50 25 17° 35000 2 TS4SL TKY15W BXD4000R322SA32SB 2 32 15 150 50 32 13° 33000 1 TS4SL TKY15W 7) BXD4000R352SA32SB 2 35 15 150 50 32 11° 31000 2 TS4SL TKY15W 4.0 BXD4000R403SA32SB 3 40 15 170 80 32 9° 29000 2 TS4SL TKY15W 5.0 BXD4000R403SA42SB 3 40 15 170 80 42 9° 29000 1 TS4SL TKY15W 05 C BXD4000R252SA25LB 2 25 15 170 80 25 20° 38000 1 TS4SL TKY15W o I BXD4000R322SA32LB 2 32 15 200 80 32 13° 33000 1 TS4SL TKY15W TO U X BXD4000R282SA25ELB 2 28 15 220 50 25 17° 35000 2 TS4SL TKY15W BXD4000R352SA32ELB 2 35 15 250 50 32 11° 31000 2 TS4SL TKY15W BXD4000R403SA32ELB 3 40 15 250 65 32 9° 29000 2 TS4SL TKY15W Right hand tool holder only. Insert XDGT1550 PDOR-GOC XDGT1550 PDOR-GLO XDGT1550 PDOR-GCO Note 1) The maximum allowed revolutions are set to ensure Note 2) When using the tool at high revolutions, ensure that 1 Clamp Torque (N m): TS4SL=4.0 2 RMPX : Max. tool and insert stability. the tool and arbor are correctly balanced. Ramping Angle I HOLDER AND INSERT CORNER RADIUS COMBINATION Holder A Holder B Holder BXD4000ROOOOOOOA BXD4000RCCOOOCOB Insert Corner Radius (RE) R 0.4 / R 0.8 / R 1.2 / R 1.6 / R 2.0 / R 3.0 / R 3.2 / R 4.0 / R 5.0 / iQjy JP51F XDGT -G04 XDGT -GL04 XDGT -G08 XDGT -GL08 XDGT -G12 XDGT -G14 XDGT -G2Q XDGT -G3Q XDGT -G31 XDGT -G4Q XDGT -G Q Note 1) Please only use the holder and insert corner radius combinations shown above. Note 2) XDGT....-GL08 and -G12 inserts are compatible only with the BXD4000ROOOOOOOA type holder. : Inventory maintained in Japan. (10 inserts in one case) M152
