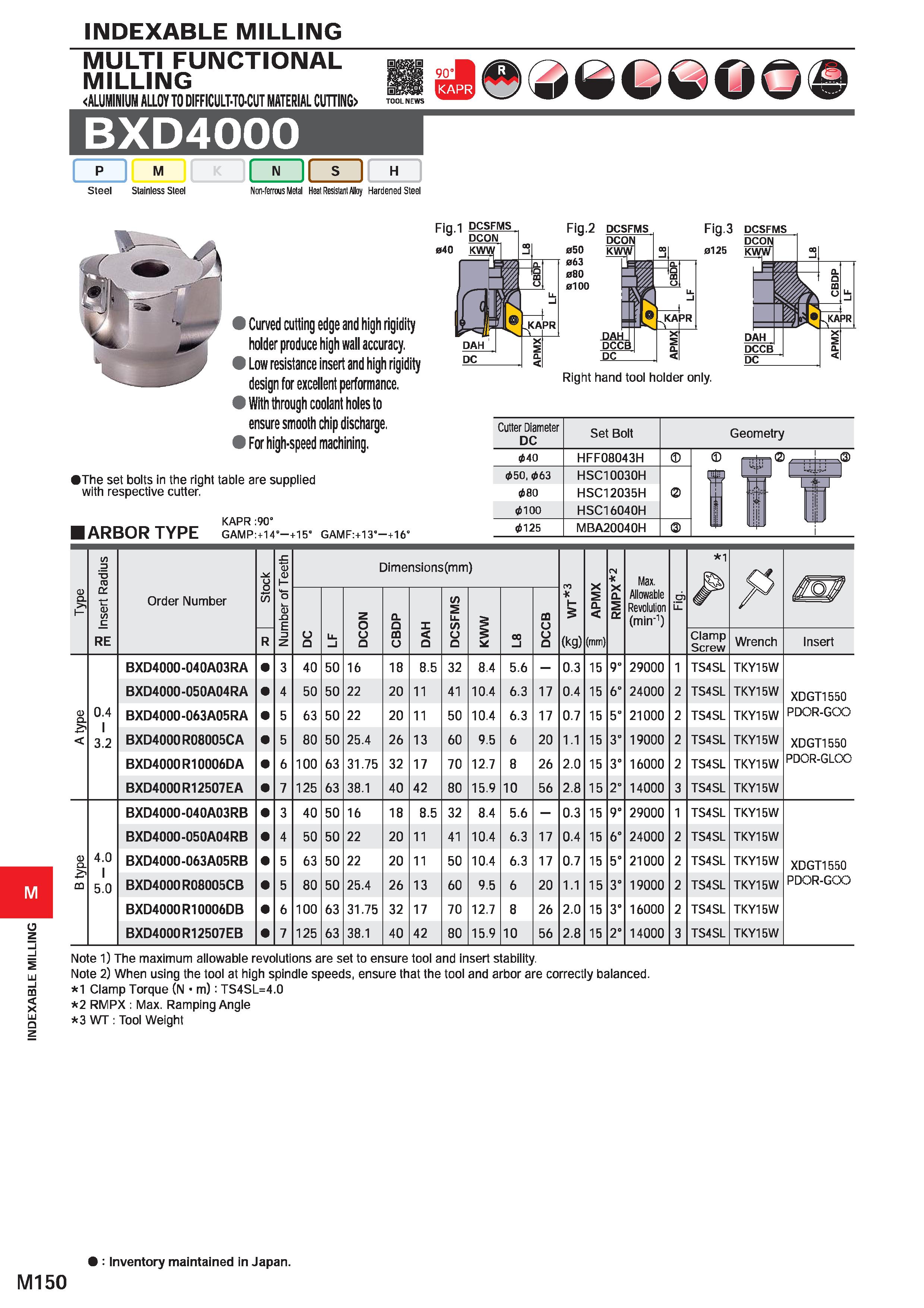

INDEXABLE MILLING INDEXABLE MILLING MULTI FUNCTIONAL MILLING ALUMINIUM ALLOY TO DIFFICULT-TO-CUT MATERIAL CUTTING) BXD4000 aims TOOL NEWS p M I N I S II H Fig 1 DCSFMS a' DCON 040 Fig.2 dcsfms l Curved cutting edge and high rigidity holder produce high wall accuracy. I Low resistance insert and high rigidity design for excellent performance. I With through coolant holes to ensure smooth chip discharge. I For high-speed machining. Fig.3 dcsfms DCON 0125 Right hand tool holder only. The set bolts in the right table are supplied with respective cutter. I ARBOR TYPE KAPR :90° GAMP:+14° +15" GAMF:+13"-+16° Type n Insert Radius Order Number Stock Number of Teeth Dimensions(mm) ro I- g (kg) X 5 Q. (mm) CM X 0. s DC Max. Allowable Revolution (min-1) D) Ll. 1 >5 m o Q Li. l DCON CBDP DAH DCSFMS KWW i DCCB R Clamp Screw Wrench Insert BXD4000-040A03RA 3 40 50 16 18 8.5 32 8.4 5.6 - 0.3 15 9° 29000 1 TS4SL TKY15W BXD4000-050A04RA 4 50 50 22 20 11 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W XDGT1550 1) Q. 0.4 BXD4000-063A05 RA 5 63 50 22 20 11 50 10.4 6.3 17 0.7 15 5° 21000 2 TS4SL TKY15W PDOR-GOO 3.2 BXD4000 R08005CA 5 80 50 25.4 26 13 60 9.5 6 20 1.1 15 3° 19000 2 TS4SL TKY15W XDGT1550 BXD4000 R10006DA 6 100 63 31.75 32 17 70 12.7 8 26 2.0 15 3° 16000 2 TS4SL TKY15W PDQR-GLOO BXD4000R12507EA 7 125 63 38.1 40 42 80 15.9 10 56 2.8 15 2° 14000 3 TS4SL TKY15W BXD4000-040A03RB 3 40 50 16 18 8.5 32 8.4 5.6 - 0.3 15 9° 29000 1 TS4SL TKY15W BXD4000-050A04RB 4 50 50 22 20 11 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W 0) Q. 4.0 BXD4000-063A05RB 5 63 50 22 20 11 50 10.4 6.3 17 0.7 15 5° 21000 2 TS4SL TKY15W XDGT1550 CQ 5.0 BXD4000 R08005CB 5 80 50 25.4 26 13 60 9.5 6 20 1.1 15 3° 19000 2 TS4SL TKY15W PDOR-GOO BXD4000R10006DB 6 100 63 31.75 32 17 70 12.7 8 26 2.0 15 3° 16000 2 TS4SL TKY15W BXD4000R12507EB 7 125 63 38.1 40 42 80 15.9 10 56 2.8 15 2° 14000 3 TS4SL TKY15W Note 1) The maximum allowable revolutions are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. 1 Clamp Torque (N m): TS4SL=4.0 2 RMPX : Max. Ramping Angle 3 WT : Tool Weight : Inventory maintained in Japan. M150
