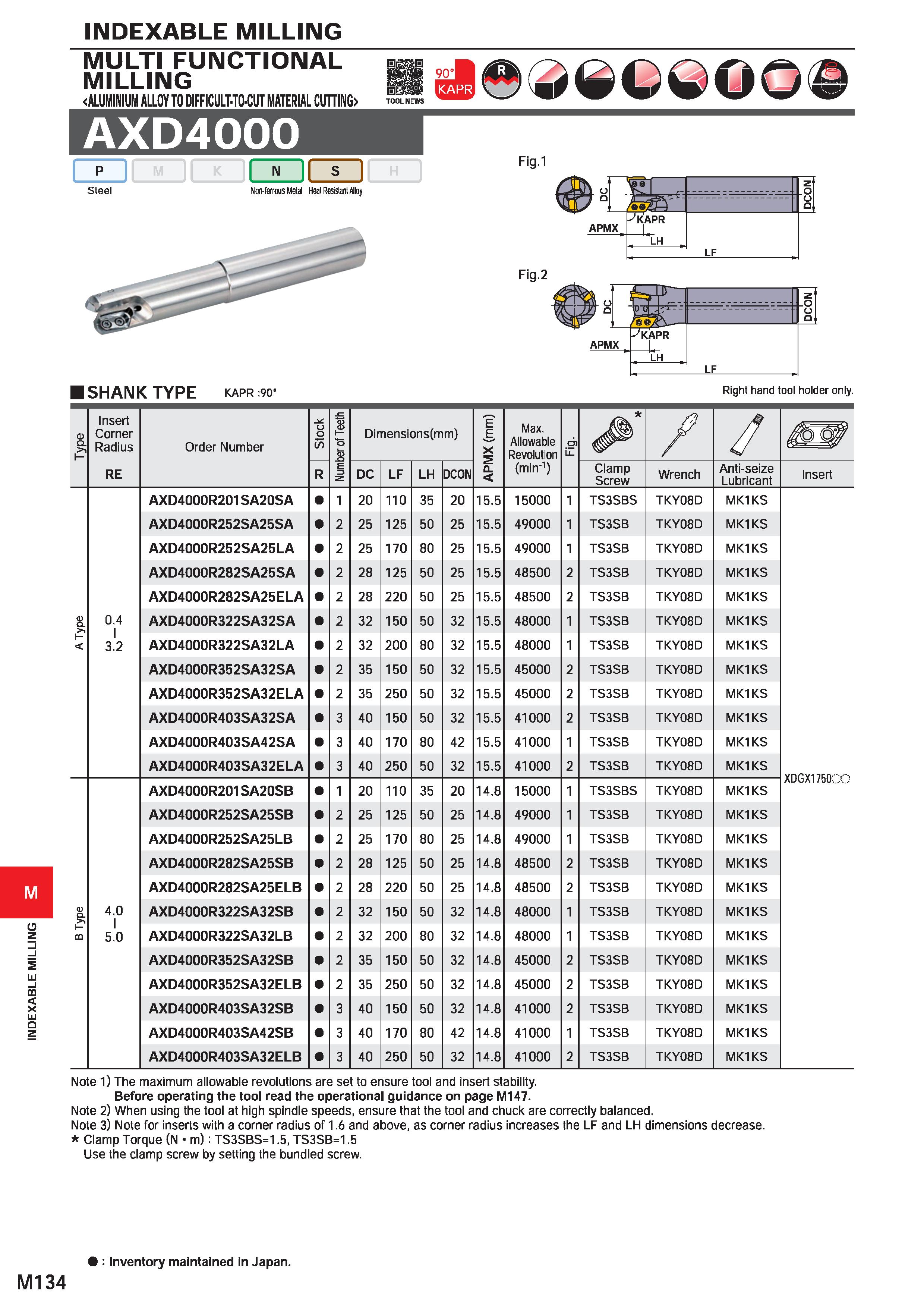

1290 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.M134

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. M134 1290 Lab2u

INDEXABLE MILLING MULTI FUNCTIONAL MILLING ALUMINIUM ALLOY TO DIFFICULT-TO-CUT MATERIAL CUTTING) AXD4000 Biissaa EiLfSw TOOL NEWS p ir i n if Fig.l Steel Non-ferrous Metal Heat Resistant Alloy - DCON faff APMX - KAPR I. LH LF Fig.2 APMX -''KAPR LH LF SHANK TYPE KAPR 90- Right hand tool holder only. Type Insert Corner Radius RE Order Number u o (7) Number ofTeeth Dimensions(mm) "e E, X 5 0. Max. Allowable Revolution (min'1) d) Ll. / / R DC LF LH DCON Clamp Screw Wrench Anti-seize Lubricant AXD4000R201SA20SA i 20 110 35 20 15.5 15000 1 TS3SBS TKY08D MK1KS AXD4000R252SA25SA 2 25 125 50 25 15.5 49000 1 TS3SB TKY08D MK1 KS AXD4000R252SA25LA 2 25 170 80 25 15.5 49000 1 TS3SB TKY08D MK1 KS AXD4000R282SA25SA 2 28 125 50 25 15.5 48500 2 TS3SB TKY08D MK1 KS AXD4000R282SA25 E LA 2 28 220 50 25 15.5 48500 2 TS3SB TKY08D MK1 KS D CL 0.4 I AXD4000R322SA32SA 2 32 150 50 32 15.5 48000 1 TS3SB TKY08D MK1 KS 1 i 3.2 AXD4000R322SA32LA 2 32 200 80 32 15.5 48000 1 TS3SB TKY08D MK1 KS AXD4000R352SA32SA 2 35 150 50 32 15.5 45000 2 TS3SB TKY08D MK1 KS AXD4000R352SA32ELA 2 35 250 50 32 15.5 45000 2 TS3SB TKY08D MK1 KS AXD4000R403SA32SA 3 40 150 50 32 15.5 41000 2 TS3SB TKY08D MK1 KS AXD4000R403SA42SA 3 40 170 80 42 15.5 41000 1 TS3SB TKY08D MK1 KS AXD4000R403SA32ELA 3 40 250 50 32 15.5 41000 2 TS3SB TKY08D MK1 KS AXD4000R201SA20SB 1 20 110 35 20 14.8 15000 1 TS3SBS TKY08D MK1 KS AXD4000R252SA25SB 2 25 125 50 25 14.8 49000 1 TS3SB TKY08D MK1 KS AXD4000R252SA25LB 2 25 170 80 25 14.8 49000 1 TS3SB TKY08D MK1 KS AXD4000R282SA25SB 2 28 125 50 25 14.8 48500 2 TS3SB TKY08D MK1 KS AXD4000R282SA25ELB 2 28 220 50 25 14.8 48500 2 TS3SB TKY08D MK1 KS U CL >i 4.0 1 AXD4000R322SA32SB 2 32 150 50 32 14.8 48000 1 TS3SB TKY08D MK1 KS H CQ 5.0 AXD4000R322SA32LB 2 32 200 80 32 14.8 48000 1 TS3SB TKY08D MK1 KS AXD4000R352SA32SB 2 35 150 50 32 14.8 45000 2 TS3SB TKY08D MK1 KS AXD4000R352SA32ELB 2 35 250 50 32 14.8 45000 2 TS3SB TKY08D MK1 KS AXD4000R403SA32SB 3 40 150 50 32 14.8 41000 2 TS3SB TKY08D MK1 KS AXD4000R403SA42SB 3 40 170 80 42 14.8 41000 1 TS3SB TKY08D MK1 KS AXD4000R403SA32ELB 3 40 250 50 32 14.8 41000 2 TS3SB TKY08D MK1 KS Insert XDGX175000 Note 1) The maximum allowable revolutions are set to ensure tool and insert stability, Before operating the tool read the operational guidance on page M147. Note 2) When using the tool at high spindle speeds, ensure that the tool and chuck are correctly balanced. Note 3) Note for inserts with a corner radius of 1.6 and above, as corner radius increases the LF and LH dimensions decrease. Clamp Torque (N m): TS3SBS=1.5, TS3SB=1.5 Use the clamp screw by setting the bundled screw. : Inventory maintained in Japan.
