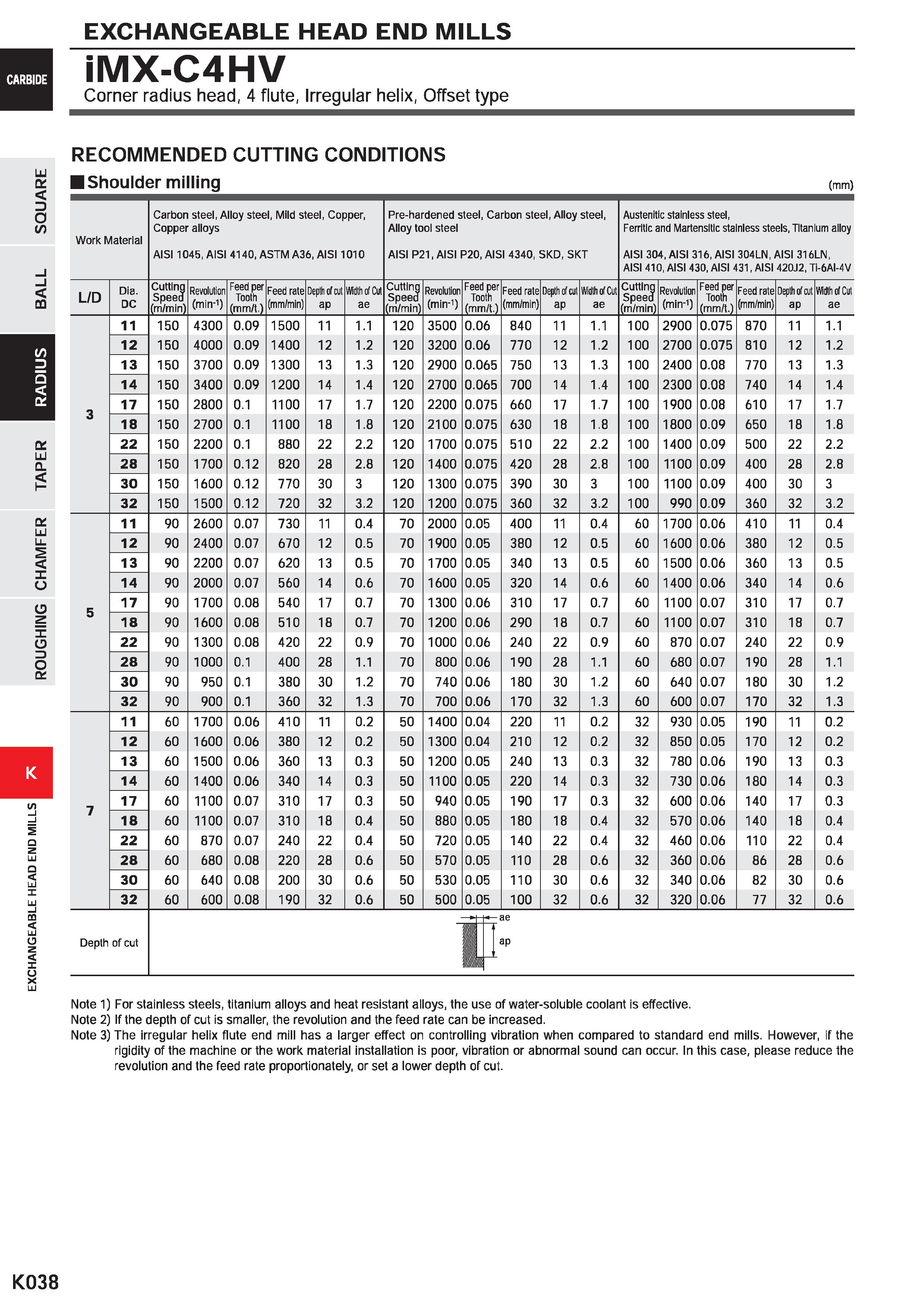

EXCHANGEABLE HEAD END MILLS iMX-C4HV Corner radius head, 4 flute, Irregular helix, Offset type LU D o 10 m RECOMMENDED CUTTING CONDITIONS Shoulder milling (mm) Work Material Carbon steel, Alloy steel, Mild steel, Copper, Copper alloys AISI 1045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT L/D Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 11 150 4300 0.09 1500 11 1.1 120 3500 0.06 840 11 1.1 100 2900 0.075 870 11 1.1 12 150 4000 0.09 1400 12 1.2 120 3200 0.06 770 12 1.2 100 2700 0.075 810 12 1.2 13 150 3700 0.09 1300 13 1.3 120 2900 0.065 750 13 1.3 100 2400 0.08 770 13 1.3 14 150 3400 0.09 1200 14 1.4 120 2700 0.065 700 14 1.4 100 2300 0.08 740 14 1.4 3 17 150 2800 0.1 1100 17 1.7 120 2200 0.075 660 17 1.7 100 1900 0.08 610 17 1.7 18 150 2700 0.1 1100 18 1.8 120 2100 0.075 630 18 1.8 100 1800 0.09 650 18 1.8 22 150 2200 0.1 880 22 2.2 120 1700 0.075 510 22 2.2 100 1400 0.09 500 22 2.2 28 150 1700 0.12 820 28 2.8 120 1400 0.075 420 28 2.8 100 1100 0.09 400 28 2.8 30 150 1600 0.12 770 30 3 120 1300 0.075 390 30 3 100 1100 0.09 400 30 3 32 150 1500 0.12 720 32 3.2 120 1200 0.075 360 32 3.2 100 990 0.09 360 32 3.2 11 90 2600 0.07 730 11 0.4 70 2000 0.05 400 11 0.4 60 1700 0.06 410 11 0.4 12 90 2400 0.07 670 12 0.5 70 1900 0.05 380 12 0.5 60 1600 0.06 380 12 0.5 13 90 2200 0.07 620 13 0.5 70 1700 0.05 340 13 0.5 60 1500 0.06 360 13 0.5 14 90 2000 0.07 560 14 0.6 70 1600 0.05 320 14 0.6 60 1400 0.06 340 14 0.6 5 17 90 1700 0.08 540 17 0.7 70 1300 0.06 310 17 0.7 60 1100 0.07 310 17 0.7 18 90 1600 0.08 510 18 0.7 70 1200 0.06 290 18 0.7 60 1100 0.07 310 18 0.7 22 90 1300 0.08 420 22 0.9 70 1000 0.06 240 22 0.9 60 870 0.07 240 22 0.9 28 90 1000 0.1 400 28 1.1 70 800 0.06 190 28 1.1 60 680 0.07 190 28 1.1 30 90 950 0.1 380 30 1.2 70 740 0.06 180 30 1.2 60 640 0.07 180 30 1.2 32 90 900 0.1 360 32 1.3 70 700 0.06 170 32 1.3 60 600 0.07 170 32 1.3 11 60 1700 0.06 410 11 0.2 50 1400 0.04 220 11 0.2 32 930 0.05 190 11 0.2 12 60 1600 0.06 380 12 0.2 50 1300 0.04 210 12 0.2 32 850 0.05 170 12 0.2 13 60 1500 0.06 360 13 0.3 50 1200 0.05 240 13 0.3 32 780 0.06 190 13 0.3 14 60 1400 0.06 340 14 0.3 50 1100 0.05 220 14 0.3 32 730 0.06 180 14 0.3 7 17 60 1100 0.07 310 17 0.3 50 940 0.05 190 17 0.3 32 600 0.06 140 17 0.3 18 60 1100 0.07 310 18 0.4 50 880 0.05 180 18 0.4 32 570 0.06 140 18 0.4 22 60 870 0.07 240 22 0.4 50 720 0.05 140 22 0.4 32 460 0.06 110 22 0.4 28 60 680 0.08 220 28 0.6 50 570 0.05 110 28 0.6 32 360 0.06 86 28 0.6 30 60 640 0.08 200 30 0.6 50 530 0.05 110 30 0.6 32 340 0.06 82 30 0.6 32 60 600 0.08 190 32 0.6 50 500 0.05 100 32 0.6 32 320 0.06 77 32 0.6 Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloy AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2, Ti-6AI-4V LlI Q. X (J 3 o DC 5 Q Z LU LlI X LU l CQ LU 0 z 1 u X LU Depth of cut h h ae Pp Note 1) For stainless steels, titanium alloys and heat resistant alloys, the use of water-soluble coolant is effective. Note 2) If the depth of cut is smaller, the revolution and the feed rate can be increased. Note 3) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the work material installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and the feed rate proportionately, or set a lower depth of cut. K038
