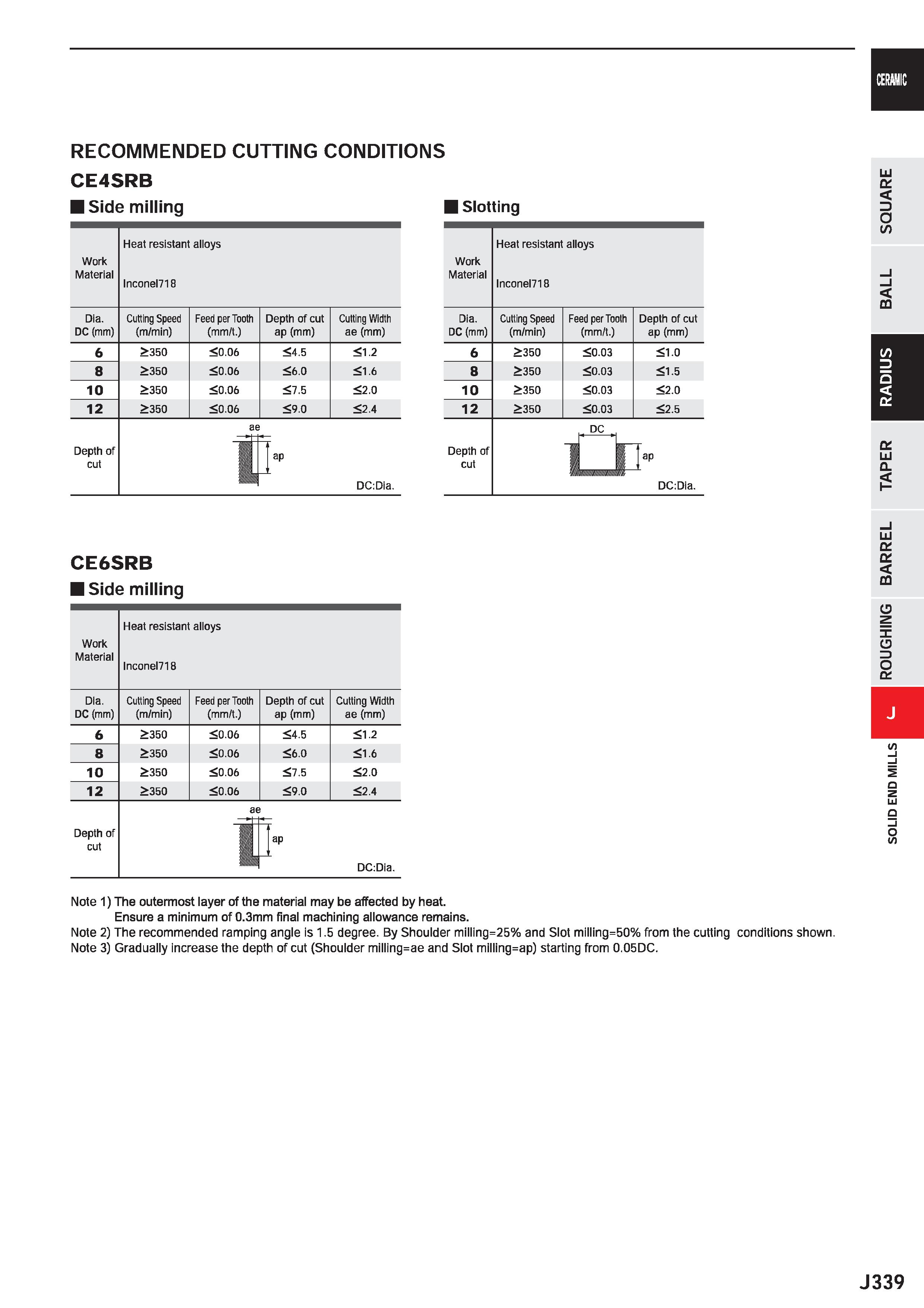

CERAMIC RECOMMENDED CUTTING CONDITIONS CE4SRB Side milling Slotting Work Material Heat resistant alloys lnconel718 Dia. Cutting Speed Feed per Tooth Depth of cut DC (mm) (m/min) (mm/t.) ap (mm) 6 >350 0.03 1.0 8 >350 0.03 1.5 10 >350 0.03 2.0 12 >350 0.03 2.5 Depth of cut DC jap DC:Dia. Work Material Heat resistant alloys lnconel718 Dia. DC (mm) Cutting Speed (m/min) Feed per Tooth (mm/t.) Depth of cut ap (mm) Cutting Width ae (mm) 6 >350 0.06 4.5 1.2 8 >350 0.06 6.0 1.6 10 >350 0.06 7.5 2.0 12 >350 0.06 9.0 2.4 Depth of cut ae DC:Dia. 1 ap CE6SRB Side milling Work Material Heat resistant alloys lnconel718 Dia. Cutting Speed Feed per Tooth Depth of cut Cutting Width DC (mm) (m/min) (mm/t.) ap (mm) ae (mm) 6 >350 0.06 4.5 1.2 8 >350 0.06 6.0 1.6 10 £350 0.06 7.5 2.0 12 >350 0.06 9.0 2.4 Depth of cut DC:Dia. O /> Note 1) The outermost layer of the material may be affected by heat. Ensure a minimum of 0.3mm final machining allowance remains. Note 2) The recommended ramping angle is 1.5 degree. By Shoulder milling=25% and Slot milling=50% from the cutting conditions shown. Note 3) Gradually increase the depth ofcut (Shoulder milling=ae and Slot milling=ap) starting from 0.05DC. J339 ROUGHING BARREL TAPER rlilrillfcM BALL SQUARE
