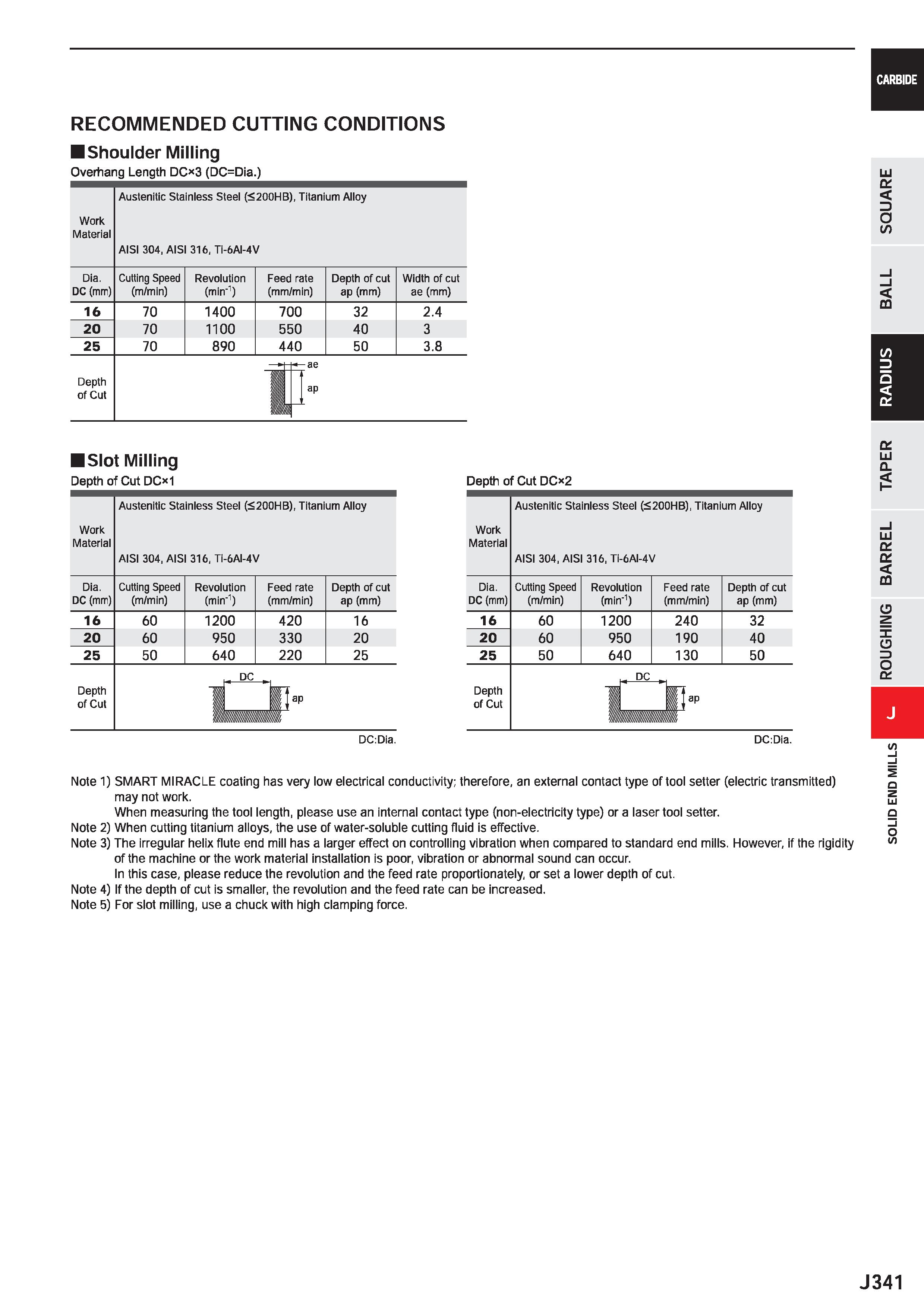

CARBIDE RECOMMENDED CUTTING CONDITIONS Shoulder Milling Overhang Length DC 3 (DC=Dia.) Work Material Depth of Cut Austenitic Stainless Steel (<200HB), Titanium Alloy AISI 304, AISI 316, Ti-6AI-4V Dia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (mm/min) Depth of cut ap (mm) Width of cut ae (mm) 16 70 1400 700 32 2.4 20 70 1100 550 40 3 25 70 890 440 50 3.8 Slot Milling Depth of Cut DCx1 Work Material Depth of Cut Austenitic Stainless Steel (<200HB), Titanium Alloy AISI 304, AISI 316, Ti-6AI-4V Dia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (mm/min) Depth of cut ap (mm) 16 60 1200 420 16 20 60 950 330 20 25 50 640 220 25 Depth of Cut DCx2 Work Material Austenitic Stainless Steel (<200HB), Titanium Alloy AISI 304, AISI 316, Ti-6AI-4V Dia. Cutting Speed Revolution Feed rate Depth of cut DC (mm) (m/min) (min'1) (mm/min) ap (mm) 16 60 1200 240 32 20 60 950 190 40 25 50 640 130 50 Depth of Cut DC w ap mm DC: Dia. DC:Dia. Note 1) SMART MIRACLE coating has very low electrical conductivity; therefore, an external contact type of tool setter (electric transmitted) may not work. When measuring the tool length, please use an internal contact type (non-electricity type) or a laser tool setter. Note 2) When cutting titanium alloys, the use of water-soluble cutting fluid is effective. Note 3) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the work material installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and the feed rate proportionately, or set a lower depth of cut. Note 4) If the depth of cut is smaller, the revolution and the feed rate can be increased. Note 5) For slot milling, use a chuck with high clamping force. o in J341 ROUGHING BARREL TAPER rlilrillfcM BALL SQUARE
