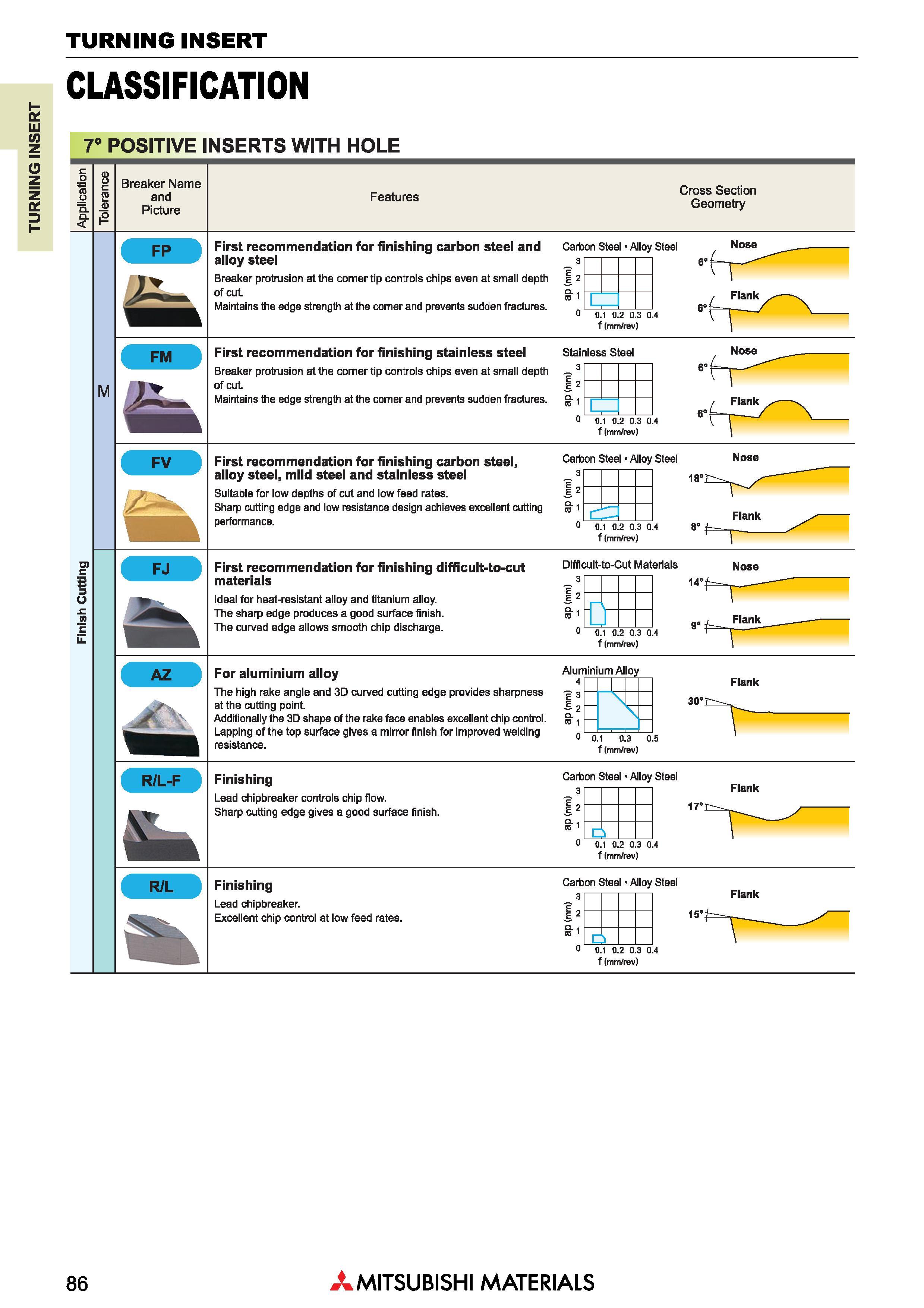

Токарные пластины Mitsubishi TURNING INSERT _ CLASSIFICATION 7° POSITIVE INSERTS WITH HOLE CL CL < Breaker Name and Picture Features Cross Section Geometry First recommendation for finishing carbon steel and alloy steel Breaker protrusion at the corner tip controls chips even at small depth of cut. Maintains the edge strength at the comer and prevents sudden fractures. Carbon Steel Alloy Steel 3T I2 Nose 0 0.1 0.2 0.3 0.4 f (mm/rev) M First recommendation for finishing stainless steel Breaker protrusion at the corner tip controls chips even at small depth of cut. Maintains the edge strength at the comer and prevents sudden fractures. Stainless Steel 3 I2 Nose 0 0.1 0.2 0.3 0.4 f (mm/rev) First recommendation for finishing carbon steel, alloy steel, mild steel and stainless steel Suitable for low depths of cut and low feed rates. Sharp cutting edge and low resistance design achieves excellent cutting performance. Carbon Steel Alloy Steel 3 I2 Nose 0 0.1 0.2 0.3 0.4 f (mm/rev) Flank O) c s S o -C /> First recommendation for finishing difficult-to-cut materials Ideal for heat-resistant alloy and titanium alloy. The sharp edge produces a good surface finish. The curved edge allows smooth chip discharge. Difficult-to-Cut Materials Nose I2 tu 0.1 0.2 0.3 0.4 f (mm/rev) 14°f For aluminium alloy The high rake angle and 3D curved cutting edge provides sharpness at the cutting point. Additionally the 3D shape of the rake face enables excellent chip control. Lapping of the top surface gives a mirror finish for improved welding resistance. Aluminium Alloy 4 3 Flank 0 0.1 0.3 0.5 f (mm/rev) Finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. Carbon Steel Alloy Steel 3T I2 Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) Finishing Lead chipbreaker. Excellent chip control at low feed rates. Carbon Steel Alloy Steel 3T I 2 Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) 86 Mitsubishi Materials
