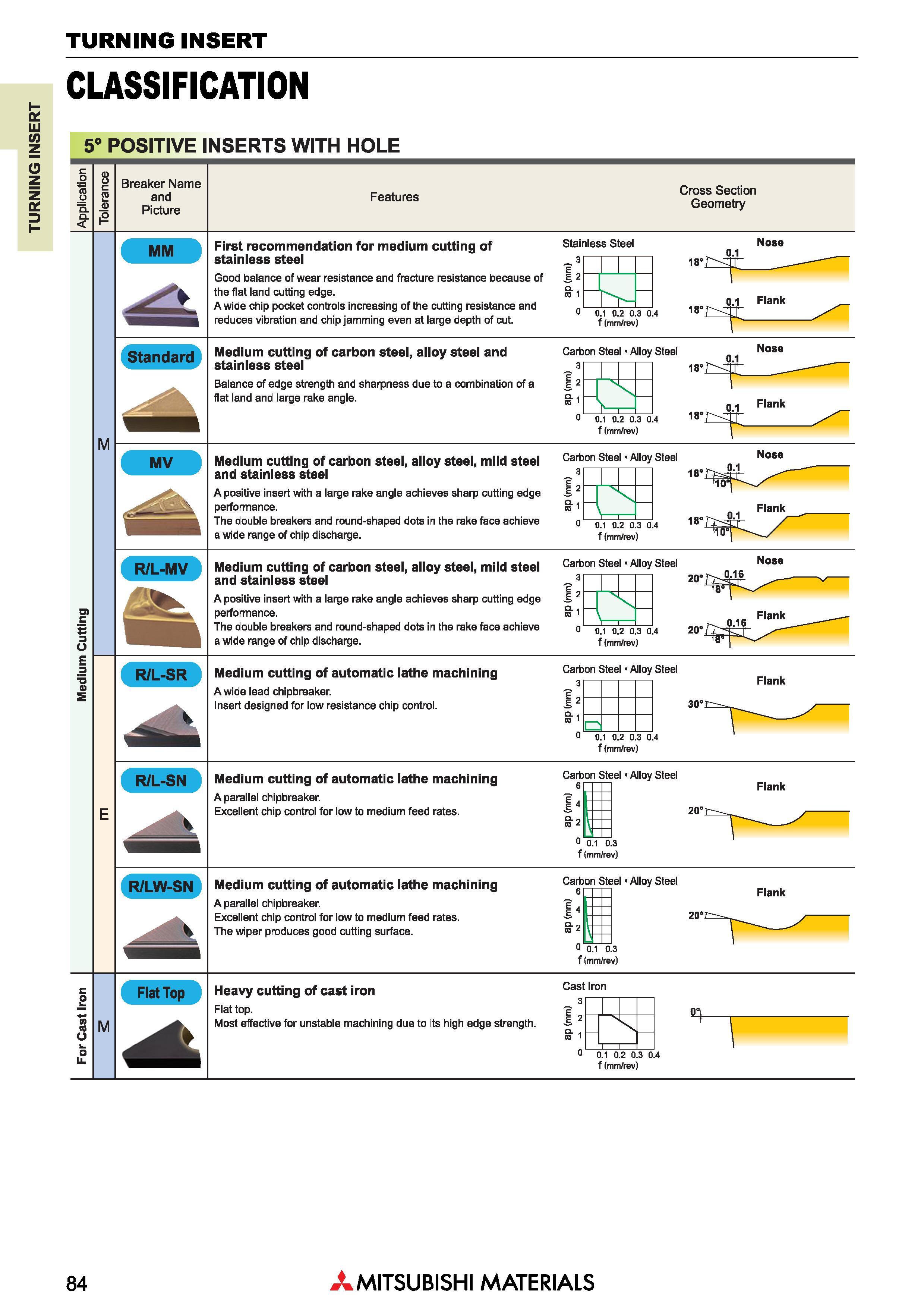

Токарные пластины Mitsubishi TURNING INSERT _ CLASSIFICATION 5° POSITIVE INSERTS WITH HOLE CL CL < Breaker Name and Picture Features Cross Section Geometry MM First recommendation for medium cutting of stainless steel Good balance of wear resistance and fracture resistance because of the flat land cutting edge. A wide chip pocket controls increasing of the cutting resistance and reduces vibration and chip jamming even at large depth of cut. Stainless Steel 3 1 E 2 0 0.1 0.2 0.3 0.4 f (mm/rev) 18' 18' Nose 0.1 Flank M Standard Medium cutting of carbon steel, alloy steel and stainless steel Balance of edge strength and sharpness due to a combination of a flat land and large rake angle. Carbon Steel Alloy Steel sr I 2 0 0.1 0.2 0.3 0.4 f (mm/rev) 18‘ 0.1 Nose Flank MV Medium cutting of carbon steel, alloy steel, mild steel and stainless steel A positive insert with a large rake angle achieves sharp cutting edge performance. The double breakers and round-shaped dots in the rake face achieve a wide range of chip discharge. Carbon Steel Alloy Steel 3 1 2 Nose I 1 I o 0.1 0.2 0.3 0.4 f (mm/rev) R/L-MV Medium cutting of carbon steel, alloy steel, mild steel and stainless steel A positive insert with a large rake angle achieves sharp cutting edge performance. The double breakers and round-shaped dots in the rake face achieve a wide range of chip discharge. Carbon Steel Alloy Steel 3 2 Nose 1 o 0.1 0.2 0.3 0.4 f (mm/rev) Medium cutting of automatic lathe machining A wide lead chipbreaker. Insert designed for low resistance chip control. Carbon Steel Alloy Steel 3 2 Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) Medium cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control for low to medium feed rates. Carbon Steel Alloy Steel 14 Flank 0 0.1 0.3 f (mm/rev) R/LW-SN Medium cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control for low to medium feed rates. The wiper produces good cutting surface. Carbon Steel Alloy Steel I4 &2 Flank 0 0.1 0.3 f (mm/rev) M Heavy cutting of cast iron Flat top. Most effective for unstable machining due to its high edge strength. Cast Iron 3 I 2 "4- o 0.1 0.2 0.3 0.4 f (mm/rev) 84 Mitsubishi Materials
