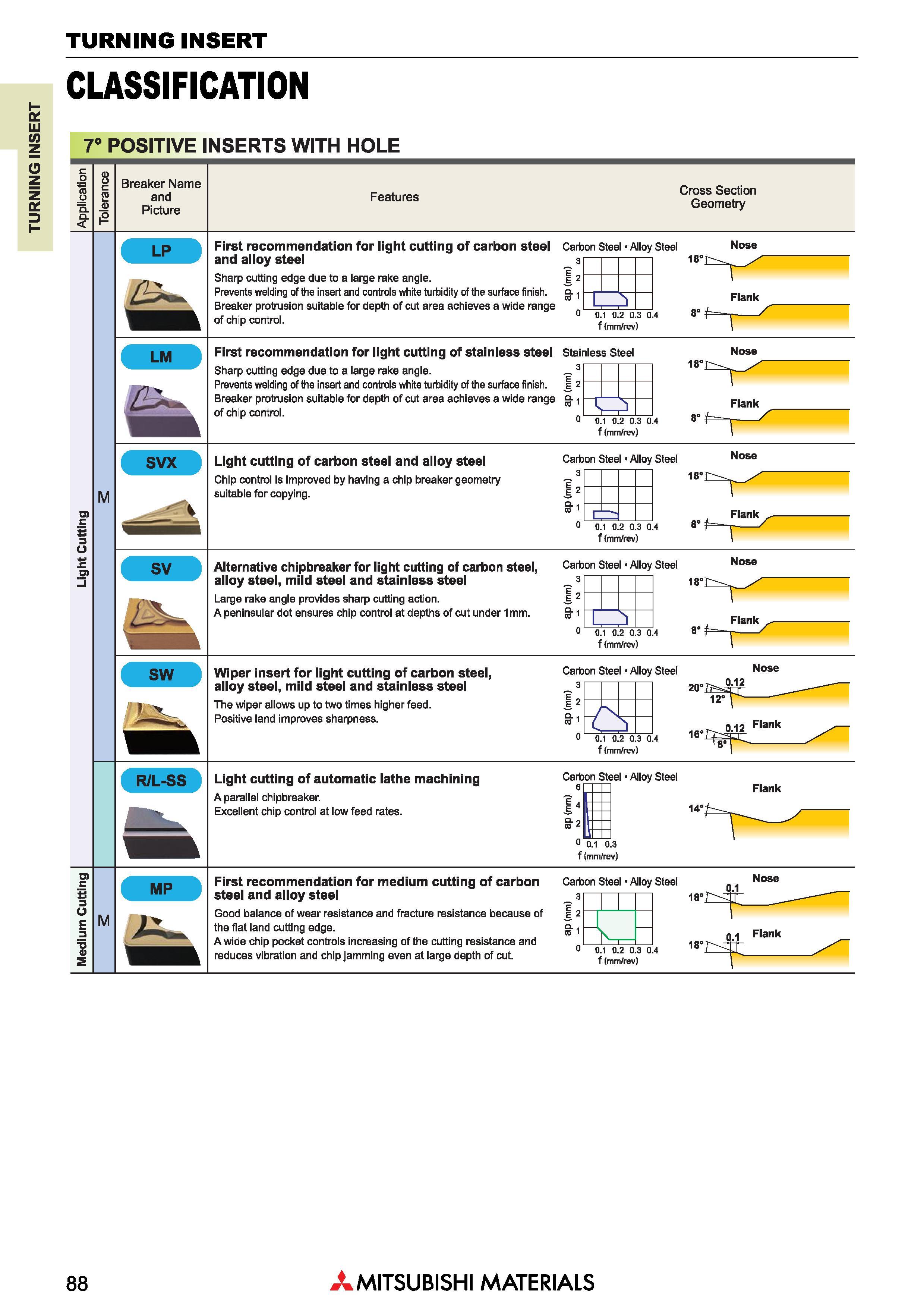

Токарные пластины Mitsubishi TURNING INSERT _ CLASSIFICATION 7° POSITIVE INSERTS WITH HOLE CL CL < Breaker Name and Picture Features Cross Section Geometry First recommendation for light cutting of carbon steel Carbon Steel Alloy Steel and alloy steel Sharp cutting edge due to a large rake angle. Prevents welding of the insert and controls white turbidity of the surface finish. Breaker protrusion suitable for depth of cut area achieves a wide range of chip control. Nose I 2 0 I 'l Flank 0.1 0.2 0.3 0.4 f (mm/rev) First recommendation for light cutting of stainless steel Sharp cutting edge due to a large rake angle. Prevents welding of the insert and controls white turbidity of the surface finish. Breaker protrusion suitable for depth of cut area achieves a wide range of chip control. Stainless Steel 3 I 2 Nose a 18° o 0.1 0.2 0.3 0.4 f (mm/rev) Flank M Light cutting of carbon steel and alloy steel Chip control is improved by having a chip breaker geometry suitable for copying. Carbon Steel Alloy Steel 3 I 2 Nose Ui c s 3 o 0.1 0.2 0.3 0.4 f (mm/rev) 8° Flank Alternative chipbreaker for light cutting of carbon steel, alloy steel, mild steel and stainless steel Large rake angle provides sharp cutting action. A peninsular dot ensures chip control at depths of cut under 1 mm. Carbon Steel Alloy Steel 3r I2 0 Nose I 'I 0.1 0.2 0.3 0.4 f (mm/rev) Flank sw Wiper insert for light cutting of carbon steel, alloy steel, mild steel and stainless steel The wiper allows up to two times higher feed. Positive land improves sharpness. Carbon Steel Alloy Steel 3r 0 0.1 0.2 0.3 0.4 f (mm/rev) 16' 0.12 Nose Flank Light cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control at low feed rates. Carbon Steel Alloy Steel Flank 0 0.1 0.3 f (mm/rev) O) c B S o M First recommendation for medium cutting of carbon steel and alloy steel Good balance of wear resistance and fracture resistance because of the flat land cutting edge. A wide chip pocket controls increasing of the cutting resistance and reduces vibration and chip jamming even at large depth of cut. Carbon Steel 3 I2 &1 0 Alloy Steel 0.1 0.2 0.3 0.4 f (mm/rev) 18' 18' Nose 0.1 Flank 88 Mitsubishi Materials
