Сборные расточные резцы Mitsubishi с режущими сменными пластинами BORING BARS

Сборные расточные резцы Mitsubishi с режущими сменными пластинами BORING BARS

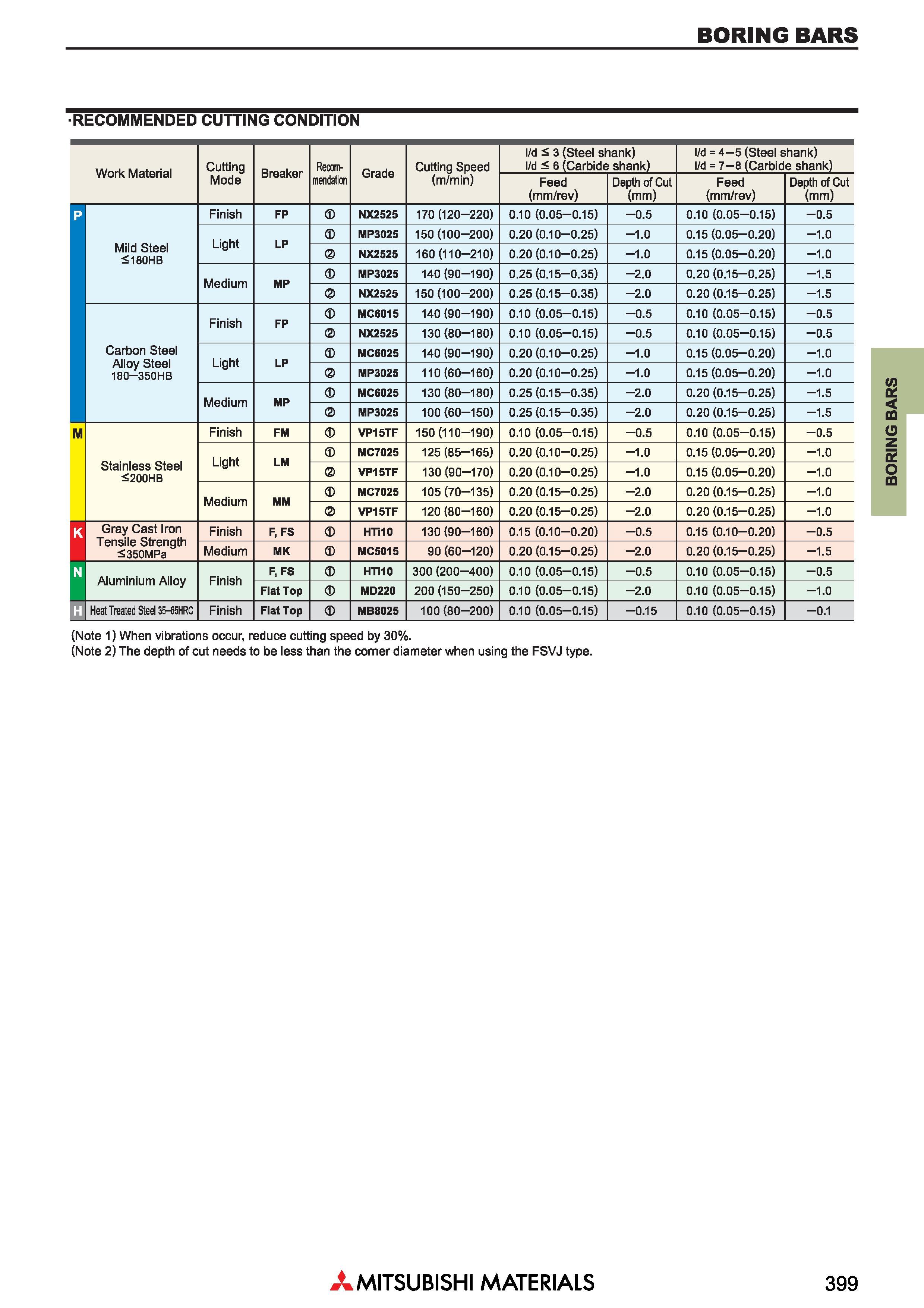

Сборные расточные резцы Mitsubishi с режущими сменными пластинами BORING BARS _ RECOMMENDED CUTTING CONDITION Обрабатываемые материалы Work Material Cutting Breaker Recom- Grade Cutting Speed l/d i 3 (Steel shank) l/d 6 (Carbide shank) l/d = 4 5 (Steel shank) l/d = 7 8 (Carbide shank) Mode mendation (m/min) Подача (мм/оборот) Feed (mm/rev) Глубина резания (мм) Depth of Cut (mm) Подача (мм/оборот) Feed (mm/rev) Глубина резания (мм) Depth of Cut (mm) p Finish FP ffl NX2525 170 (120-220) 0.10 (0.05-0.15) -0.5 0.10 (0.05-0.15) -0.5 Mild Steel <180HB Light LP ffl MP302S 150 (100-200) 0.20(0.10-0.25) -1.0 0.15 (0.05-0.20) -1.0 NX2525 160(110-210) 0.20(0.10-0.25) -1.0 0.15 (0.05-0.20) -1.0 Medium MP ffl MP3025 140 (90-190) 0.25(0.15-0.35) -2.0 0.20(0.15-0.25) -1.5 NX2525 150 (100-200) 0.25(0.15-0.35) -2.0 0.20(0.15-0.25) -1.5 Finish FP ffl MC6015 140 (90-190) 0.10 (0.05-0.15) -0.5 0.10 (0.05-0.15) -0.5 NX2525 130(80-180) 0.10 (0.05-0.15) -0.5 0.10 (0.05-0.15) -0.5 Carbon Steel Alloy Steel 180 350HB Light LP ffl MC6025 140 (90-190) 0.20(0.10-0.25) -1.0 0.15 (0.05-0.20) -1.0 MP3025 110(60-160) 0.20(0.10-0.25) -1.0 0.15 (0.05-0.20) -1.0 Medium MP ffl MC6025 130(80-180) 0.25(0.15-0.35) -2.0 0.20(0.15-0.25) -1.5 MP3025 100 (60-150) 0.25(0.15-0.35) -2.0 0.20(0.15-0.25) -1.5 M Finish FM ffl VP15TF 150 (110-190) 0.10 (0.05-0.15) -0.5 0.10 (0.05-0.15) -0.5 Stainless Steel <200HB Light LM ffl MC7025 125 (85-165) 0.20(0.10-0.25) -1.0 0.15 (0.05-0.20) -1.0 VP15TF 130(90-170) 0.20(0.10-0.25) -1.0 0.15 (0.05-0.20) -1.0 Medium MM ffl MC7025 105 (70-135) 0.20 (0.15-0.25) -2.0 0.20(0.15-0.25) -1.0 VP15TF 120 (80-160) 0.20 (0.15-0.25) -2.0 0.20(0.15-0.25) -1.0 K Gray Cast Iron Tensile Strength <350MPa Finish F, FS ffl HTilO 130(90-160) 0.15 (0.10-0.20) -0.5 0.15 (0.10-0.20) -0.5 Medium MK ffl MCS015 90 (60-120) 0.20 (0.15-0.25) -2.0 0.20(0.15-0.25) -1.5 D Aluminium Alloy Finish F,FS ffl HTilO 300 (200-400) 0.10 (0.05-0.15) -0.5 0.10 (0.05-0.15) -0.5 Flat Top ffl MD220 200 (150-250) 0.10 (0.05-0.15) -2.0 0.10 (0.05-0.15) -1.0 Heat Treated Steel 35-65HRC Finish Flat Top ffl MB8025 100 (80-200) 0.10 (0.05-0.15) -0.15 0.10 (0.05-0.15) -0.1 (Note 1) When vibrations occur, reduce cutting speed by 30%. (Note 2) The depth of cut needs to be less than the corner diameter when using the FSVJ type. Mitsubishi Materials 399 BORING BARS
