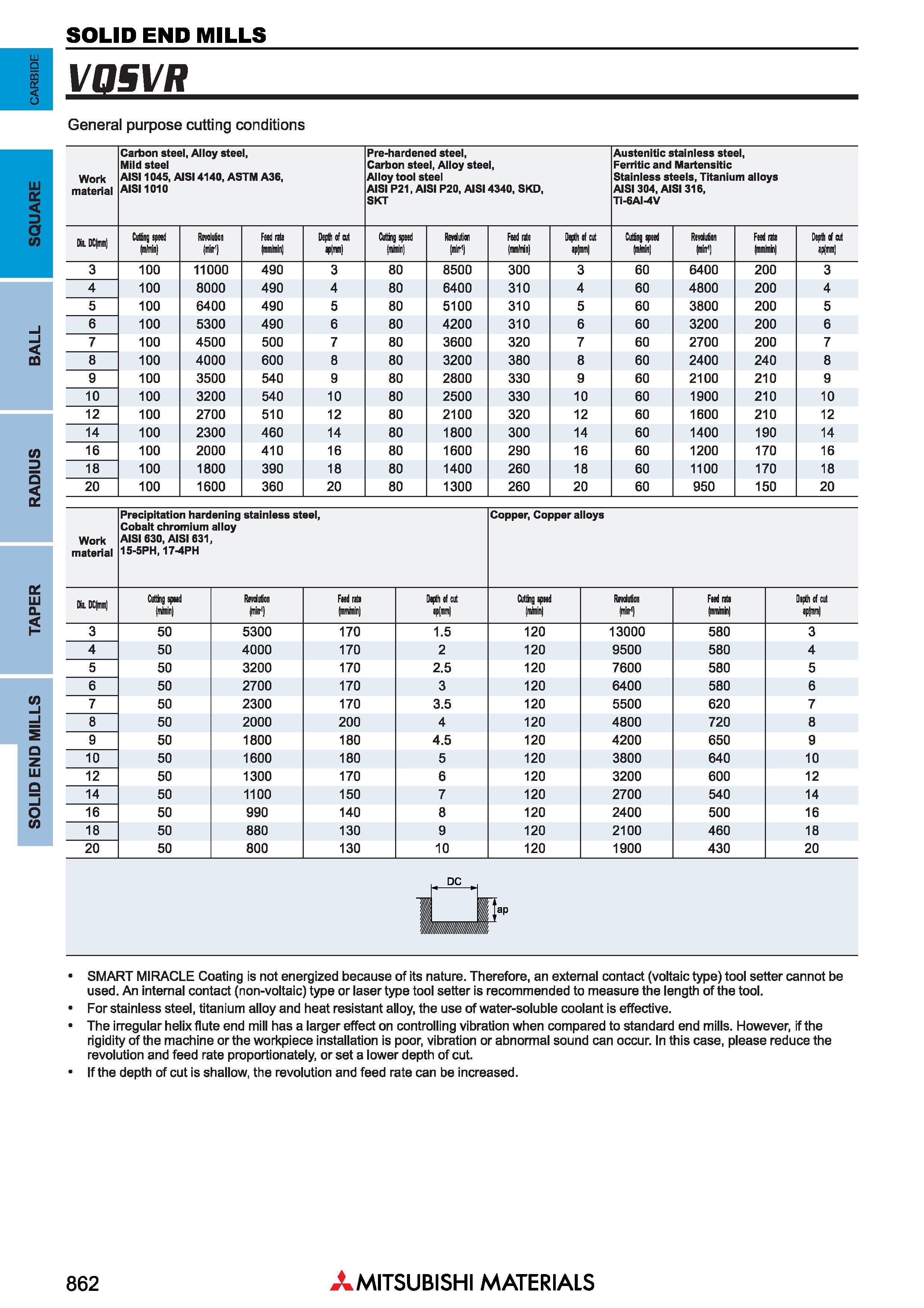

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ vasvR General purpose cutting conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140, ASTM A36, AISI1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic Stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V Cling speed Revoiulien Feed rate Depth of cut Cuttinj speed Rewtution Feed nte Depth of cut Cutting speed Revoiutien Feed nte Depth of cut (m/min (liit1 (mmlmin) vM (m/min (miir1 (rnn/mjn ip(mm (mtain) (miir') (mmlmii ipfmm 3 100 11000 490 3 80 8500 300 3 60 6400 200 3 4 100 8000 490 4 80 6400 310 4 60 4800 200 4 5 100 6400 490 5 80 5100 310 5 60 3800 200 5 6 100 5300 490 6 80 4200 310 6 60 3200 200 6 7 100 4500 500 7 80 3600 320 7 60 2700 200 7 8 100 4000 600 8 80 3200 380 8 60 2400 240 8 g 100 3500 540 9 80 2800 330 9 60 2100 210 9 10 100 3200 540 10 80 2500 330 10 60 1900 210 10 12 100 2700 510 12 80 2100 320 12 60 1600 210 12 14 100 2300 460 14 80 1800 300 14 60 1400 190 14 16 100 2000 410 16 80 1600 290 16 60 1200 170 16 18 100 1800 390 18 80 1400 260 18 60 1100 170 18 20 100 1600 360 20 80 1300 260 20 60 950 150 20 Work material Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631, 15-5PH, 17-4PH Copper, Copper alloys DiiDCH Ciittngspud (mimin Rsvdution (miir1) Feed rati (mmlmin D th of cut ip m Cuttoig spied (mimin Mutton fir1 Feednti (mmlmii Dipth of cut epM 3 50 5300 170 1.5 120 13000 580 3 4 50 4000 170 2 120 9500 580 4 5 50 3200 170 2.5 120 7600 580 5 6 50 2700 170 3 120 6400 580 6 7 50 2300 170 3.5 120 5500 620 7 8 50 2000 200 4 120 4800 720 8 9 50 1800 180 4.5 120 4200 650 9 10 50 1600 180 5 120 3800 640 10 12 50 1300 170 6 120 3200 600 12 14 50 1100 150 7 120 2700 540 14 16 50 990 140 8 120 2400 500 16 18 50 880 130 9 120 2100 460 18 20 50 800 130 10 120 1900 430 20 DC wm/m/M SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. If the depth of cut is shallow, the revolution and feed rate can be increased. 862 Mitsubishi Materials
