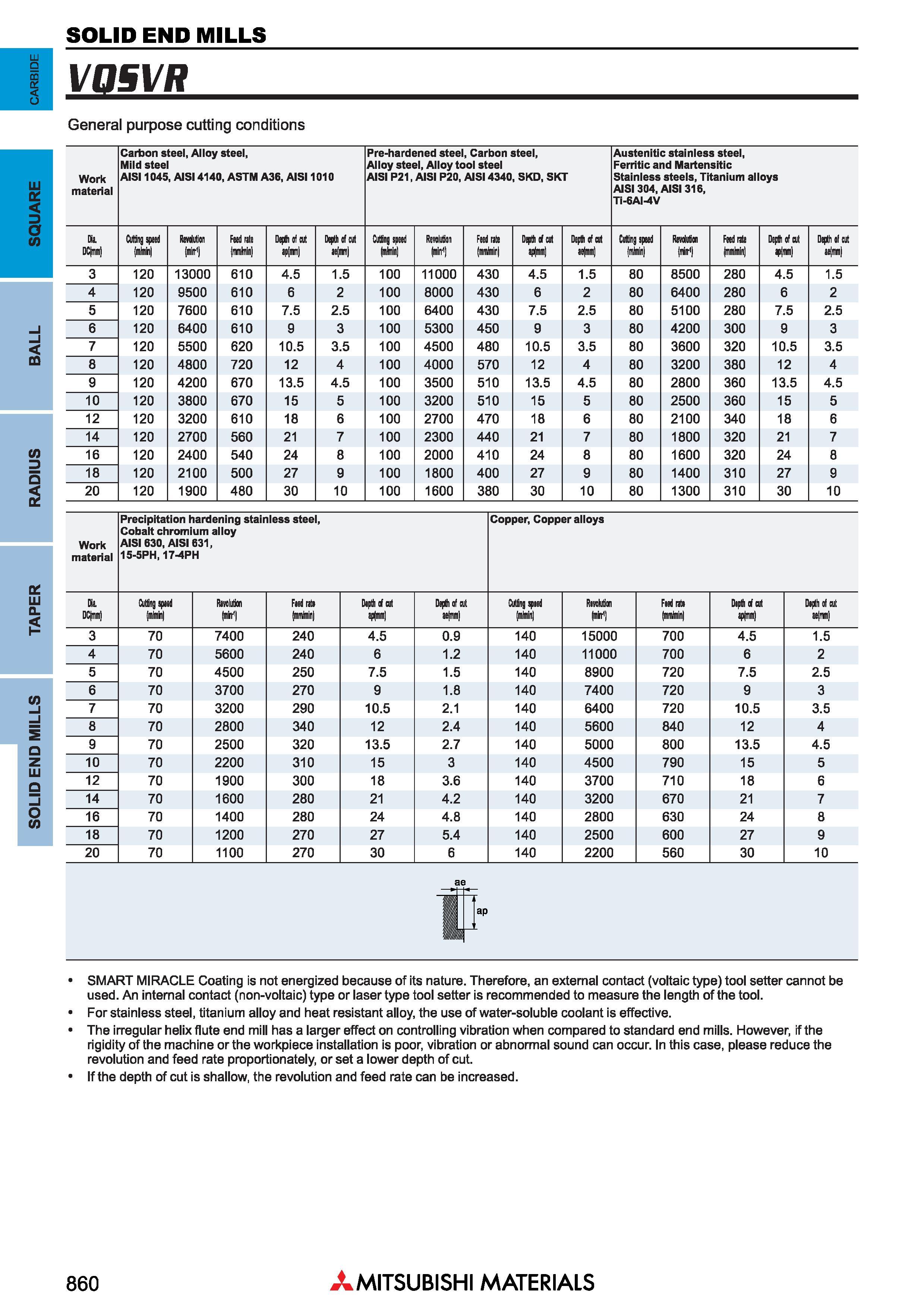

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ vgsvR General purpose cutting conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic Stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V Oil Cutting spied Million Feed nti Depth of cut Depth of cut Cutting spied Million Feedntt Depth of cut Depth of cut Cutting speed Million Feed rate Depth of cut Depth ol cut DC(mm) (mtoiin) (miir1) imMn) ap(nm) ie(imi (mtoiin) (miir1 (mmtoiin) ip)nm) ae(mmj (mtoiin) milt4) (mmlmin) ie(mn) 3 120 13000 610 4.5 1.5 100 11000 430 4.5 1.5 80 8500 280 4.5 1.5 4 120 9500 610 6 2 100 8000 430 6 2 80 6400 280 6 2 5 120 7600 610 7.5 2.5 100 6400 430 7.5 2.5 80 5100 280 7.5 2.5 6 120 6400 610 9 3 100 5300 450 9 3 80 4200 300 9 3 7 120 5500 620 10.5 3.5 100 4500 480 10.5 3.5 80 3600 320 10.5 3.5 8 120 4800 720 12 4 100 4000 570 12 4 80 3200 380 12 4 9 120 4200 670 13.5 4.5 100 3500 510 13.5 4.5 80 2800 360 13.5 4.5 10 120 3800 670 15 5 100 3200 510 15 5 80 2500 360 15 5 12 120 3200 610 18 6 100 2700 470 18 6 80 2100 340 18 6 14 120 2700 560 21 7 100 2300 440 21 7 80 1800 320 21 7 16 120 2400 540 24 8 100 2000 410 24 8 80 1600 320 24 8 18 120 2100 500 27 9 100 1800 400 27 9 80 1400 310 27 9 20 120 1900 480 30 10 100 1600 380 30 10 80 1300 310 30 10 Work material Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631, 15-5PH, 17-4PH Copper, Copper alloys DU. DCH Cutting spiad mini Ravoludon (mir'l Fied rad mm/min) Dipth of ait ipQnm) Depth of ait 1 1 Cutting spied (mtoiin) (mir1 Fied rad (mm/min) Dipth of ait ip)nm) Dipth af ait aejirm) 10 12 14 16 18 20 70 70 70 70 70 70 70 70 70 70 70 70 70 7400 240 5600 240 4500 250 3700 270 3200 290 2800 340 2500 320 2200 310 1900 300 1600 280 1400 280 1200 270 1100 270 4.5 6 7.5 9 10.5 12 13.5 15 18 21 24 27 30 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3 3.6 4.2 4.8 5.4 6 140 15000 700 140 11000 700 140 8900 720 140 7400 720 140 6400 720 140 5600 840 140 5000 800 140 4500 790 140 3700 710 140 3200 670 140 2800 630 140 2500 600 140 2200 560 4.5 6 7.5 9 10.5 12 13.5 15 18 21 24 27 30 1.5 2 2.5 3 3.5 4 4.5 5 6 7 8 9 10 SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. If the depth of cut is shallow, the revolution and feed rate can be increased. 860 Mitsubishi Materials
