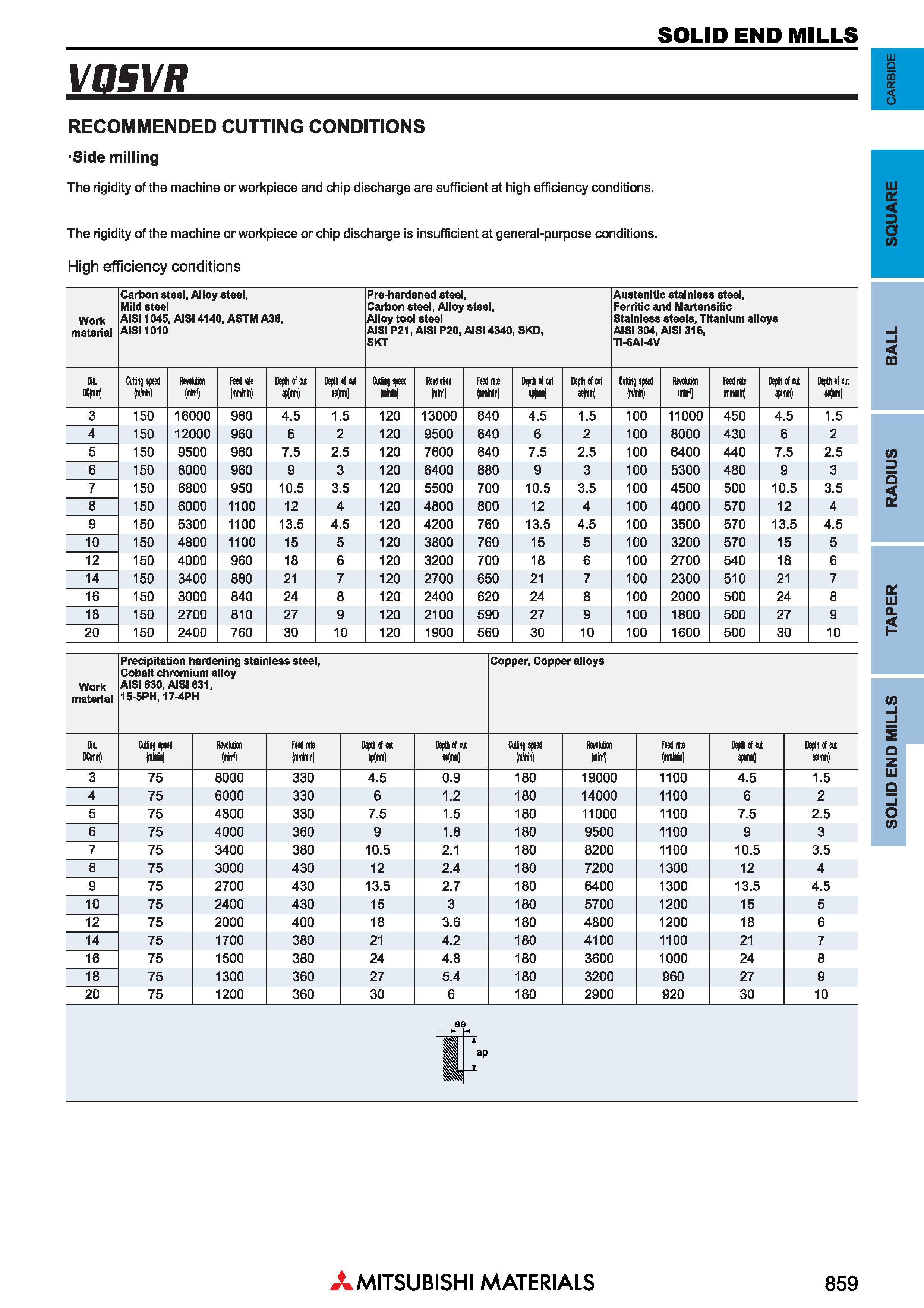

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ vosvr Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Side milling The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140, ASTM A36, AISI1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic Stainless steels. Titanium alloys AISI 304, AISI 316, Ti-6AI-4V Dia. Cutting ipeed Rewtution Feed rite Depth of cut DeiMli of cut Cling speed Revolution Fnd nte Defitti of cut Depth of cut Cutting epeed Revolution Feed nte Depth of cut Depth ol cut DCQnm (mknh miir'l rmMn) ip nm ie mmj (mtii (miir'l (mm/mir ip)nm ie)nm Iniminl (iriiH) (mmlmin lejnm) 3 150 16000 960 4.5 1.5 120 13000 640 4.5 1.5 100 11000 450 4.5 1.5 4 150 12000 960 6 2 120 9500 640 6 2 100 8000 430 6 2 5 150 9500 960 7.5 2.5 120 7600 640 7.5 2.5 100 6400 440 7.5 2.5 6 150 8000 960 9 3 120 6400 680 9 3 100 5300 480 9 3 7 150 6800 950 10.5 3.5 120 5500 700 10.5 3.5 100 4500 500 10.5 3.5 8 150 6000 1100 12 4 120 4800 800 12 4 100 4000 570 12 4 9 150 5300 1100 13.5 4.5 120 4200 760 13.5 4.5 100 3500 570 13.5 4.5 10 150 4800 1100 15 5 120 3800 760 15 5 100 3200 570 15 5 12 150 4000 960 18 6 120 3200 700 18 6 100 2700 540 18 6 14 150 3400 880 21 7 120 2700 650 21 7 100 2300 510 21 7 16 150 3000 840 24 8 120 2400 620 24 8 100 2000 500 24 8 18 150 2700 810 27 9 120 2100 590 27 9 100 1800 500 27 9 20 150 2400 760 30 10 120 1900 560 30 10 100 1600 500 30 10 Work material Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631, 15-5PH, 17-4PH Copper, Copper alloys DU. DC(mm) Cutting speed (mlmr Revolution )ntf Feed nte (mmlmin) Depth of cut ap)nm Depth of cut letam Mfng feed (mimin Revolution (ntf Feed nte (mmlmin) Depth of cut ip)ti) Depth of cut eejnun) 3 75 8000 330 4.5 0.9 180 19000 1100 4.5 1.5 4 75 6000 330 6 1.2 180 14000 1100 6 2 5 75 4800 330 7.5 1.5 180 11000 1100 7.5 2.5 6 75 4000 360 9 1.8 180 9500 1100 9 3 7 75 3400 380 10.5 2.1 180 8200 1100 10.5 3.5 8 75 3000 430 12 2.4 180 7200 1300 12 4 9 75 2700 430 13.5 2.7 180 6400 1300 13.5 4.5 10 75 2400 430 15 3 180 5700 1200 15 5 12 75 2000 400 18 3.6 180 4800 1200 18 6 14 75 1700 380 21 4.2 180 4100 1100 21 7 16 75 1500 380 24 4.8 180 3600 1000 24 8 18 75 1300 360 27 5.4 180 3200 960 27 9 20 75 1200 360 30 6 180 2900 920 30 10 ap Mitsubishi Materials 859 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
