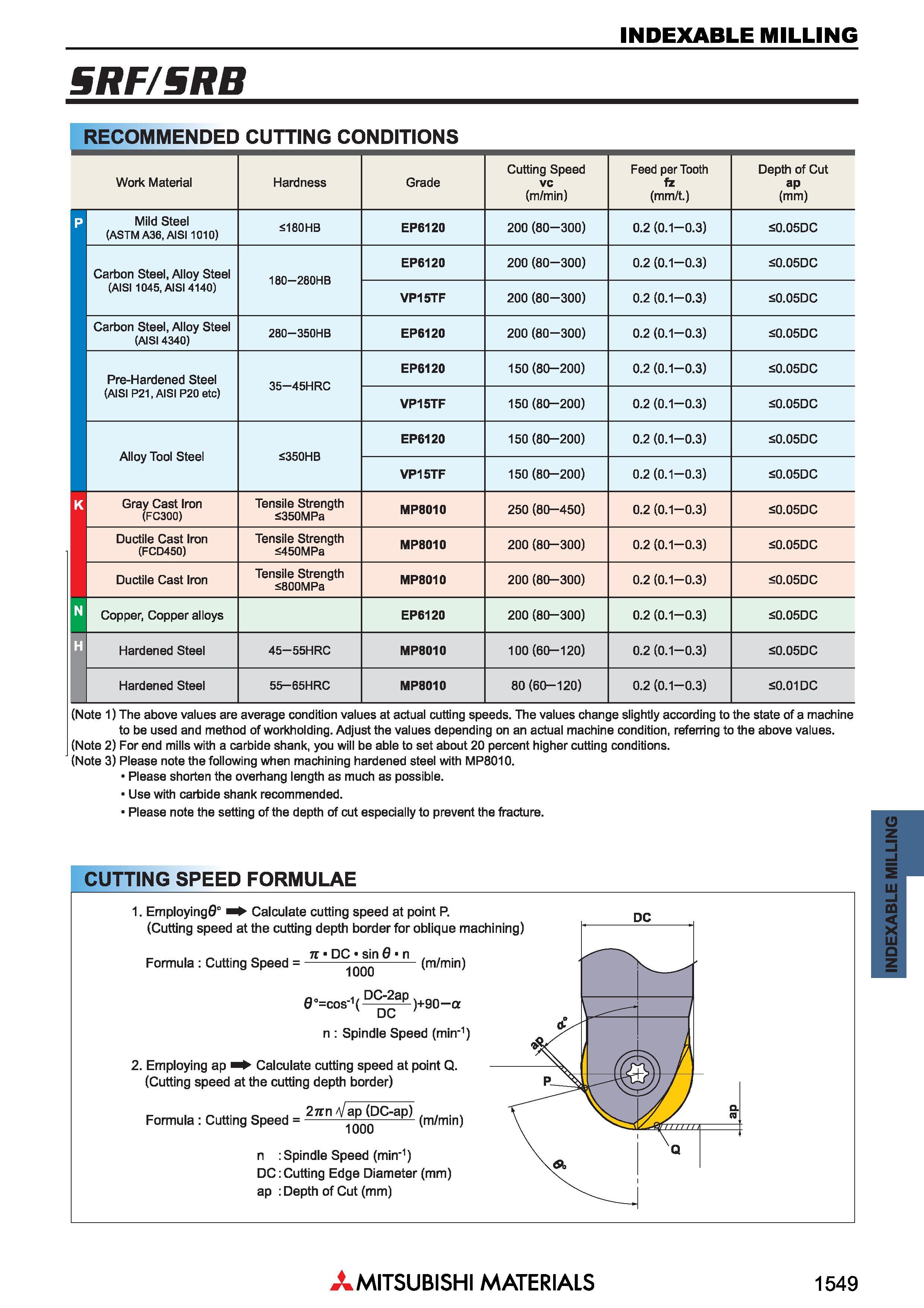

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SRF/SRB RECOMMENDED CUTTING CC EDITIONS n Обрабатываемые материалы Work Material Hardness Grade Cutting Speed vc (m/min) Feed per Tooth fz (mm/t.) Depth of Cut ap (mm) Mild Steel (ASTM A36, AIS11010) 5180HB EP6120 200 (80-300) 0.2 (0.1 0.3) S0.05DC K Carbon Steel, Alloy Steel (AISI 1045, AISI 4140) 180 280HB EP6120 200 (80-300) 0.2 (0.1 0.3) S0.05DC VP15TF 200 (80-300) 0.2 (0.1 0.3) S0.05DC Carbon Steel, Alloy Steel (AISI 4340) 280 350HB EP6120 200 (80-300) 0.2 (0.1 0.3) S0.05DC Pre-Hardened Steel (AISI P21,AISIP20 etc) 35 45HRC EP6120 150 (80-200) 0.2 (0.1 0.3) S0.05DC VP15TF 150 (80-200) 0.2 (0.1 0.3) S0.05DC Alloy Tool Steel S350HB EP6120 150 (80-200) 0.2 (0.1 0.3) S0.05DC VP15TF 150 (80-200) 0.2 (0.1 0.3) S0.05DC Gray Cast Iron (FC300) Tensile Strength s350MPa MP8010 250 (80-450) 0.2 (0.1 0.3) S0.05DC Ductile Cast Iron (FCD450) Tensile Strength <450MPa MP8010 200 (80-300) 0.2 (0.1 0.3) S0.05DC Ductile Cast Iron Tensile Strength <;800MPa MP8010 200 (80-300) 0.2 (0.1 0.3) <0.05DC Copper, Copper alloys EP6120 200 (80-300) 0.2 (0.1 0.3) S0.05DC N H Hardened Steel 45 55HRC MP8010 100(60-120) 0.2 (0.1 0.3) S0.05DC Hardened Steel 55 65HRC MP8010 80 (60-120) 0.2 (0.1 0.3) £0.01 DC (Note 1) The above values are average condition values at actual cutting speeds. The values change slightly according to the state of a machine to be used and method of workholding. Adjust the values depending on an actual machine condition, referring to the above values. (Note 2) For end mills with a carbide shank, you will be able to set about 20 percent higher cutting conditions. (Note 3) Please note the following when machining hardened steel with MP8010. Please shorten the overhang length as much as possible. Use with carbide shank recommended. Please note the setting of the depth of cut especially to prevent the fracture. CUTTING SPEED FORMULAE 1. Employingfl° Calculate cutting speed at point P. (Cutting speed at the cutting depth border for oblique machining) Formula Cutting Speed = n DC sin 8 n 1000 (m/min) 0o=cos'1(n rR)+9O Q: n Spindle Speed (min-1) 2. Employing ap Calculate cutting speed at point Q. (Cutting speed at the cutting depth border) Formula Cutting Speed = 27rn A/ap (DC-ap) 1000 (m/min) n Spindle Speed (min-1) DC: Cutting Edge Diameter (mm) ap Глубина резания (мм) Depth of Cut (mm) DC a. N Mitsubishi Materials 1549 INDEXABLE MILLING
