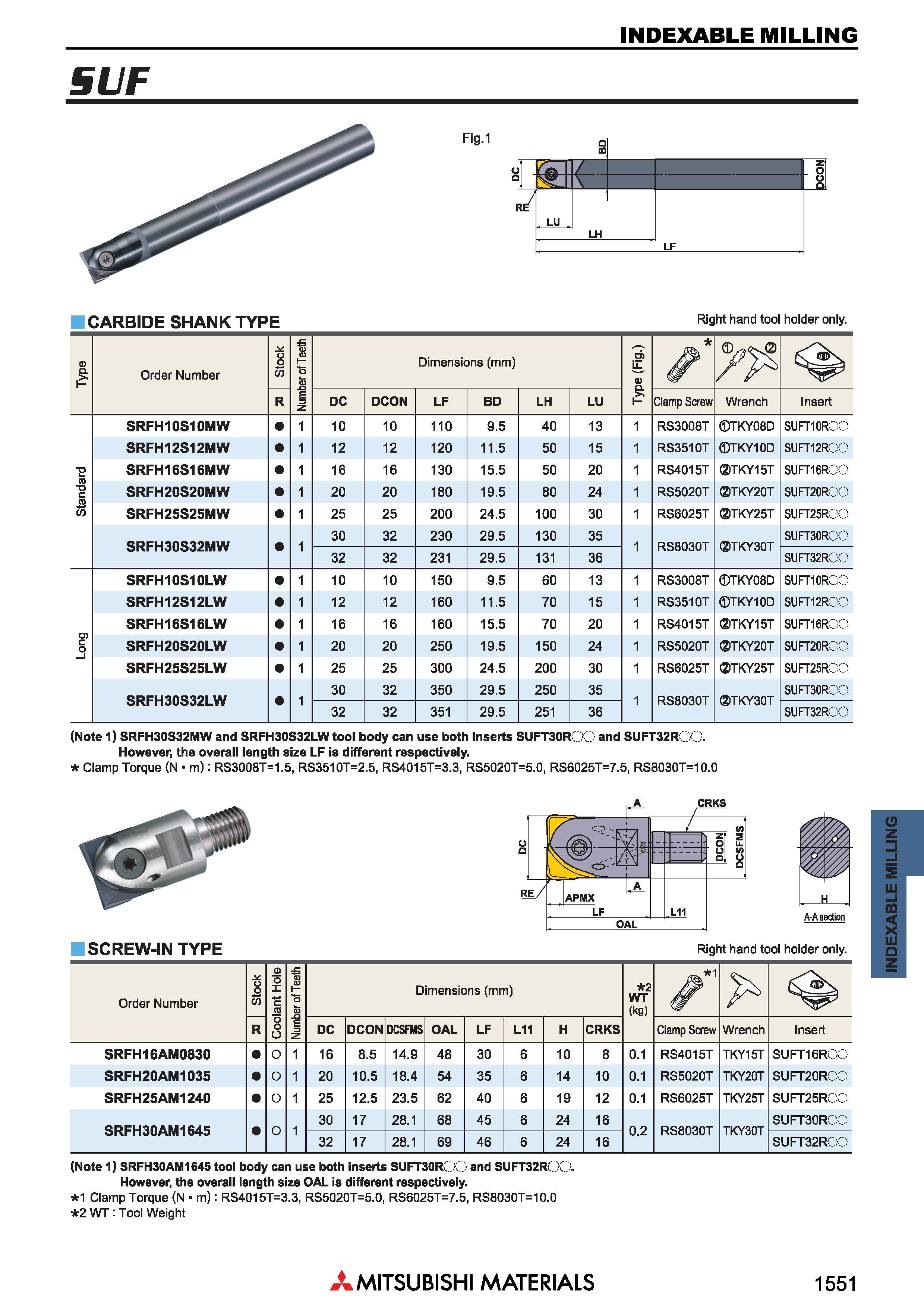

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SUF o a I 1 CON \ J LU LH LF I CARBIDE SHANK TYPE R'9ht hand too1 holder on y- Type Обозначение Order Number Stock S 03 ffi 1 O a5 Размеры в мм Dimensions (mm) d> LL 0 R e 3 z DC CON LF BD LH LU £ Clamp Screw Wrench Insert SRFH10S10MW 1 10 10 110 9.5 40 13 1 RS3008T TKY08D SUFT10RCG SRFH12S12MW 1 12 12 120 11.5 50 15 1 RS3510T TKY10D SUFT12RCO "E to a c SRFH16S16MW 1 16 16 130 15.5 50 20 1 RS4015T 0TKY15T SUFT16RCO SRFH20S20MW 1 20 20 180 19.5 80 24 1 RS5020T TKY20T SUFT20RCO CO SRFH25S25MW 1 25 25 200 24.5 100 30 1 RS6025T TKY25T SUFT25RCO SRFH30S32MW 30 32 230 29.5 130 35 RS8030T TKY30T SUFT30RCG 32 32 231 29.5 131 36 SUFT32RCO SRFH10S10LW 1 10 10 150 9.5 60 13 1 RS3008T TKY08D SUFTIORCO SRFH12S12LW 1 12 12 160 11.5 70 15 1 RS3510T TKY10D SUFT12RCO -ong SRFH16S16LW 1 16 16 160 15.5 70 20 1 RS4015T TKY15T SUFT16RCO SRFH20S20LW 1 20 20 250 19.5 150 24 1 RS5020T &TKY20T SUFT20RCO SRFH25S25LW 1 25 25 300 24.5 200 30 1 RS6025T TKY25T SUFT25RCO SRFH30S32LW 30 32 350 29.5 250 35 RS8030T TKY30T SUFT30RCC) 32 32 351 29.5 251 36 SUFT32RCO (Note 1) SRFH30S32MW and SRFH30S32LW tool body can use both inserts SUFT30ROO and SUFT32ROO. However, the overall length size LF is different respectively. Clamp Torque (N m): RS3008T=1.5, RS3510T=2.5, RS4015T=3.3, RS5020T=5.0, RS6025T=7.5, RS8030T=10.0 A-A section SCREW-IN TYPE Right hand tool holder only. Обозначение Order Number Stock Coolant Hole Количество режущих зубьев Number of Teeth Размеры в мм Dimensions (mm) 2 WT (kg) R DC DCON DCSFMS OAL LF L11 H CRKS Clamp Screw Wrench Insert SRFH16AM0830 O 1 16 8.5 14.9 48 30 6 10 8 0.1 RS4015T TKY15T SUFT16ROO SRFH20AM1035 O 1 20 10.5 18.4 54 35 6 14 10 0.1 RS5020T TKY20T SUFT20RCX3 SRFH25AM1240 o 1 25 12.5 23.5 62 40 6 19 12 0.1 RS6025T TKY25T SUFT25ROO SRFH30AM1645 o 1 30 17 28.1 68 45 6 24 16 0.2 RS8030T TKY30T SUFT30ROO 32 17 28.1 69 46 6 24 16 SUFT32ROO (Note 1) SRFH30AM1645 tool body can use both inserts SUFT30ROO and SUFT32ROO. However, the overall length size OAL is different respectively. 1 Clamp Torque (N m): RS4015T=3.3, RS5020T=5.0, RS6025T=7.5, RS8030T=10.0 2 WT Tool Weight Mitsubishi Materials 1551 INDEXABLE MILLING
