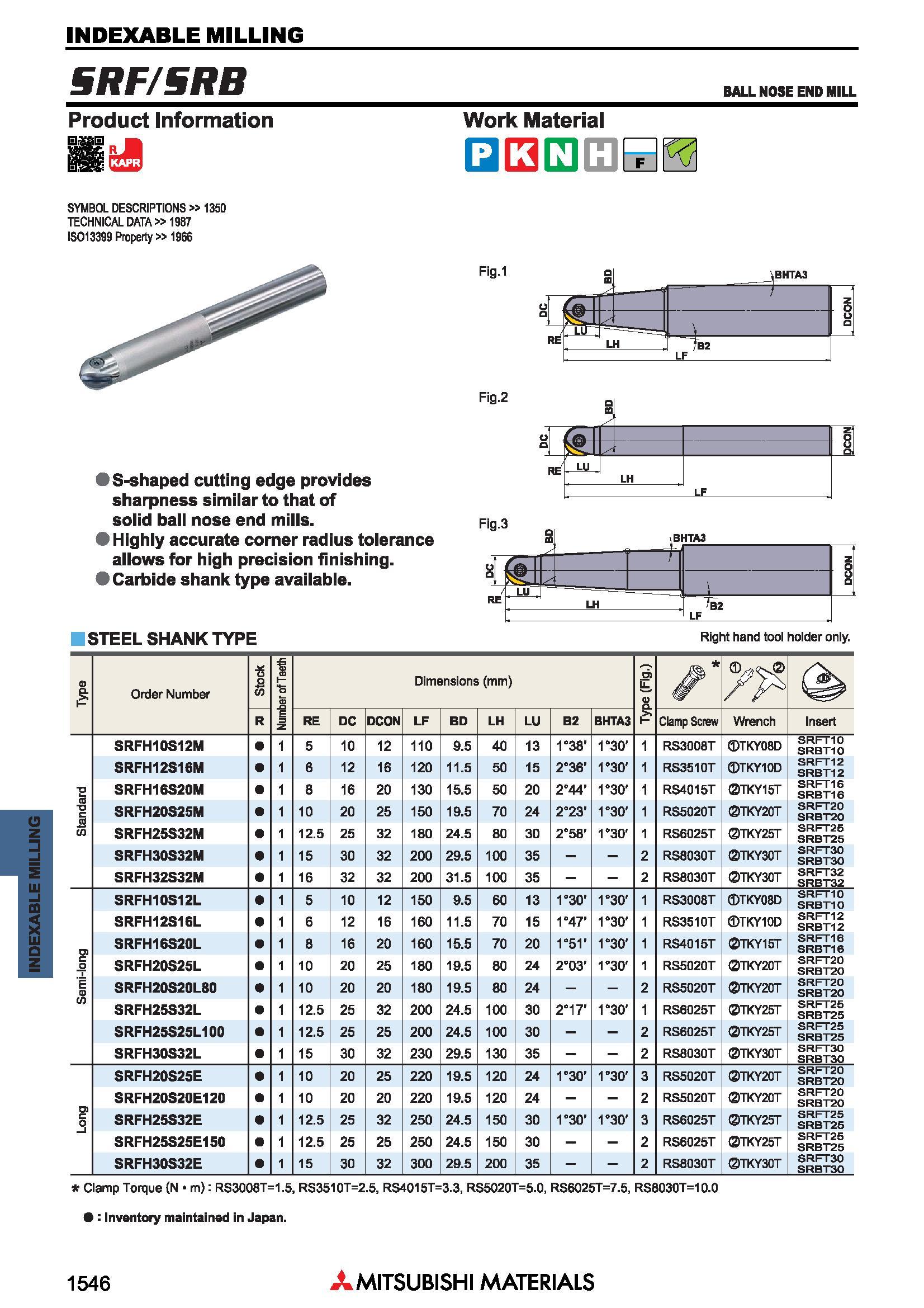

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SRF/SRB BALL NOSE END MILL Product Information EkgfiE rM Обрабатываемые материалы Work Material SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 Fig.1 Fig.2 S-shaped cutting edge provides sharpness similar to that of solid ball nose end mills. Highly accurate comer radius tolerance allows for high precision finishing. Carbide shank type available. STEEL SHANK TYPE Type Обозначение Order Number Stock t5 a Размеры в мм Dimensions (mm) O) E u R E 3 z RE DC DCON LF BD LH LU B2 BHTA3 Clamp Screw Wrench Insert SRFH10S12M 1 5 10 12 110 9.5 40 13 1°38' 1“30' 1 RS3008T (DTKY08D SRFT10 SRBT10 SRFH12S16M 1 6 12 16 120 11.5 50 15 2 36’ 1°30' 1 RS3510T (DTKY10D SRFT12 SRBT12 2 SRFH16S20M 1 8 16 20 130 15.5 50 20 2 44’ 1°30' 1 RS4015T TKY15T SRFT16 SRBT16 T3 E JS Ui SRFH20S2SM 1 10 20 25 150 19.5 70 24 2°23' 1°30 1 RS5020T 0TKY2OT SRFT20 SRBT20 SRFH25S32M 1 12.5 25 32 180 24.5 80 30 2 58’ 1°30' 1 RS6025T TKY25T SRFT25 SRBT25 SRFH30S32M 1 15 30 32 200 29.5 100 35 - - 2 RS8030T TKY30T SRFT30 SRBT30 SRFH32S32M 1 16 32 32 200 31.5 100 35 - - 2 RS8030T 0TKY3OT SRFT32 SRBT32 SRFH10S12L 1 5 10 12 150 9.5 60 13 1°30' 1°30' 1 RS3008T (DTKY08D SRFT10 SRBT10 SRFH12S16L 1 6 12 16 160 11.5 70 15 1 47’ 1°30' 1 RS3510T TKY10D SRFT12 SRBT12 SRFH16S20L 1 8 16 20 160 15.5 70 20 1 °511 1°30' 1 RS4015T <2>TKY15T SRFT16 SRBT16 c o SRFH20S25L 1 10 20 25 180 19.5 80 24 2°03’ 1°30' 1 RS5020T 0TKY2OT SRFT20 SRBT20 E 0) Ui SRFH20S20L80 1 10 20 20 180 19.5 80 24 - - 2 RS5020T TKY20T SRFT20 SRBT20 SRFH25S32L 1 12.5 25 32 200 24.5 100 30 2°17' 1“30' 1 RS6025T 0TKY25T SRFT25 SRBT25 SRFH25S25L100 1 12.5 25 25 200 24.5 100 30 - - 2 RS6025T 0TKY25T SRFT25 SRBT25 SRFH30S32L 1 15 30 32 230 29.5 130 35 - - 2 RS8030T TKY30T SRFT30 SRBT30 SRFH20S25E 1 10 20 25 220 19.5 120 24 r30’ 1°30' 3 RS5020T TKY20T SRFT20 SRBT20 SRFH20S20E120 1 10 20 20 220 19.5 120 24 - - 2 RS5020T TKY20T SRFT20 SRBT20 c SRFH25S32E 1 12.5 25 32 250 24.5 150 30 1 30’ 1°30' 3 RS6025T TKY25T SRFT25 SRBT25 SRFH25S25E150 1 12.5 25 25 250 24.5 150 30 - - 2 RS6025T TKY25T SRFT25 SRBT25 SRFH30S32E 1 15 30 32 300 29.5 200 35 - - 2 RS8030T TKY30T SRFT30 SRBT30 Clamp Torque (N m): RS3008 =1.5, RS3510T=2.5, RS4015T-3.3, RS5020T=5.0, RS6025T=7.5, RS8030T-10.0 Inventory maintained in Japan. 1546 Mitsubishi Materials
