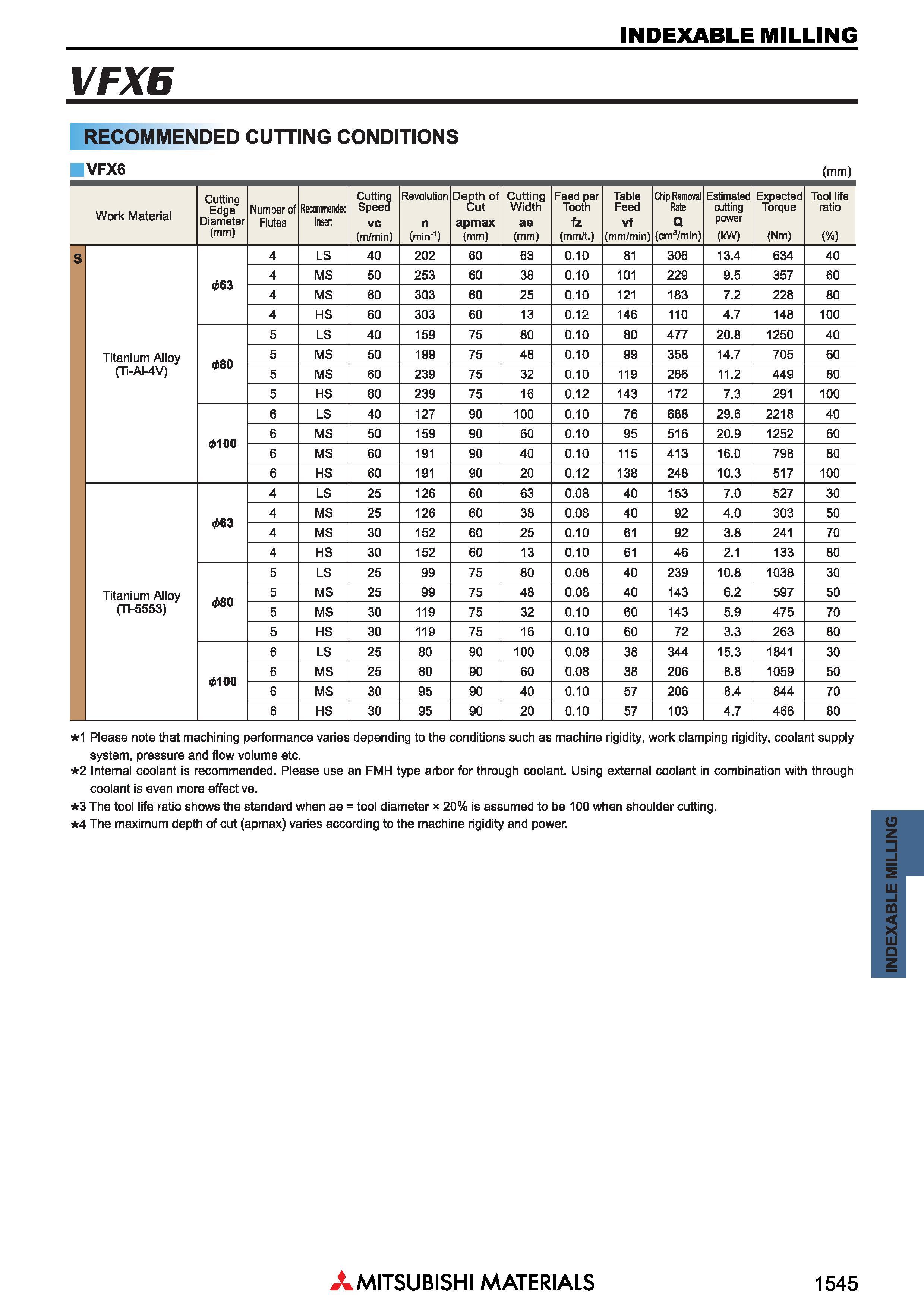

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ VFXE Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS I VFX6 (mm) Обрабатываемые материалы Work Material Cutting Edge Diameter (mm) Number of Flutes Recommended insert Cutting Speed vc (m/min) Revolution n (min'1) Depth of Cut apmax (mm) Cutting Width ae (mm) Feed per Tooth fz (mm/t.) Table Feed vf (mm/min) Chip Removal Rate Q (cm3/min) Estimated cutting power (kW) Expected Torque (Nm) Tool life ratio (%) S Titanium Alloy (T1-AI-4V) 063 4 LS 40 202 60 63 0.10 81 306 13.4 634 40 4 MS 50 253 60 38 0.10 101 229 9.5 357 60 4 MS 60 303 60 25 0.10 121 183 7.2 228 80 4 HS 60 303 60 13 0.12 146 110 4.7 148 100 480 5 LS 40 159 75 80 0.10 80 477 20.8 1250 40 5 MS 50 199 75 48 0.10 99 358 14.7 705 60 5 MS 60 239 75 32 0.10 119 286 11.2 449 80 5 HS 60 239 75 16 0.12 143 172 7.3 291 100 4100 6 LS 40 127 90 100 0.10 76 688 29.6 2218 40 6 MS 50 159 90 60 0.10 95 516 20.9 1252 60 6 MS 60 191 90 40 0.10 115 413 16.0 798 80 6 HS 60 191 90 20 0.12 138 248 10.3 517 100 Titanium Alloy (Ti-5553) 063 4 LS 25 126 60 63 0.08 40 153 7.0 527 30 4 MS 25 126 60 38 0.08 40 92 4.0 303 50 4 MS 30 152 60 25 0.10 61 92 3.8 241 70 4 HS 30 152 60 13 0.10 61 46 2.1 133 80 080 5 LS 25 99 75 80 0.08 40 239 10.8 1038 30 5 MS 25 99 75 48 0.08 40 143 6.2 597 50 5 MS 30 119 75 32 0.10 60 143 5.9 475 70 5 HS 30 119 75 16 0.10 60 72 3.3 263 80 0100 6 LS 25 80 90 100 0.08 38 344 15.3 1841 30 6 MS 25 80 90 60 0.08 38 206 8.8 1059 50 6 MS 30 95 90 40 0.10 57 206 8.4 844 70 6 HS 30 95 90 20 0.10 57 103 4.7 466 80 1 Please note that machining performance varies depending to the conditions such as machine rigidity, work clamping rigidity, coolant supply system, pressure and flow volume etc. 2 Internal coolant is recommended. Please use an FMH type arbor for through coolant. Using external coolant in combination with through coolant is even more effective. 3 The tool life ratio shows the standard when ae = tool diameter 20% is assumed to be 100 when shoulder cutting. 4 The maximum depth of cut (apmax) varies according to the machine rigidity and power. Mitsubishi Materials 1545 INDEXABLE MILLING
