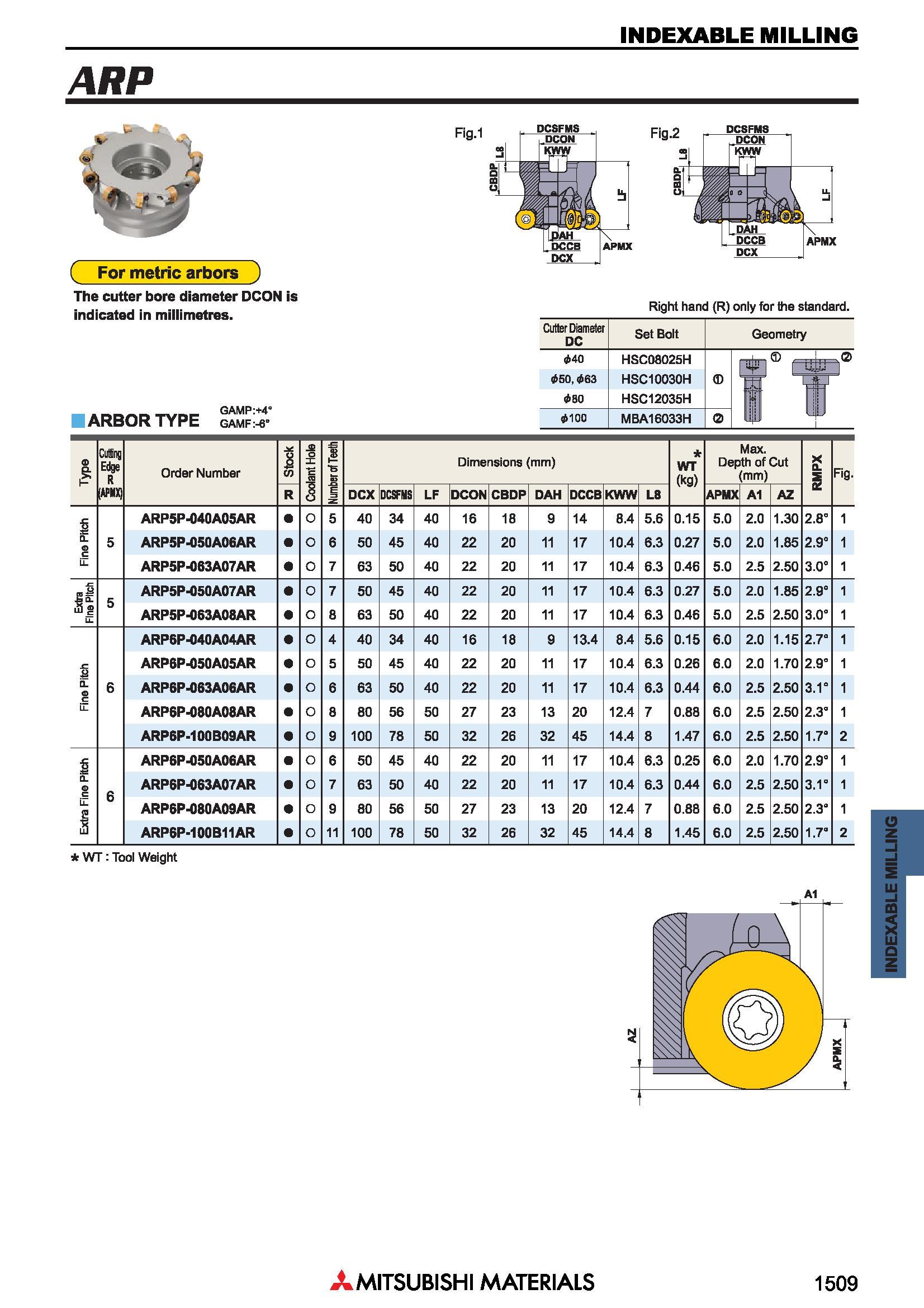

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ ARP ( For metric arborsj The cutter bore diameter DCON is indicated in millimetres. Right hand (R) only for the standard. Cutter Diameter DC GAMP:+4“ ARBOR TYPE GAMF :-6" 040 050,063 080 0100 Set Bolt HSC08025H HSC10030H HSC 12035H MBA16033H o £ Cuffing Edge R (APMX Обозначение Order Number Stock £ o X ra Количество режущих зубьев Number of Teeth Размеры в мм Dimensions (mm) WT (kg) Dep Max. th of Cut mm) 2 Fig. R DCX DCSFMS LF DCON CBDP DAH DCCB KWW L8 APMX A1 AZ ARP5P-040A05AR o 5 40 34 40 16 18 9 14 8.4 5.6 0.15 5.0 2.0 1.30 2.8° 1 a. 0 5 ARP5P-050A06AR o 6 50 45 40 22 20 11 17 10.4 6.3 0.27 5.0 2.0 1.85 2.9° 1 u. ARP5P-063A07AR o 7 63 50 40 22 20 11 17 10.4 6.3 0.46 5.0 2.5 2.50 3.0° 1 Li 5 ARP5P-050A07AR o 7 50 45 40 22 20 11 17 10.4 6.3 0.27 5.0 2.0 1.85 2.9° 1 ill LU c LL ARP5P -063A08 AR o 8 63 50 40 22 20 11 17 10.4 6.3 0.46 5.0 2.5 2.50 3.0° 1 ARP6P-040A04AR o 4 40 34 40 16 18 9 13.4 8.4 5.6 0.15 6.0 2.0 1.15 2.7° 1 £ ARP6P-050A05AR o 5 50 45 40 22 20 11 17 10.4 6.3 0.26 6.0 2.0 1.70 2.9° 1 a. 0 6 ARP6P -063A06 AR o 6 63 50 40 22 20 11 17 10.4 6.3 0.44 6.0 2.5 2.50 3.1° 1 iT ARP6P-080A08AR o 8 80 56 50 27 23 13 20 12.4 7 0.88 6.0 2.5 2.50 2.3° 1 ARP6P-100B09AR o 9 100 78 50 32 26 32 45 14.4 8 1.47 6.0 2.5 2.50 1.7° ARP6P-050A06AR o 6 50 45 40 22 20 11 17 10.4 6.3 0.25 6.0 2.0 1.70 2.9° 1 CL O 6 ARP6P-063A07AR o 7 63 50 40 22 20 11 17 10.4 6.3 0.44 6.0 2.5 2.50 3.1° 1 ll ARP6P-080A09AR o 9 80 56 50 27 23 13 20 12.4 7 0.88 6.0 2.5 2.50 2.3° 1 ARP6P-100B11AR o 11 100 78 50 32 26 32 45 14.4 8 1.45 6.0 2.5 2.50 1.7° 2 Geometry .<2> WT: Tool Weight A1 Mitsubishi Materials 1509 INDEXABLE MILLING
