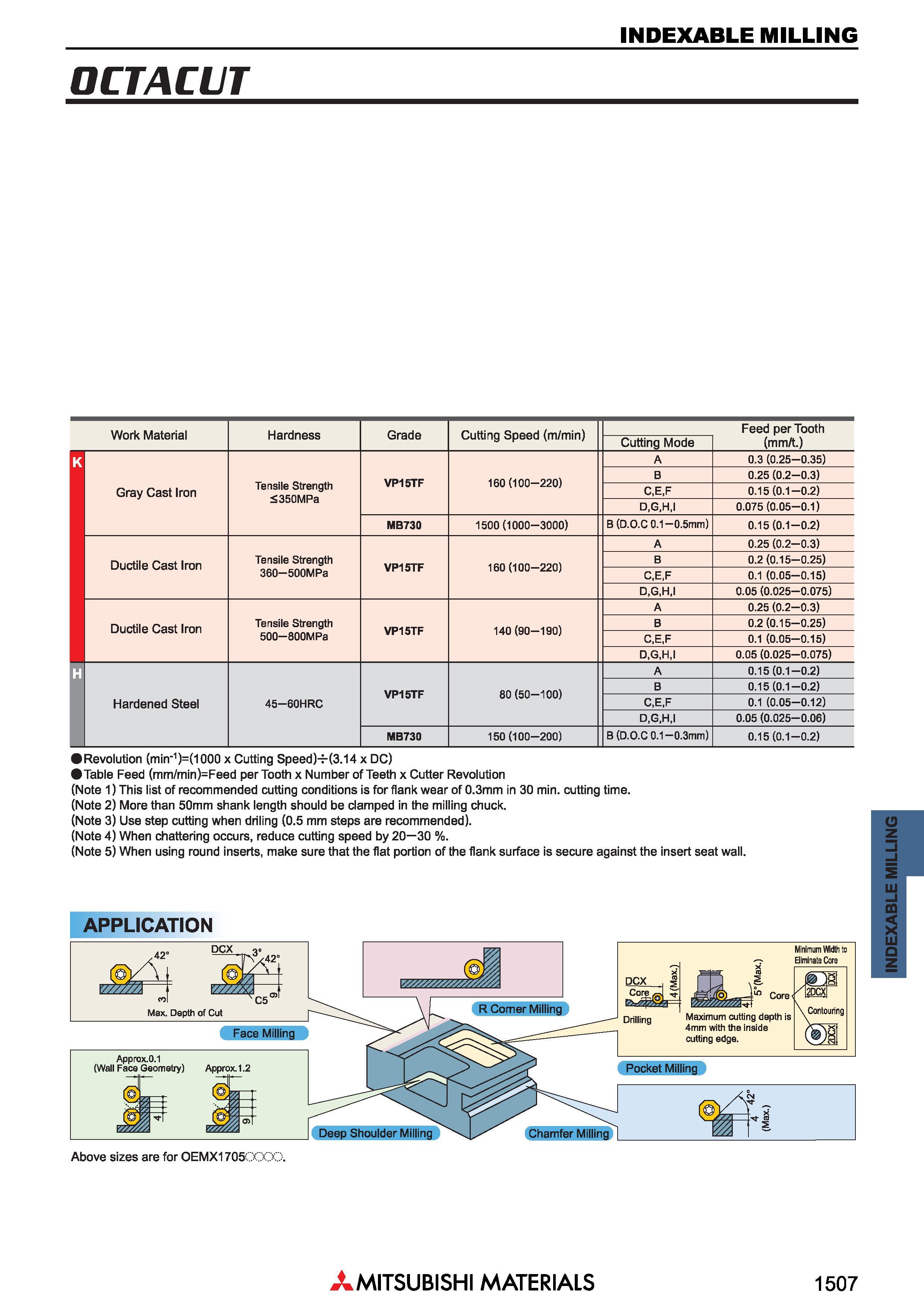

OCTACUT Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ Обрабатываемые материалы Work Material Hardness Grade Скорость резания (м/мин) Cutting Speed (m/min) Feed per Tooth Cutting Mode (mm/1.) K A 0.3 (0.25-0.35) Tensile Strength 5350MPa VP15TF 160(100-220) B 0.25 (0.2 0.3) Gray Cast Iron C,E,F 0.15(0.1-0.2) D,G,H,I 0.075 (0.05-0.1) MB730 1500(1000-3000) B (D.O.C 0.1 0.5mm) 0.15(0.1-0.2) A 0.25 (0.2 0.3) Ductile Cast Iron Tensile Strength VP15TF 160(100-220) B 0.2 (0.15-0.25) 360 500MPa C,E,F 0.1 (0.05-0.15) D,G,H,I 0.05 (0.025-0.075) A 0.25 (0.2 0.3) Ductile Cast Iron Tensile Strength VP15TF 140 (90-190) B 0.2(0.15-0.25) 500 800MPa C,E,F 0.1 (0.05-0.15) D,G,H,I 0.05 (0.025-0.075) H A 0.15(0.1-0.2) VP15TF 80 (50-100) B 0.15(0.1-0.2) Hardened Steel 45 60HRC C,E,F 0.1 (0.05-0.12) D,G,H,I 0.05 (0.025-0.06) MB730 150(100-200) B (D.O.C 0.1-0.3mm) 0.15(0.1-0.2) Revolution (min'1)=(1000 x Cutting Speed)-j-(3.14 x DC) Table Feed (mm/min)=Feed per Tooth x Количество режущих зубьев Number of Teeth x Cutter Revolution (Note 1) This list of recommended cutting conditions is for flank wear of 0.3mm in 30 min. cutting time. (Note 2) More than 50mm shank length should be clamped in the milling chuck. (Note 3) Use step cutting when driling (0.5 mm steps are recommended). (Note 4) When chattering occurs, reduce cutting speed by 20 30 %. (Note 5) When using round inserts, make sure that the flat portion of the flank surface is secure against the insert seat wall. APPLICATION Mitsubishi Materials 1507 INDEXABLE MILLING
