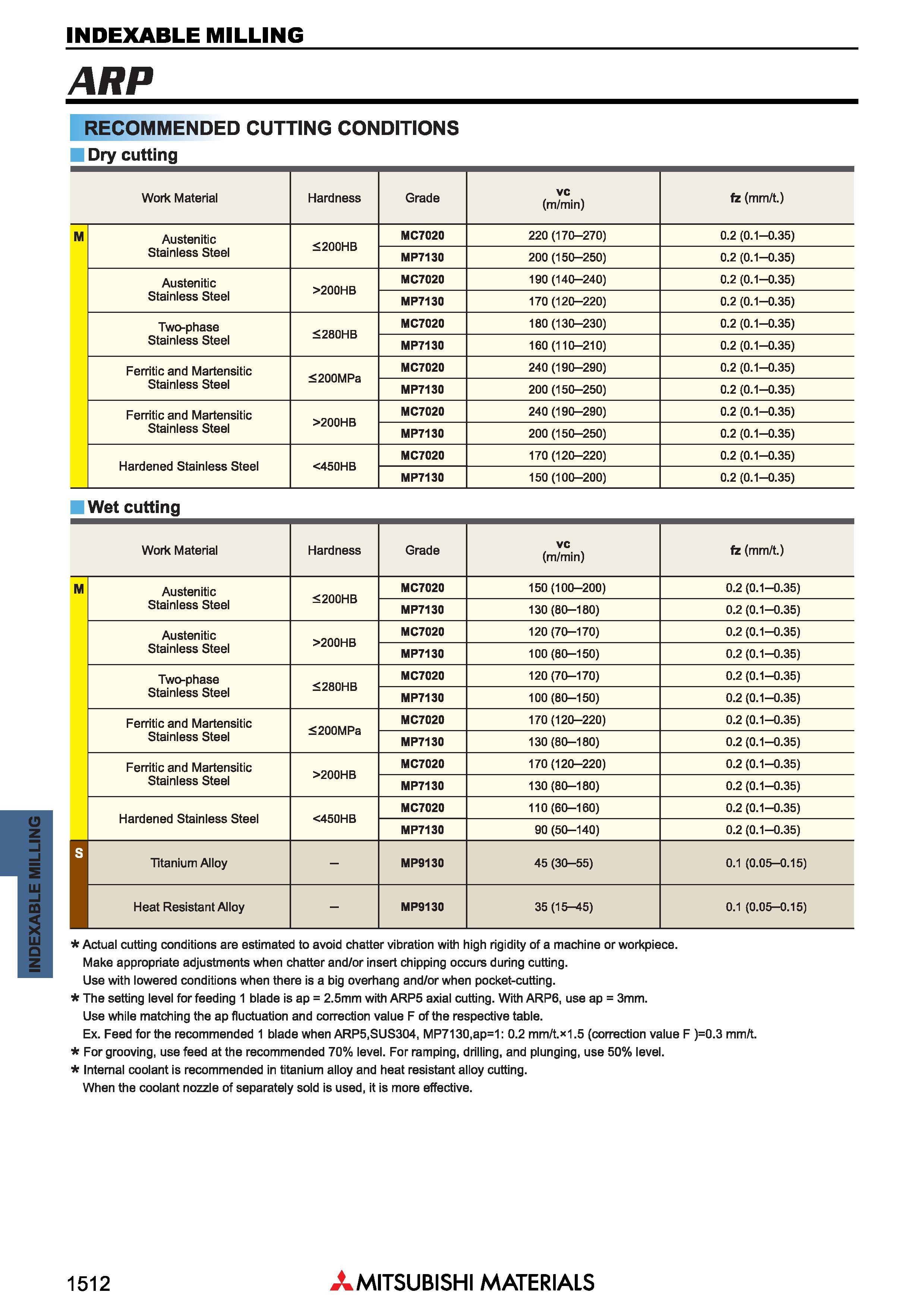

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ ARP Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS B Dry cutting Обрабатываемые материалы Work Material Hardness Grade vc (m/min) fz (mm/t.) M Austenitic <200HB MC7020 220 (170-270) 0.2 (0.1-0.35) Stainless Steel MP7130 200 (150-250) 0.2 (0.1-0.35) Austenitic >200HB MC7020 190 (140-240) 0.2 (0.1-0.35) Stainless Steel MP7130 170 (120-220) 0.2 (0.1-0.35) Two-phase <280HB MC7020 180 (130-230) 0.2 (0.1-0.35) Stainless Steel MP7130 160 (110-210) 0.2 (0.1-0.35) Ferritic and Martensitic <200MPa MC7020 240 (190-290) 0.2 (0.1-0.35) Stainless Steel MP7130 200 (150-250) 0.2 (0.1-0.35) Ferritic and Martensitic >200HB MC7020 240 (190-290) 0.2 (0.1-0.35) Stainless Steel MP7130 200 (150-250) 0.2 (0.1-0.35) Hardened Stainless Steel <450HB MC7020 170 (120-220) 0.2 (0.1-0.35) MP7130 150 (100-200) 0.2 (0.1-0.35) Wet cutting Обрабатываемые материалы Work Material Hardness Grade vc (m/min) fz (mm/t.) M Austenitic <200HB MC7020 150(100-200) 0.2 (0.1-0.35) Stainless Steel MP7130 130(80-180) 0.2 (0.1-0.35) Austenitic >200HB MC7020 120 (70-170) 0.2 (0.1-0.35) Stainless Steel MP7130 100 (80-150) 0.2 (0.1-0.35) Two-phase <280HB MC7020 120 (70-170) 0.2 (0.1-0.35) Stainless Steel MP7130 100 (80-150) 0.2 (0.1-0.35) Ferritic and Martensitic <200MPa MC7020 170(120-220) 0.2 (0.1-0.35) Stainless Steel MP7130 130(80-180) 0.2 (0.1-0.35) Ferritic and Martensitic >200HB MC7020 170(120-220) 0.2 (0.1-0.35) Stainless Steel MP7130 130(80-180) 0.2 (0.1-0.35) Hardened Stainless Steel <450HB MC7020 110(60-160) 0.2 (0.1-0.35) MP7130 90 (50-140) 0.2 (0.1-0.35) S Titanium Alloy - MP9130 45 (30-55) 0.1 (0.05-0.15) Heat Resistant Alloy - MP9130 35 (15-45) 0.1 (0.05-0.15) Actual cutting conditions are estimated to avoid chatter vibration with high rigidity of a machine or workpiece. Make appropriate adjustments when chatter and/or insert chipping occurs during cutting. Use with lowered conditions when there is a big overhang and/or when pocket-cutting. The setting level for feeding 1 blade is ap = 2.5mm with ARP5 axial cutting. With ARP6, use ap = 3mm. Use while matching the ap fluctuation and correction value F of the respective table. Ex. Feed for the recommended 1 blade when ARP5.SUS304, MP7130,ap=1: 0.2 mm/t. 1.5 (correction value F )=0.3 mm/t. For grooving, use feed at the recommended 70% level. For ramping, drilling, and plunging, use 50% level. Internal coolant is recommended in titanium alloy and heat resistant alloy cutting. When the coolant nozzle of separately sold is used, it is more effective. 1512 Mitsubishi Materials
