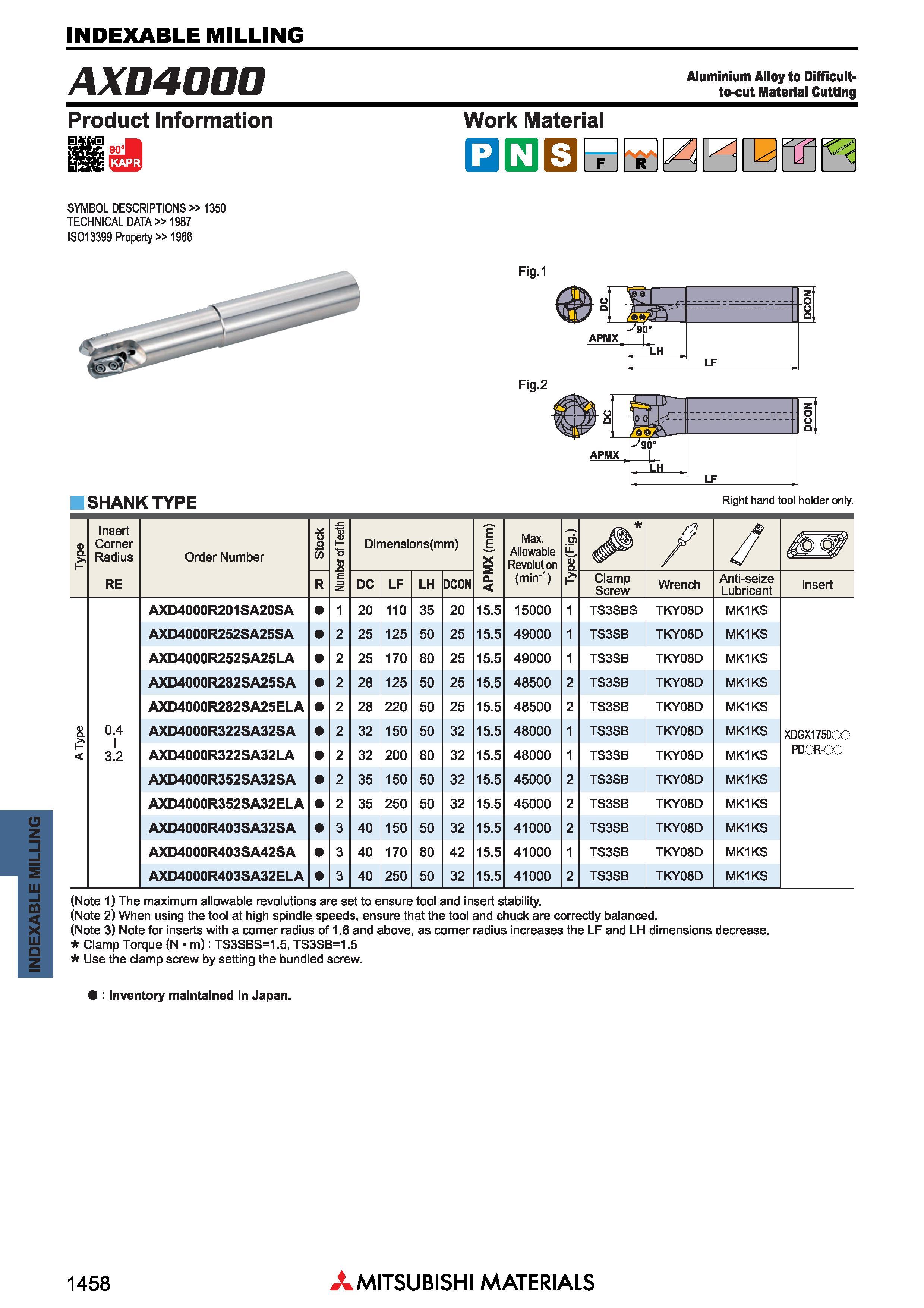

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AXD4000 Aluminium Alloy to Difficult-to-cut Material Cutting Product Information 901 Обрабатываемые материалы Work Material I SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 SHANK TYPE Right hand tool holder only. Type Insert Corner Radius RE Обозначение Order Number o W Количество режущих зубьев Number of Teeth Dimensions(mm) "£ £. X s Q. < Max. Allowable Revolution (min-1) rii LL a. P R DC LF LH DCON Clamp Screw Wrench Anti-seize Lubricant Insert AXD4000R201SA20SA 1 20 110 35 20 15.5 15000 1 TS3SBS TKY08D MK1KS AXD4000R252SA25SA 2 25 125 50 25 15.5 49000 1 TS3SB TKY08D MK1KS AXD4000R252SA25LA 2 25 170 80 25 15.5 49000 1 TS3SB TKY08D MK1KS AXD4000R282SA25SA 2 28 125 50 25 15.5 48500 2 TS3SB TKY08D MK1KS AXD4000R282SA25ELA 2 28 220 50 25 15.5 48500 2 TS3SB TKY08D MK1KS O Q. 0.4 AXD4000R322SA32SA 2 32 150 50 32 15.5 48000 1 TS3SB TKY08D MK1KS XDGX1750CC) H < 3.2 AXD4000R322SA32LA 2 32 200 80 32 15.5 48000 1 TS3SB TKY08D MK1KS PDOR-OO AXD4000R352SA32SA 2 35 150 50 32 15.5 45000 2 TS3SB TKY08D MK1KS AXD4000R352SA32ELA 2 35 250 50 32 15.5 45000 2 TS3SB TKY08D MK1KS AXD4000R403SA32SA 3 40 150 50 32 15.5 41000 2 TS3SB TKY08D MK1KS AXD4000R403SA42SA 3 40 170 80 42 15.5 41000 1 TS3SB TKY08D MK1KS AXD4000R403S A32 E LA 3 40 250 50 32 15.5 41000 2 TS3SB TKY08D MK1KS (Note 1) The maximum allowable revolutions are set to ensure tool and insert stability. (Note 2) When using the tool at high spindle speeds, ensure that the tool and chuck are correctly balanced. (Note 3) Note for inserts with a corner radius of 1.6 and above, as corner radius increases the LF and LH dimensions decrease. Clamp Torque (N m): TS3SBS=1.5, TS3SB=1.5 Use the clamp screw by setting the bundled screw. Inventory maintained in Japan. 1458 Mitsubishi Materials
