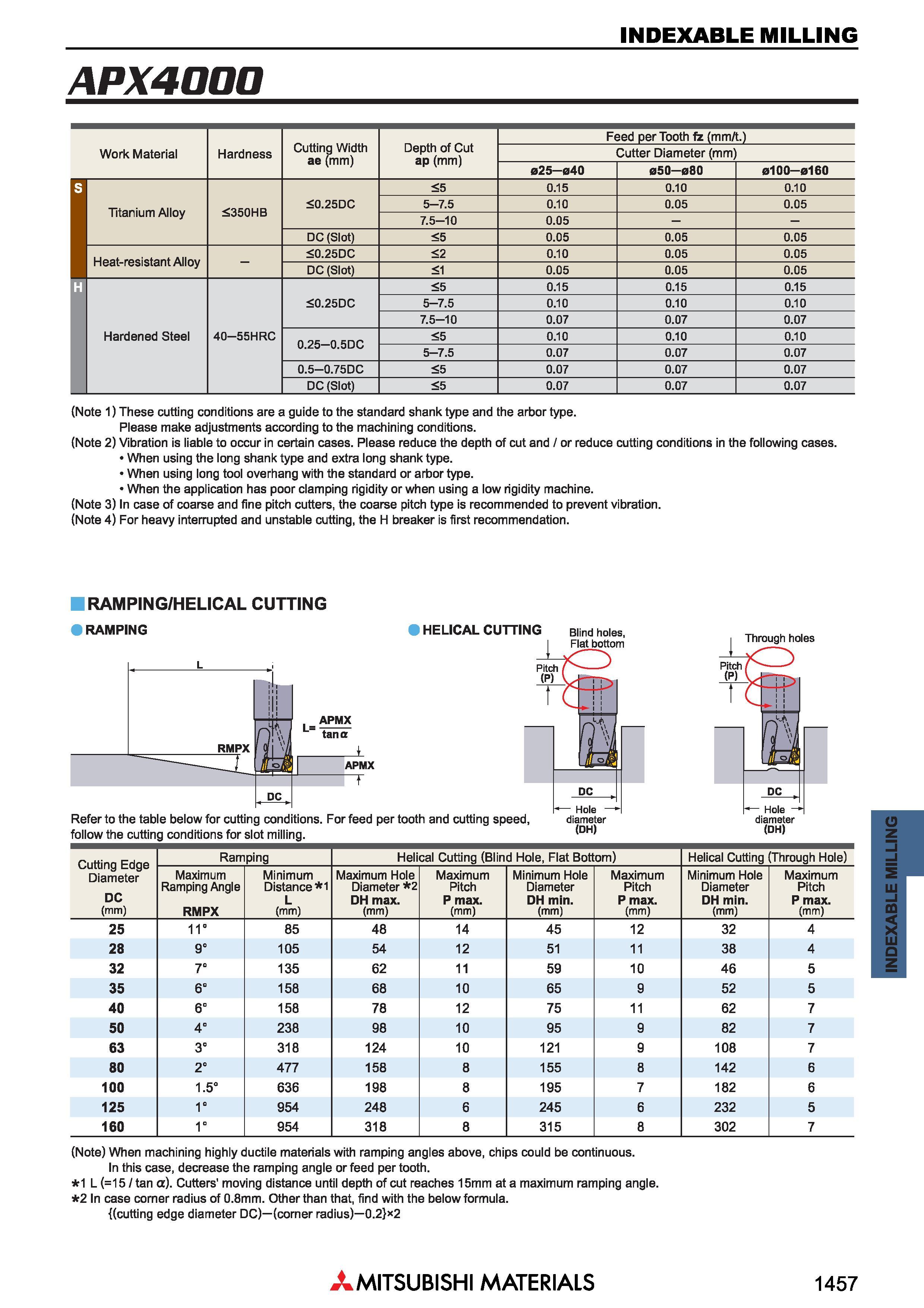

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ APX4000 Cutting Width ae (mm) Depth of Cut ap (mm) Feed per Tooth fz (mmA.) Обрабатываемые материалы Work Material Hardness Cutter Diameter (mm) 025 040 050 080 0100 0160 <5 0.15 0.10 0.10 Titanium Alloy 5350HB <0.25DC 5-7.5 0.10 0.05 0.05 7.5-10 0.05 - - DC (Slot) <5 0.05 0.05 0.05 1 Heat-resistant Alloy <0.25DC <2 0.10 0.05 0.05 DC (Slot) <1 0.05 0.05 0.05 <5 0.15 0.15 0.15 <0.25DC 5-7.5 0.10 0.10 0.10 7.5-10 0.07 0.07 0.07 Hardened Steel 40 55HRC 0.25 0.5DC <5 0.10 0.10 0.10 5-7.5 0.07 0.07 0.07 0.5 0.75DC <5 0.07 0.07 0.07 1 DC (Slot) <5 0.07 0.07 0.07 (Note 1) These cutting conditions are a guide to the standard shank type and the arbor type. Please make adjustments according to the machining conditions. (Note 2) Vibration is liable to occur in certain cases. Please reduce the depth of cut and / or reduce cutting conditions in the following cases. When using the long shank type and extra long shank type. When using long tool overhang with the standard or arbor type. When the application has poor clamping rigidity or when using a low rigidity machine. (Note 3) In case of coarse and fine pitch cutters, the coarse pitch type is recommended to prevent vibration. (Note 4) For heavy interrupted and unstable cutting, the H breaker is first recommendation. RAMPING/HELICAL CUTTING RAMPING HELICAL CUTTING Blind holes, Refer to the table below for cutting conditions. For feed per tooth and cutting speed, follow the cutting conditions for slot milling. diameter (DH) (DH) Cutting Edge Diameter DC (mm) Ramping Helical Cutting (Blind Hole, Flat Bottom) Helical Cutting (Through Hole) Maximum Ramping Angle RMPX Minimum Distance 1 L (mm) Maximum Hole Diameter 2 DH max. (mm) Maximum Pitch P max. (mm) Minimum Hole Diameter DH min. (mm) Maximum Pitch P max. (mm) Minimum Hole Diameter DH min. (mm) Maximum Pitch P max. (mm) 25 11" 85 48 14 45 12 32 4 28 9° 105 54 12 51 11 38 4 32 7“ 135 62 11 59 10 46 5 35 6“ 158 68 10 65 9 52 5 40 6° 158 78 12 75 11 62 7 50 4° 238 98 10 95 9 82 7 63 3' 318 124 10 121 9 108 7 80 2° 477 158 8 155 8 142 6 100 1.5° 636 198 8 195 7 182 6 125 1“ 954 248 6 245 6 232 5 160 1° 954 318 8 315 8 302 7 (Note) When machining highly ductile materials with ramping angles above, chips could be continuous. In this case, decrease the ramping angle or feed per tooth. 1 L (=151 tan a). Cutters' moving distance until depth of cut reaches 15mm at a maximum ramping angle. 2 In case corner radius of 0.8mm. Other than that, find with the below formula. (cutting edge diameter DC) (corner radius) 0.2 2 Mitsubishi Materials 1457 INDEXABLE MILLING
