AXD4000 Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING

AXD4000 Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING

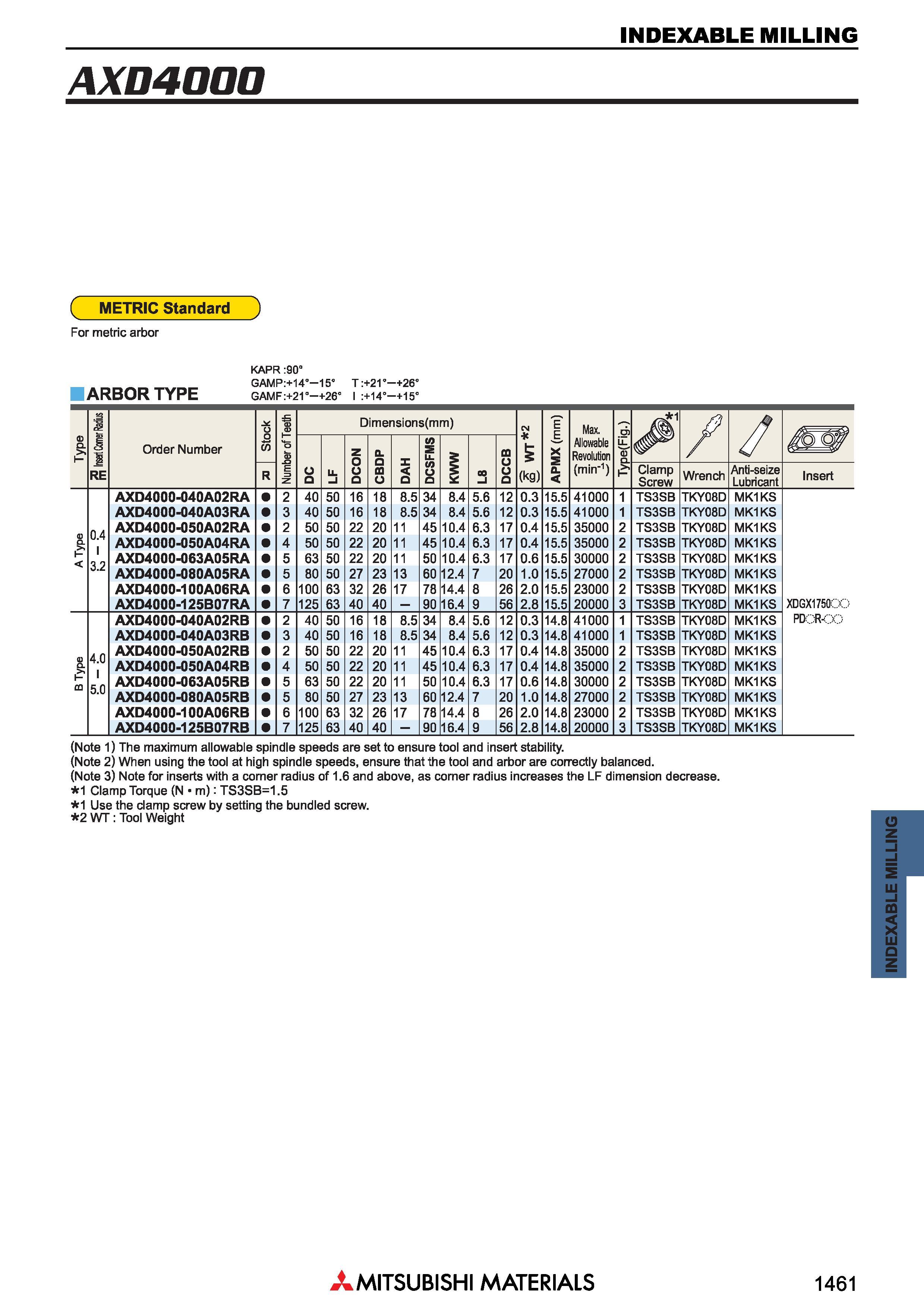

AXD4000 Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ ( METRIC Standard ) For metric arbor ARBOR TYPE KAPR :90° GAMP:+14° 15° GAMF:+21° +26° T :+21° +26° I :+14° +15° S CD Dimensions(mm) tv e" Max. m 1 / Q. l Обозначение Order Number o 55 I O Ui P m t Allowable / tf H u. 5 s. 2 Revolution RE R E =j z o a u. i o Q m o 2 Ui u a i oo l a a (kg) CL < (min"1) £ Clamp Screw Wrench Anti-seize Lubricant Insert AXD4000-040A02RA 2 40 50 16 18 8.5 34 8.4 5.6 12 0.3 15.5 41000 1 TS3SB TKY08D MK1KS AXD4000-040A03RA 3 40 50 16 18 8.5 34 8.4 5.6 12 0.3 15.5 41000 1 TS3SB TKY08D MK1KS 0.4 AXD4000-050A02RA 2 50 50 22 20 11 45 10.4 6.3 17 0.4 15.5 35000 2 TS3SB TKY08D MK1KS CL AXD4000-050A04RA 4 50 50 22 20 11 45 10.4 6.3 17 0.4 15.5 35000 2 TS3SB TKY08D MK1KS H 3.2 AXD4000-063A05RA 5 63 50 22 20 11 50 10.4 6.3 17 0.6 15.5 30000 2 TS3SB TKY08D MK1KS AXD4000-080A05RA 5 80 50 27 23 13 60 12.4 7 20 1.0 15.5 27000 2 TS3SB TKY08D MK1KS AXD4000-100A06RA 6 100 63 32 26 17 78 14.4 8 26 2.0 15.5 23000 2 TS3SB TKY08D MK1KS AXD4000-125B07RA 7 125 63 40 40 90 16.4 9 56 2.8 15.5 20000 3 TS3SB TKY08D MK1KS XDGX1750.. AXD4000-040A02RB 2 40 50 16 18 8.5 34 8.4 5.6 12 0.3 14.8 41000 1 TS3SB TKY08D MK1KS PD R- AXD4000-040A03RB 3 40 50 16 18 8.5 34 8.4 5.6 12 0.3 14.8 41000 1 TS3SB TKY08D MK1KS 4.0 AXD4000-050A02RB 2 50 50 22 20 11 45 10.4 6.3 17 0.4 14.8 35000 2 TS3SB TKY08D MK1KS Q. AXD4000-050A04RB 4 50 50 22 20 11 45 10.4 6.3 17 0.4 14.8 35000 2 TS3SB TKY08D MK1KS H CQ 5.0 AXD4000-063A05RB 5 63 50 22 20 11 50 10.4 6.3 17 0.6 14.8 30000 2 TS3SB TKY08D MK1KS AXD4000-080A05RB 5 80 50 27 23 13 60 12.4 7 20 1.0 14.8 27000 2 TS3SB TKY08D MK1KS AXD4000-1OOAO6RB 6 100 63 32 26 17 78 14.4 8 26 2.0 14.8 23000 2 TS3SB TKY08D MK1KS AXD4000-125B07RB 7 125 63 40 40 90 16.4 9 56 2.8 14.8 20000 3 TS3SB TKY08D MK1KS (Note 1) The maximum allowable spindle speeds are set to ensure tool and insert stability. (Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. (Note 3) Note for inserts with a corner radius of 1.6 and above, as corner radius increases the LF dimension decrease. 1 Clamp Torque (N m): TS3SB=1.5 1 Use the clamp screw by setting the bundled screw. 2 WT Tool Weight Mitsubishi Materials 1461 INDEXABLE MILLING
