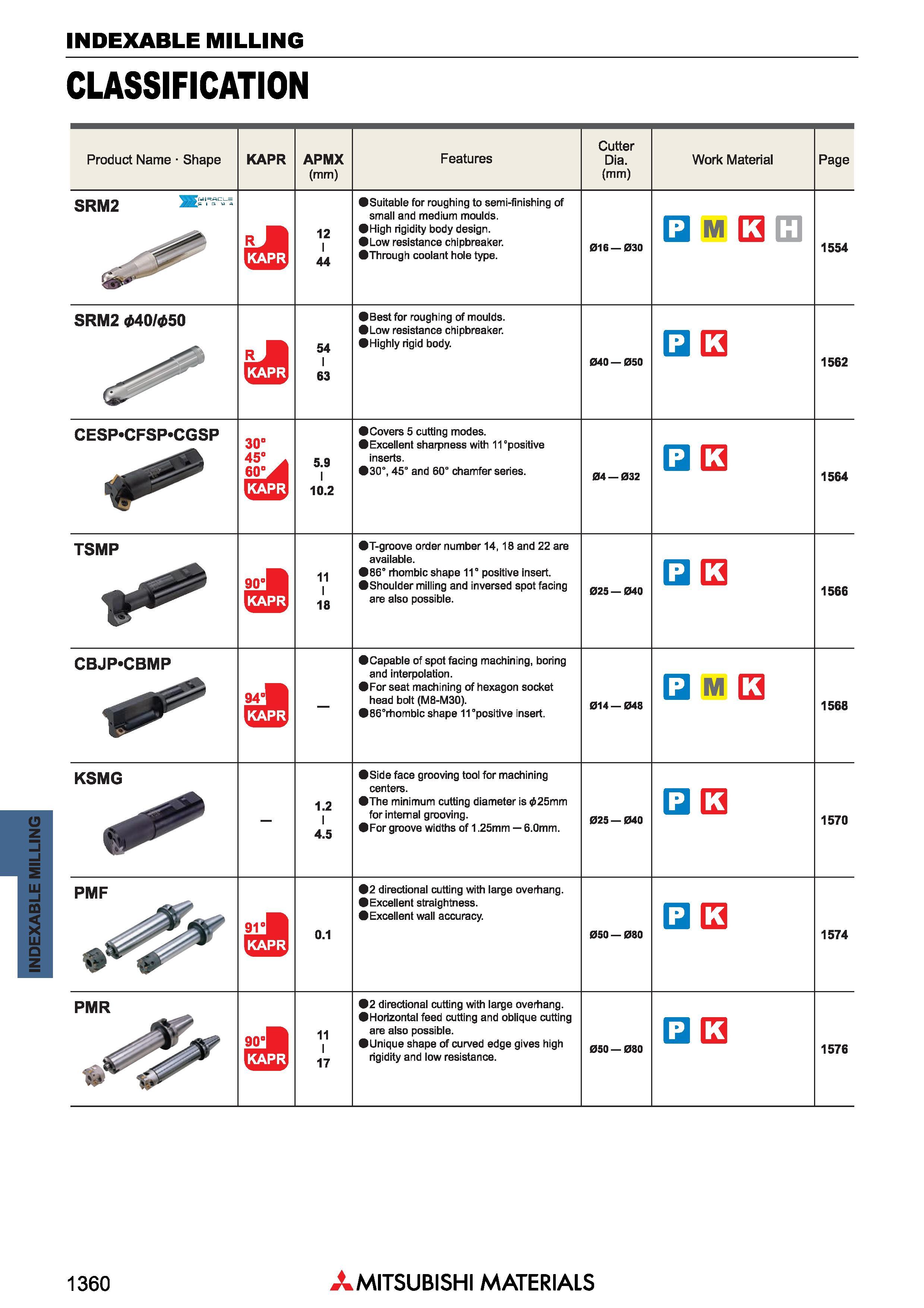

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ CLASSIFICATION Product Name Shape KAPR APMX (mm) Features Cutter Dia. (mm) Обрабатываемые материалы Work Material Page SRM2 mrs i ofl 12 I 44 Suitable for roughing to semi-finishing of small and medium moulds. High rigidity body design. Low resistance chipbreaker. Through coolant hole type. 016 030 M 1554 SRM2 040/ 50 ofl 54 I 63 Best for roughing of moulds. Low resistance chipbreaker. Highly rigid body. 040 050 1562 CESP CFSP CGSP 30° 45° A 60° 5.9 I 10.2 Covers 5 cutting modes. Excellent sharpness with 11 "positive inserts. 30°, 45“ and 60° chamfer series. 04 032 1564 TSMP 90°B lg 11 I 18 T-groove order number 14,18 and 22 are available. 86° rtiombic shape 11° positive insert. Shoulder milling and inversed spot facing are also possible. 025 040 1566 CBJP'CBMP 94°B Capable of spot facing machining, boring and interpolation. For seat machining of hexagon socket head bolt (M8-M30). 86°rtiombic shape 11°positive insert. 014 048 M 1568 KSMG 1.2 I 4.5 Side face grooving tool for machining centers. The minimum cutting diameter is 025mm for internal grooving. For groove widths of 1,25mm 6.0mm. 025 040 1570 PMF 91°B 1 0.1 2 directional cutting with large overhang. Excellent straightness. Excellent wall accuracy. 050 080 1574 PMR 90°B 11 I 17 2 directional cutting with large overhang. Horizontal feed cutting and oblique cutting are also possible. Unique shape of curved edge gives high rigidity and low resistance. 050 080 1576 1360 Mitsubishi Materials
