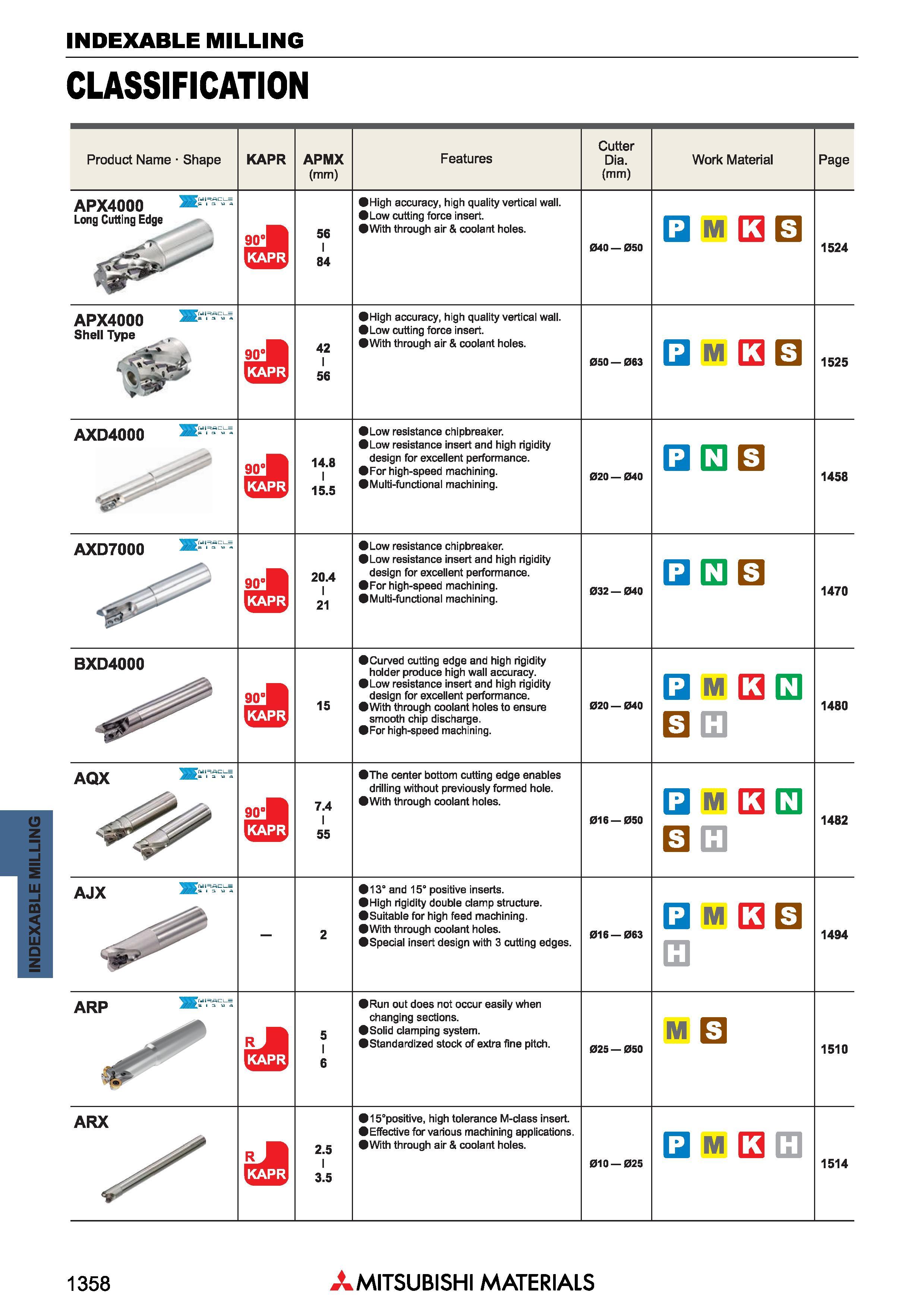

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ CLASSIFICATION Product Name Shape KAPR APMX (mm) Features Cutter Dia. (mm) Обрабатываемые материалы Work Material Page APX4000 Long Cutting Edge 90°B 56 1 84 High accuracy, high quality vertical wall. Low cutting force insert. With through air & coolant holes. 040 050 M 1524 APX4000 Shell Type 90°B 42 1 56 High accuracy, high quality vertical wall. Low cutting force insert. With through air & coolant holes. 050 063 M 1525 AXD4000 m - 90°B 1 14.8 I 15.5 Low resistance chipbreaker. Low resistance insert and high rigidity design for excellent performance. For high-speed machining. Multi-functional machining. 020 040 Q 1458 AXD7000 90°B lg 20.4 I 21 Low resistance chipbreaker. Low resistance insert and high rigidity design for excellent performance. For high-speed machining. Multi-functional machining. 032 040 1470 BXD4000 90°B 15 Curved cutting edge and high rigidity holder produce high wall accuracy. Low resistance insert and high rigidity design for excellent performance. With through coolant holes to ensure smooth chip discharge. For high-speed machining. 020 040 M m 1480 aqx - 90°B 7.4 I 55 The center bottom cutting edge enables drilling without previously formed hole. With through coolant holes. 016 050 M m 1482 AJX mrrs i 2 13° and 15° positive inserts. High rigidity double clamp structure. Suitable for high feed machining. With through coolant holes. Special insert design with 3 cutting edges. 016 063 m 1494 ARP W-'r:.- 5 I 6 Run out does not occur easily when changing sections. Solid clamping system. Standardized stock of extra fine pitch. 025 050 M 1510 ARX qS 2.5 I 3.5 15°positive, high tolerance M-class insert. Effective for various machining applications. With through air & coolant holes. 010 025 M 1514 1358 Mitsubishi Materials
