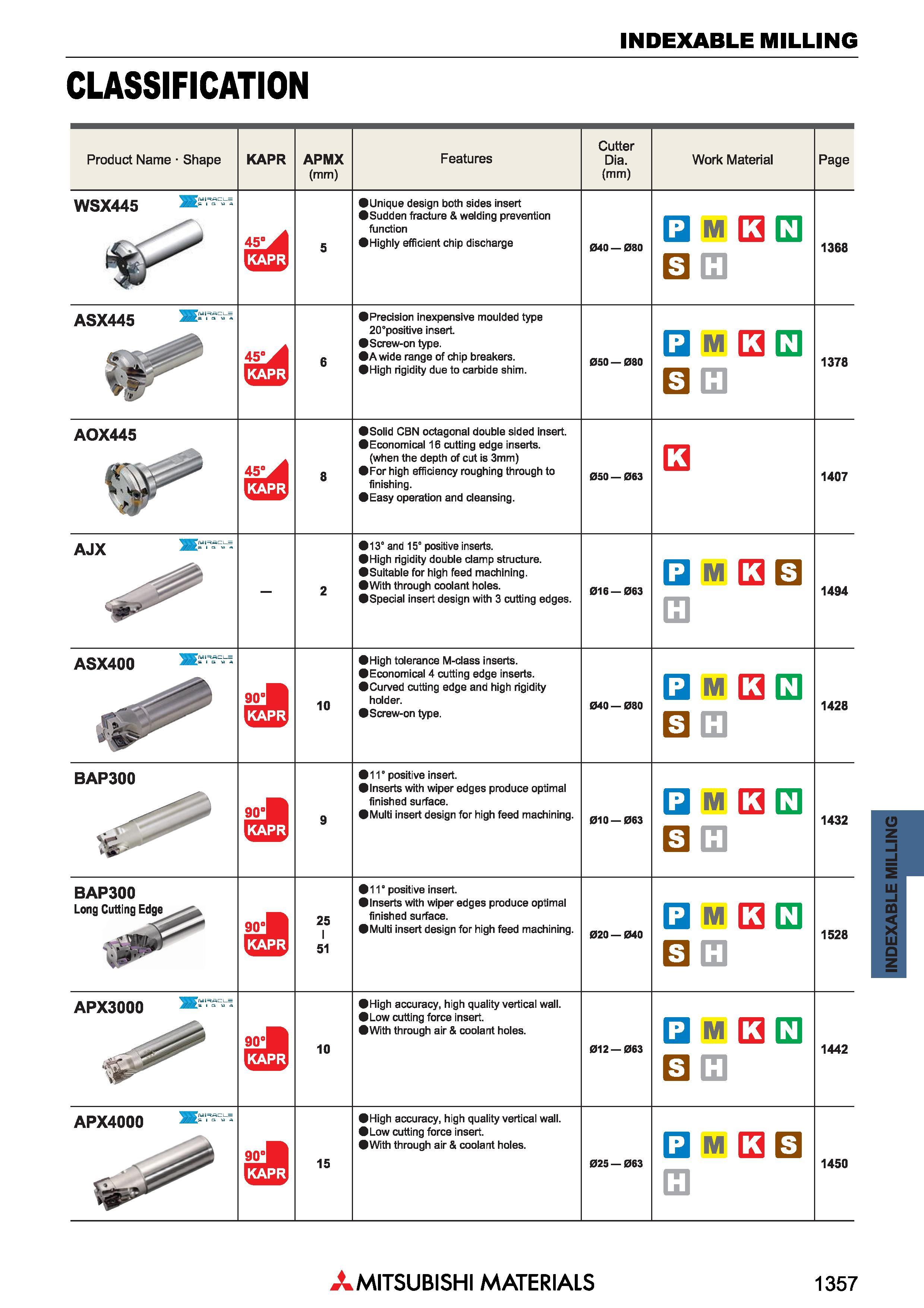

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ CLASSIFICATION Product Name Shape KAPR APMX (mm) Features Cutter Dia. (mm) Обрабатываемые материалы Work Material Page WSX445 mrs i 45° 5 Unique design both sides insert Sudden fracture & welding prevention function Highly efficient chip discharge 040 080 M m 1368 ASX445 mrs i 45° 6 Precision inexpensive moulded type 20 "positive insert. Screw-on type. A wide range of chip breakers. High rigidity due to carbide shim. 050 080 Q M Q m 1378 AOX445 45° 8 Solid CBN octagonal double sided insert. Economical 16 cutting edge inserts, (when the depth of cut is 3mm) For high efficiency roughing through to finishing. Easy operation and cleansing. 050 063 1407 AJX 2 13° and 15° positive inserts. High rigidity double clamp structure. Suitable for high feed machining. With through coolant holes. Special insert design with 3 cutting edges. 016 063 M 1494 ASX400 90°B 10 High tolerance M-class inserts. Economical 4 cutting edge inserts. Curved cutting edge and high rigidity holder. Screw-on type. 040 080 M m 1428 BAP300 90°B 9 11° positive insert. Inserts with wiper edges produce optimal finished surface. Multi insert design for high feed machining. 010 063 M m 1432 BAP300 “3 90°B 25 I 51 11° positive insert. Inserts with wiper edges produce optimal finished surface. Multi insert design for high feed machining. 020 040 M m 1528 APX3000 mrrs i 90°B 10 High accuracy, high quality vertical wall. Low cutting force insert. With through air & coolant holes. 012 063 M m 1442 APX4000 mrs i 90"B 15 High accuracy, high quality vertical wall. Low cutting force insert. With through air & coolant holes. 025 063 M m 1450 Mitsubishi Materials 1357 INDEXABLE MILLING
