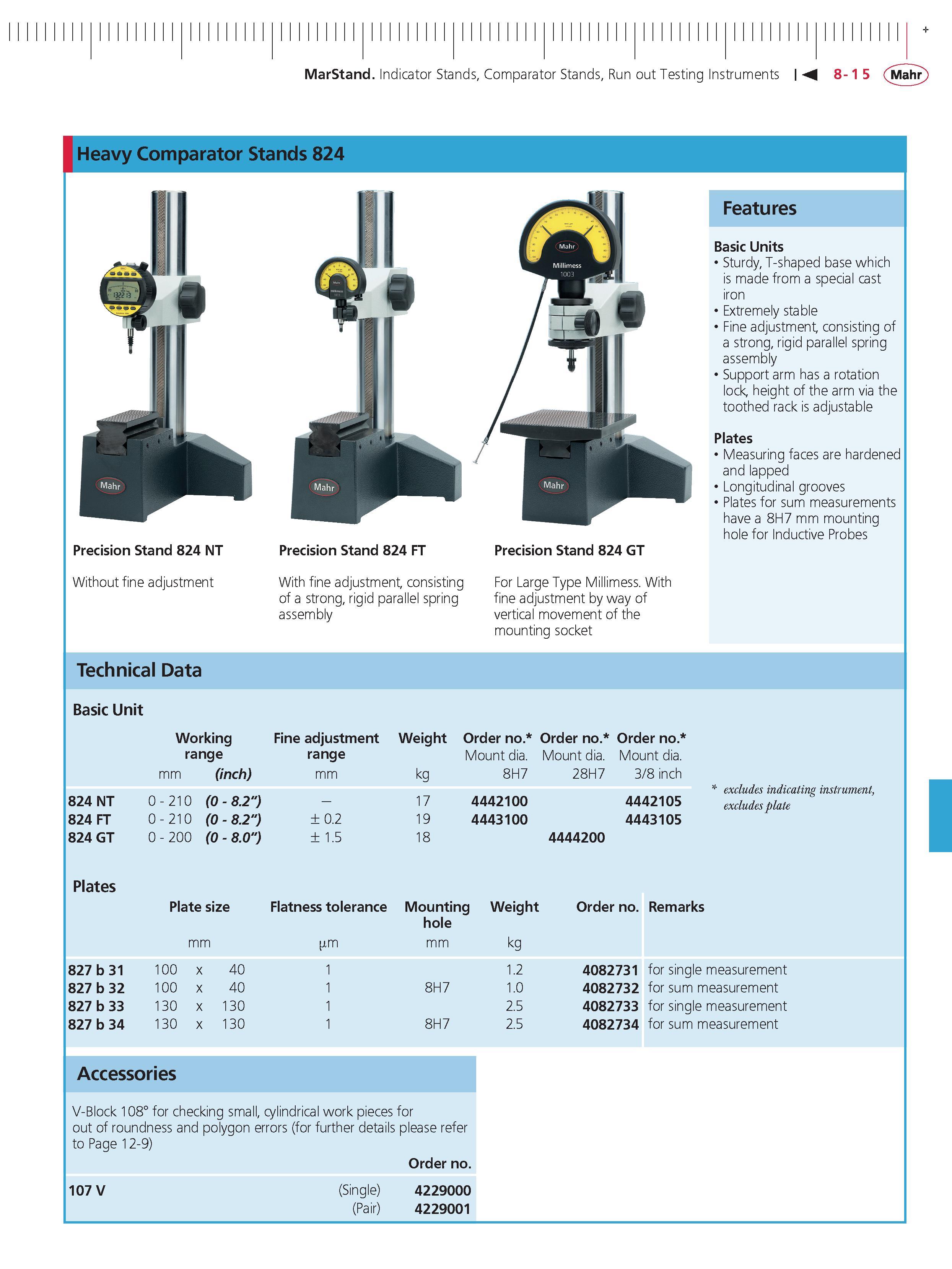

MarStand Indicator Stands Comparator Stands Run out Testing Instruments M 8-15 Mahr Heavy Comparator Stands 824 Features Basic Units Sturdy T-shaped base which is made from a special cast iron Extremely stable Fine adjustment consisting of a strong rigid parallel spring assembly Support arm has a rotation lock height of the arm via the toothed rack is adjustable Plates Measuring faces are hardened and lapped Longitudinal grooves Plates for sum measurements have a 8H7 mm mounting hole for Inductive Probes Precision Stand 824 NT Without fine adjustment Precision Stand 824 FT With fine adjustment consisting of a strong rigid parallel spring assembly Precision Stand 824 GT For Large Type Millimess With fine adjustment by way of vertical movement of the mounting socket Technical Data Basic Unit Working Fine adjustment Weight Order no. Order no. Order no. range range Mount dia. Mount dia. Mount dia. mm (inch) mm kg 8H7 28H7 3 8 inch excludes indicating 824 NT 0 - 210 (0 - 8.2") 17 4442100 4442105 excludes plate 824 FT 0 - 210 (0 - 8.2") 0.2 19 4443100 4443105 824 GT 0 - 200 (0 - 8.0") 1.5 18 4444200 Plates Plate size Flatness tolerance Mounting Weight Order no. Remarks hole mm m mm kg 827 b 31 100 x 40 1 1.2 4082731 for single measurement 827 b 32 100 x 40 1 8H7 1.0 4082732 for sum measurement 827 b 33 130 x 130 1 2.5 4082733 for single measurement 827 b 34 130 x 130 1 8H7 2.5 4082734 for sum measurement Accessories V-Block 108 for checking small cylindrical work pieces for out of roundness and polygon errors (for further details please refer to Page 12-9) Order no. 107 V (Single) (Pair) 4229000 4229001
