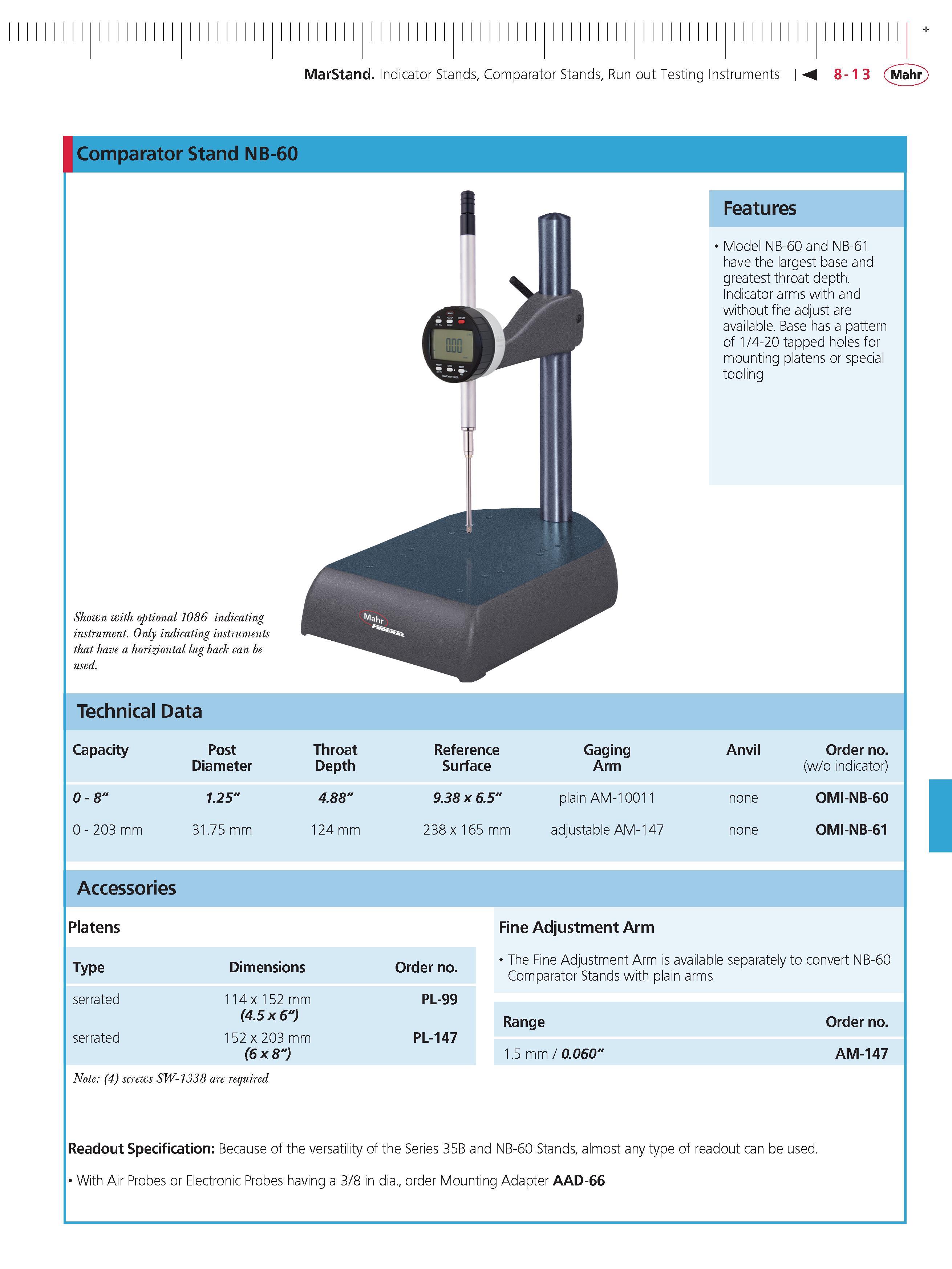

MarStand Indicator Stands Comparator Stands Run out Testing Instruments M 8-13 Mahr Comparator Stand NB-60 Shown with optional 1086 indicating instrument. Only indicating instruments that have a horiziontal lug back can be used. Features Model NB-60 and NB-61 have the largest base and greatest throat depth. Indicator arms with and without fne adjust are available. Base has a pattern of 1 4-20 tapped holes for mounting platens or special tooling Technical Data Capacity 0 - 8" 0 - 203 mm Post Throat Reference Gaging Anvil Order no. Diameter Depth Surface Arm (w o indicator) 1.25" 4.88" 9.38x 6.5" plain AM-10011 none OMI-NB-60 31.75 mm 124 mm 238 x 165 mm adjustable AM-147 none OMI-NB-61 Accessories Platens Type Dimensions Order no. serrated 114 x 152 mm PL-99 (4.5 x 6") serrated 152 x 203 mm PL-147 (6 x 8") Fine Adjustment Arm The Fine Adjustment Arm is available separately to convert NB-60 Comparator Stands with plain arms Range 1.5 mm 0.060" Order no. AM-147 Note (4) screws SW-1338 are required Readout Specification Because of the versatility of the Series 35B and NB-60 Stands almost any type of readout can be used. With Air Probes or Electronic Probes having a 3 8 in dia. order Mounting Adapter AAD-66
