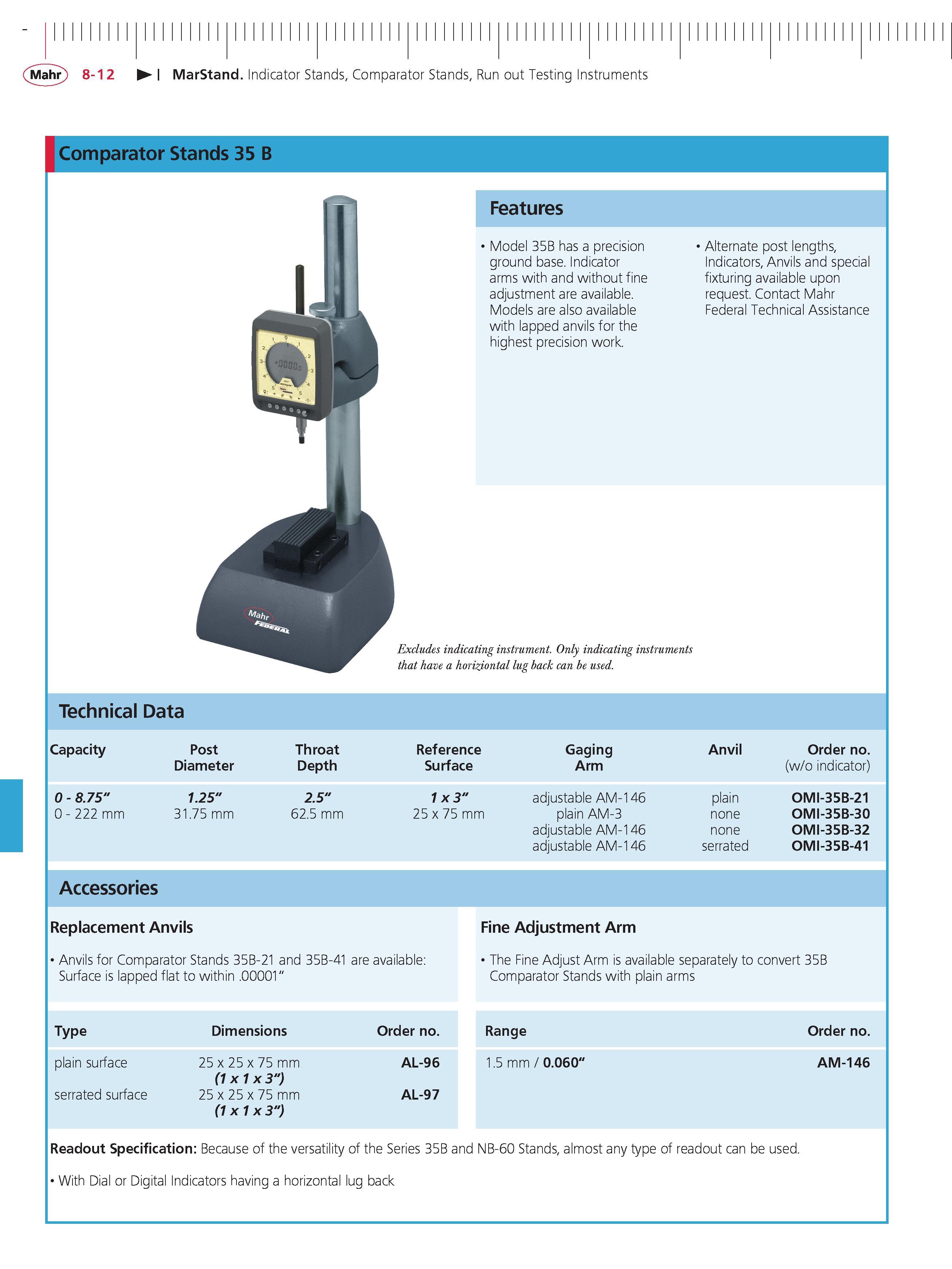

Mahr 8-12 MarStand Indicator Stands Comparator Stands Run out Testing Instruments Comparator Stands 35 B Features Model 35B has a precision ground base. Indicator arms with and without fine adjustment are available. Models are also available with lapped anvils for the highest precision work. Alternate post lengths Indicators Anvils and special fixturing available upon request. Contact Mahr Federal Technical Assistance Excludes indicating instrument. Only indicating instruments that have a horizontal lug back can be used. Technical Data Capacity 0 - 8.75" 0 - 222 mm Post Diameter 1.25" 31.75 mm Throat Depth 2.5" 62.5 mm Reference Surface 1 x 3" 25 x 75 mm Gaging Arm adjustable AM-146 plain AM-3 adjustable AM-146 adjustable AM-146 Anvil plain none none serrated Order no. (w o indicator) OMI-35B-21 OMI-35B-30 OMI-35B-32 OMI-35B-41 Accessories Type Dimensions Order no. plain surface 25 x 25 x 75 mm AL-96 (1 x 1 x 3") serrated surface 25 x 25 x 75 mm AL-97 (1 x 1 x 3") Readout Specification Because of the versatility of the Series 35B and NB-60 Stands almost any type of readout can be used. With Dial or Digital Indicators having a horizontal lug back
