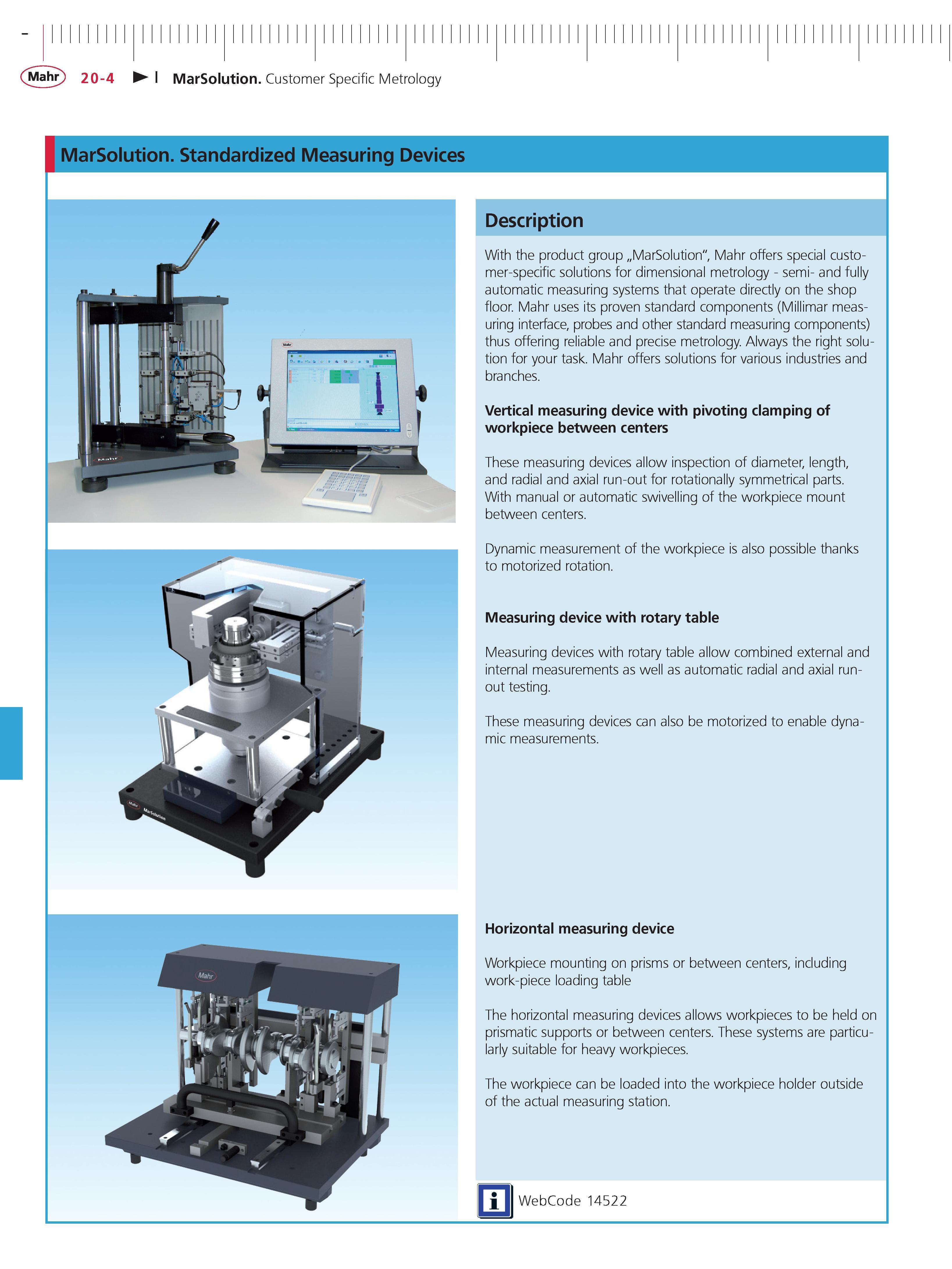

Mahr 20-4 MarSolution Customer Specific Metrology MarSolution Standardized Measuring Devices Description With the product group MarSolution" Mahr offers special customer-specific solutions for dimensional metrology - semi- and fully automatic measuring systems that operate directly on the shop floor. Mahr uses its proven standard components (Millimar measuring interface probes and other standard measuring components) thus offering reliable and precise metrology. Always the right solution for your task. Mahr offers solutions for various industries and branches. Vertical measuring device with pivoting clamping of workpiece between centers These measuring devices allow inspection of diameter length and radial and axial run-out for rotationally symmetrical parts. With manual or automatic swivelling of the workpiece mount between centers. Dynamic measurement of the workpiece is also possible thanks to motorized rotation. Measuring device with rotary table Measuring devices with rotary table allow combined external and internal measurements as well as automatic radial and axial runout testing. These measuring devices can also be motorized to enable dynamic measurements. Horizontal measuring device Workpiece mounting on prisms or between centers including work-piece loading table The horizontal measuring devices allows workpieces to be held on prismatic supports or between centers. These systems are particularly suitable for heavy workpieces. The workpiece can be loaded into the workpiece holder outside of the actual measuring station. WebCode 14522
