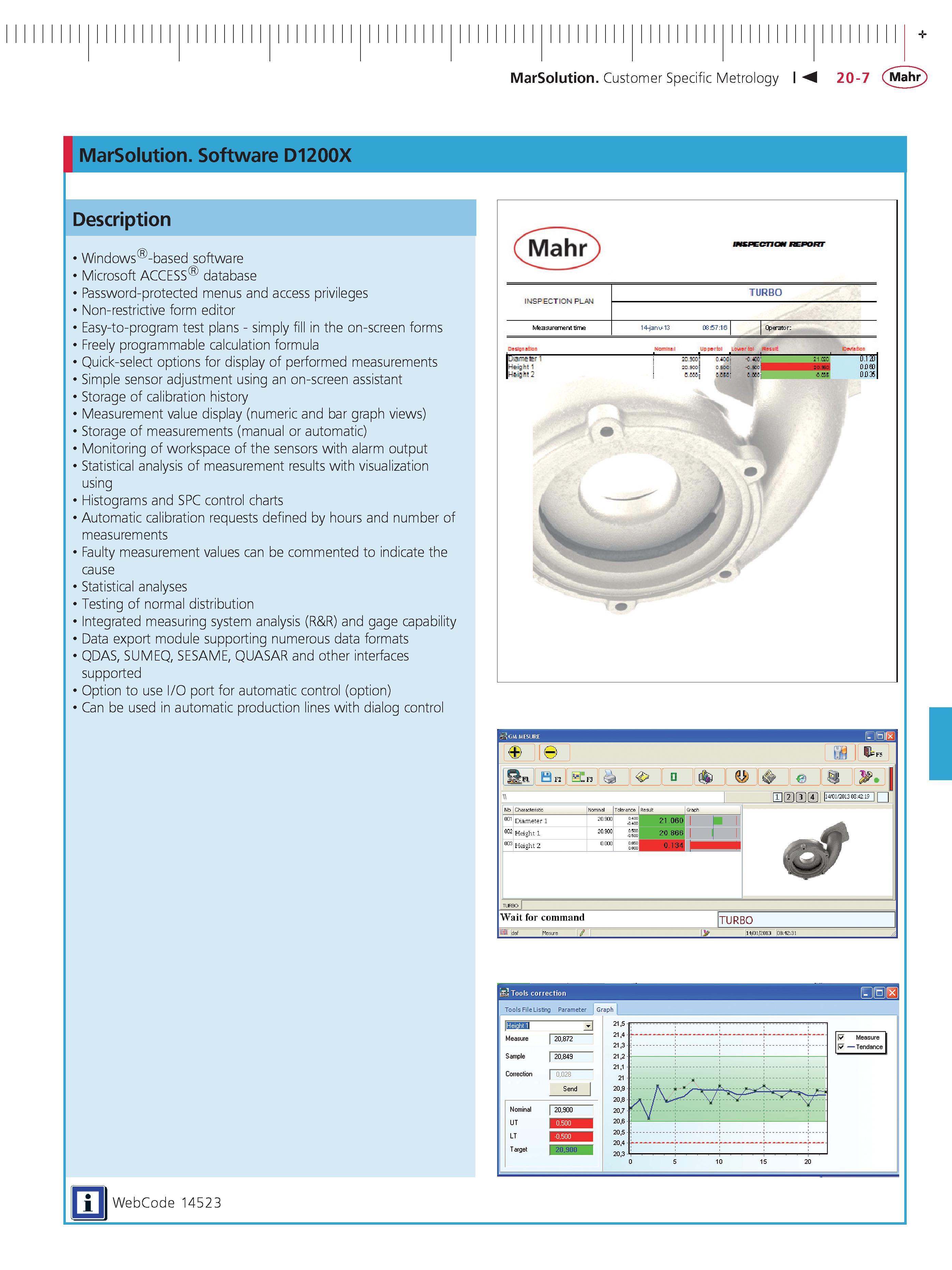

MarSolution Customer Specific Metrology M 20-7 Mahr MarSolution Software D1200X Description Windows -based software Microsoft ACCESS database Password-protected menus and access privileges Non-restrictive form editor Easy-to-program test plans - simply fill in the on-screen forms Freely programmable calculation formula Quick-select options for display of performed measurements Simple sensor adjustment using an on-screen assistant Storage of calibration history Measurement value display (numeric and bar graph views) Storage of measurements (manual or automatic) Monitoring of workspace of the sensors with alarm output Statistical analysis of measurement results with visualization using Histograms and SPC control charts Automatic calibration requests defined by hours and number of measurements Faulty measurement values can be commented to indicate the cause Statistical analyses Testing of normal distribution Integrated measuring system analysis (R&R) and gage capability Data export module supporting numerous data formats QDAS SUMEQ SESAME QUASAR and other interfaces supported Option to use O port for automatic control (option) Can be used in automatic production lines with dialog control U 0 MESURE S ( P e II W 11 111 2 1 3 1 4 114 01 2013 03.4119 H Characteristic Nominal Tolerance Result Graph n Diameter 1 20.900 21 060 1 1 002 Height 1 20.900 -S 20 866 1 003 Height 2 0.000 am 0.134 1 TURBO Wait for command TURBO m Idtf iMesure g 14 01 2013 08:12:31 HI WebCode 14523
