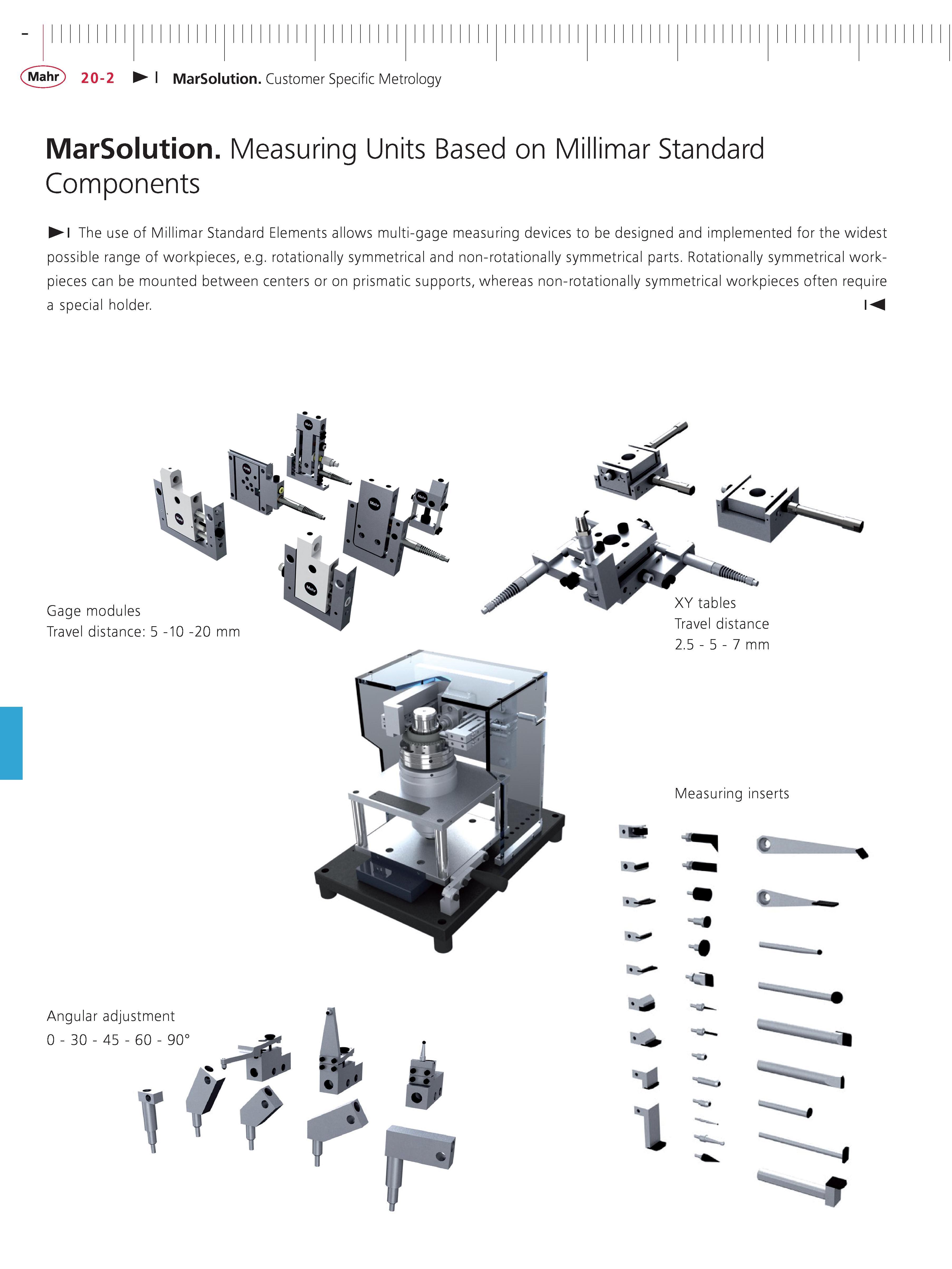

Mahr 20-2 MarSolution Customer Specific Metrology MarSolution Measuring Units Based on Millimar Standard Components The use of Millimar Standard Elements allows multi-gage measuring devices to be designed and implemented for the widest possible range of workpieces e.g. rotationally symmetrical and non-rotationally symmetrical parts. Rotationally symmetrical workpieces can be mounted between centers or on prismatic supports whereas non-rotationally symmetrical workpieces often require a special holder. IM Angular adjustment 2.5 - 5 - 7 mm Measuring inserts
