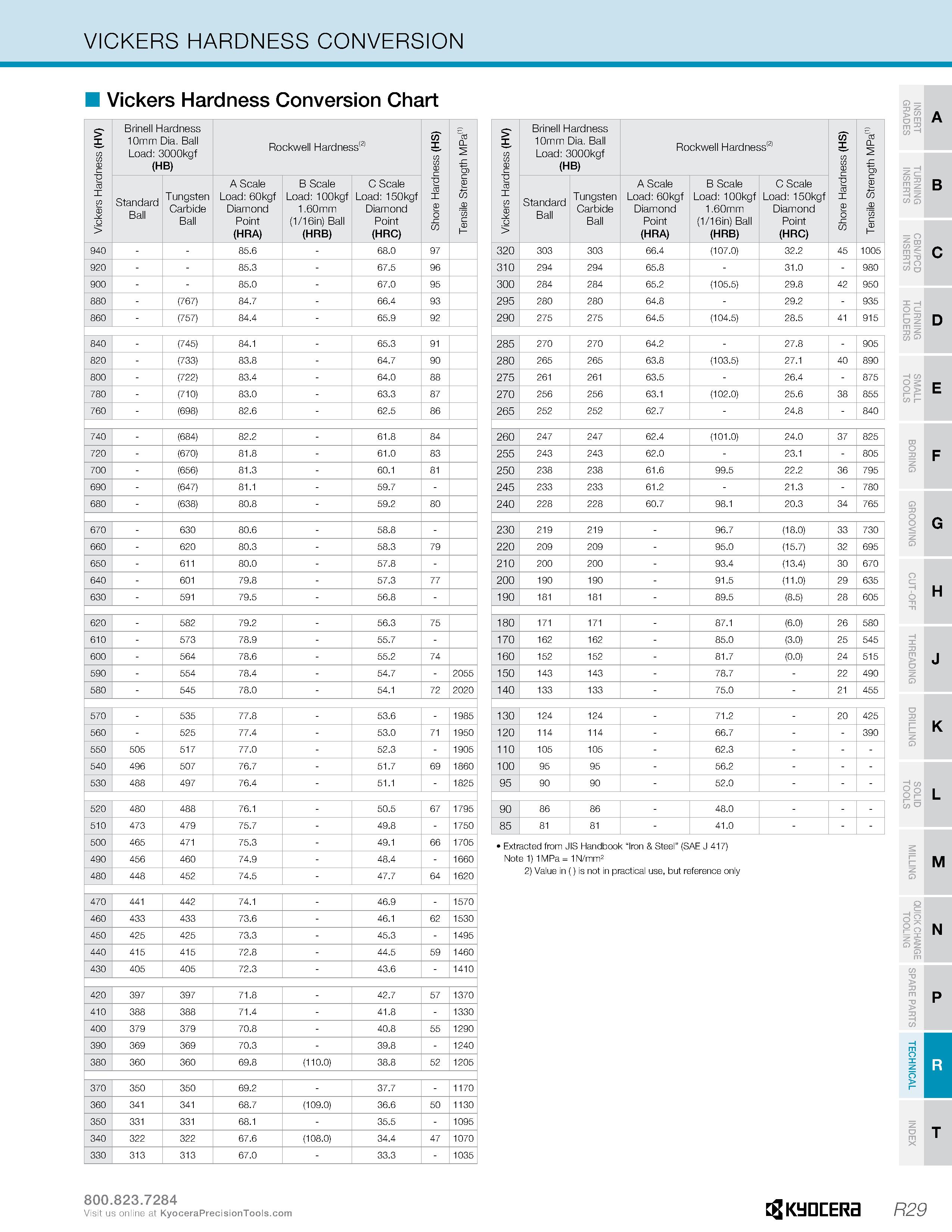

VICKERS HARDNESS CONVERSION Vickers Hardness Conversion Chart Vickers Hardness (HV) Brinell Hardness 10mm Dia. Ball Load: 3000kgf (HB) Rockwell Hardness(2) Shore Hardness (HS) Tensile Strength MPa(1) Standard Ball Tungsten Carbide Ball A Scale Load: 60kgf Diamond Point (HRA) B Scale Load: 100kgf 1.60mm (1/16in) Ball (HRB) C Scale Load: 150kgf Diamond Point (HRC) 940 85.6 68.0 97 920 85.3 67.5 96 900 85.0 67.0 95 880 (767) 84.7 66.4 93 860 (757) 84.4 65.9 92 840 (745) 84.1 65.3 91 820 (733) 83.8 64.7 90 800 (722) 83.4 64.0 88 780 (710) 83.0 63.3 87 760 (698) 82.6 62.5 86 740 (684) 82.2 61.8 84 720 (670) 81.8 61.0 83 700 (656) 81.3 60.1 81 690 (647) 81.1 59.7 680 (638) o 8 59.2 80 670 630 80.6 58.8 660 620 80.3 58.3 79 650 611 80.0 57.8 640 601 79.8 57.3 77 630 591 79.5 56.8 620 582 79.2 56.3 75 610 573 78.9 55.7 600 564 78.6 55.2 74 590 554 78.4 54.7 2055 580 545 78.0 54.1 72 2020 570 535 77.8 53.6 1985 560 525 77.4 53.0 71 1950 550 505 517 77.0 52.3 1905 540 496 507 76.7 51.7 69 1860 530 488 497 76.4 51.1 1825 520 480 488 76.1 50.5 67 1795 510 473 479 75.7 49.8 1750 500 465 471 75.3 49.1 66 1705 490 456 460 74.9 48.4 1660 480 448 452 74.5 47.7 64 1620 470 441 442 74.1 46.9 1570 460 433 433 73.6 46.1 62 1530 450 425 425 73.3 45.3 1495 440 415 415 72.8 44.5 59 1460 430 405 405 72.3 43.6 1410 420 397 397 71.8 42.7 57 1370 410 388 388 71.4 41.8 1330 400 379 379 70.8 40.8 55 1290 390 369 369 70.3 39.8 1240 380 360 360 69.8 (110.0) 38.8 52 1205 370 350 350 69.2 37.7 1170 360 341 341 68.7 (109.0) 36.6 50 1130 350 331 331 68.1 35.5 1095 340 322 322 67.6 (108.0) 34.4 47 1070 330 313 313 67.0 33.3 1035 Vickers Hardness (HV) Brinell Hardness 10mm Dia. Ball Load: 3000kgf (HB) Rockwell Hardness(2) Shore Hardness (HS) Tensile Strength MPa(1) m T C/5 1 TURNING INSERTS Standard Ball Tungsten Carbide Ball A Scale Load: 60kgf Diamond Point (HRA) B Scale Load: 100kgf 1.60mm (1/16in) Ball (HRB) C Scale Load: 150kgf Diamond Point (HRC) CBN/PCD INSERTS 320 303 303 66.4 (107.0) 32.2 45 1005 310 294 294 65.8 31.0 980 300 284 284 65.2 (105.5) 29.8 42 950 295 280 280 64.8 29.2 935 TURNING HOLDERS 290 275 275 64.5 (104.5) 28.5 41 915 285 270 270 64.2 27.8 905 280 265 265 63.8 (103.5) 27.1 40 890 SMALL TOOLS 275 261 261 63.5 26.4 875 270 256 256 63.1 (102.0) 25.6 38 855 265 252 252 62.7 24.8 840 260 247 247 62.4 (101.0) 24.0 37 825 BORING 255 243 243 62.0 23.1 805 250 238 238 61.6 99.5 22.2 36 795 245 233 233 61.2 21.3 780 240 228 228 60.7 98.1 20.3 34 765 GROOVING 230 219 219 96.7 (18.0) 33 730 220 209 209 95.0 (15.7) 32 695 210 200 200 93.4 (13.4) 30 670 CUT-OFF 200 190 190 91.5 (11.0) 29 635 190 181 181 89.5 (8.5) 28 605 180 171 171 87.1 (6.0) 26 580 170 162 162 85.0 (3.0) 25 545 THREADING 160 152 152 81.7 (0.0) 24 515 150 143 143 78.7 22 490 140 133 133 75.0 21 455 130 124 124 71.2 20 425 120 114 114 66.7 390 110 105 105 62.3 - 100 95 95 56.2 - 95 90 90 52.0 - 90 86 86 48.0 - 85 81 81 41.0 - A B C D E G H K Extracted from JIS Handbook “Iron & Steel” (SAE J 417) Note 1) 1MPa = 1N/mm2 2) Value in ( ) is not in practical use, but reference only M N P T F J L Visit us online at Kyocera R29
