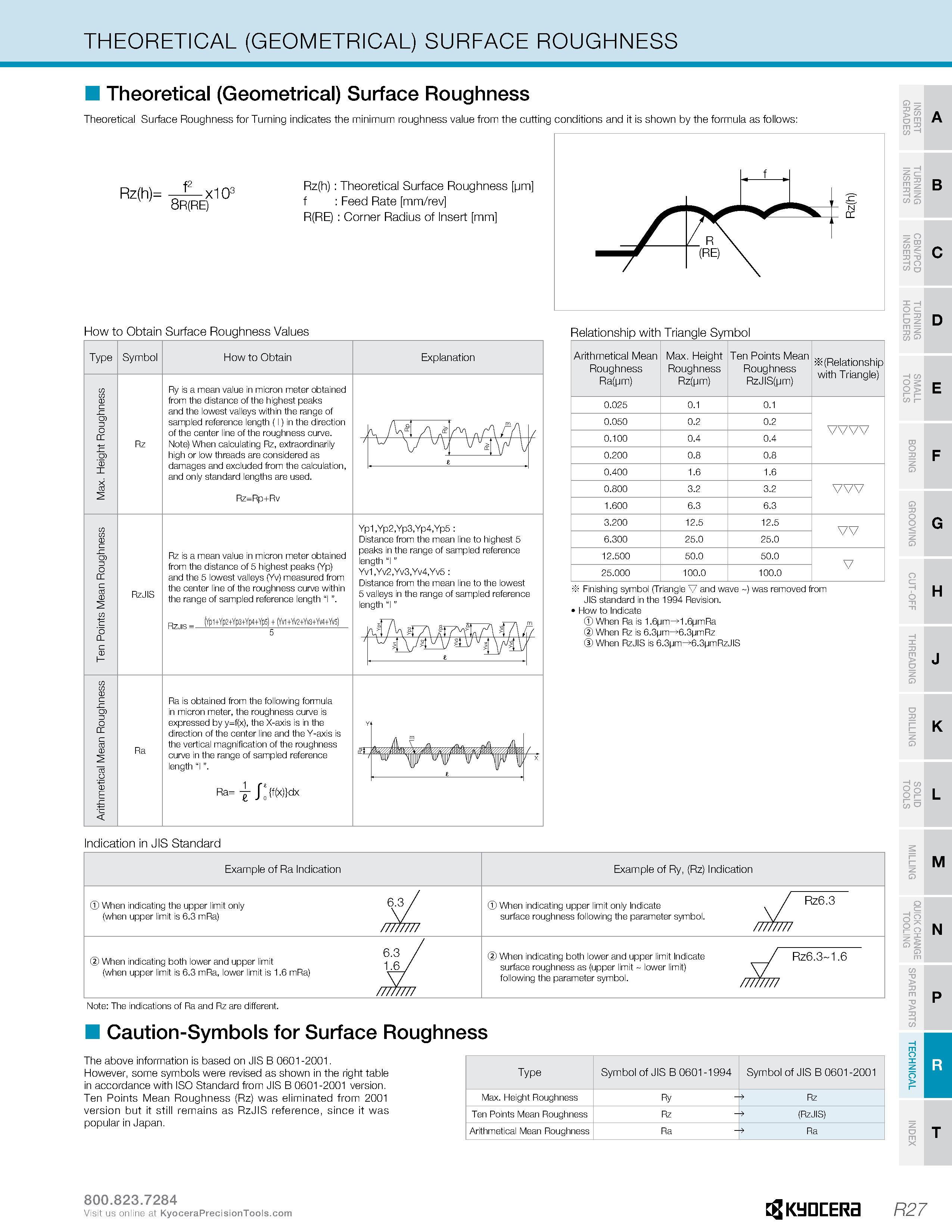

THEORETICAL (GEOMETRICAL) SURFACE ROUGHNESS Theoretical (Geometrical) Surface 3oughness Theoretical Surface Roughness for Turning indicates the minimum roughness value from the cutting conditions and it is shown by the formula as follows: Rz(h)= 8R(RE) x103 Rz(h) : Theoretical Surface Roughness pm f : Feed Rate mm/rev R(RE) : Corner Radius of Insert mm How to Obtain Surface Roughness Values Type Symbol How to Obtain Ry is a mean value in micron meter obtained from the distance of the highest peaks and the lowest valleys within the range of sampled reference length ( l ) in the direction of the center line of the roughness curve. Note) When calculating Rz, extraordinarily high or low threads are considered as damages and excluded from the calculation, and only standard lengths are used. Rz=Rp+Rv Rz is a mean value in micron meter obtained from the distance of 5 highest peaks (Yp) and the 5 lowest valleys (Yv) measured from the center line of the roughness curve within the range of sampled reference length “l ". Rz jis (Ypl+Yp2+Yp3+Yp4+Yp5) + (Yvl+Yv2+Yv3+Yv4+Yv5) Ra is obtained from the following formula in micron meter, the roughness curve is expressed by y=f(x), the X-axis is in the direction of the center line and the Y-axis is the vertical magnification of the roughness curve in the range of sampled reference length “l". 1 1 fz Ra= -g- j o f(x) dx Explanation Yp1,Yp2,Yp3,Yp4,Yp5 : Distance from the mean line to highest 5 peaks in the range of sampled reference length “l" Yv1,Yv2,Yv3,Yv4,Yv5 : Distance from the mean line to the lowest 5 valleys in the range of sampled reference length “l" A Relationship with Triangle Symbol Arithmetical Mean Roughness Ra(pm) Max. Height Roughness Rz(pm) Ten Points Mean Roughness RzJIS(pm) (Relationship with Triangle) 0.025 0.1 0.1 0.050 0.2 0.2 0.100 0.4 0.4 0.200 0.8 0.8 0.400 1.6 1.6 0.800 3.2 3.2 v vv 1.600 6.3 6.3 3.200 12.5 12.5 6.300 25.0 25.0 12.500 50.0 50.0 25.000 100.0 100.0 Finishing symbol (Triangle v and wave ) was removed from JIS standard in the 1994 Revision. How to Indicate When Ra is 1.6pm 1.6pmRa When Rz is 6.3pm 6.3pmRz When RzJIS is 6.3pm 6.3pmRzJIS Indication in JIS Standard Example of Ra Indication Example of Ry, (Rz) Indication When indicating the upper limit only / (when upper limit is 6.3 mRa) \J //////// When indicating upper limit only Indicate . / Rz6-3 surface roughness following the parameter symbol. V/ //////// 6.3 / When indicating both lower and upper limit 16/ (when upper limit is 6.3 mRa, lower limit is 1.6 mRa) v 7 ///)//// When indicating both lower and upper limit Indicate / Rz6.3 1.6 surface roughness as (upper limit lower limit) \ / following the parameter symbol. DO Tl SD A B C D S s O A E G H K M N P Note: The indications of Ra and Rz are different. Caution-Symbols for Surface 3oughness The above information is based on JIS B 0601-2001. However, some symbols were revised as shown in the right table in accordance with ISO Standard from JIS B 0601-2001 version. Ten Points Mean Roughness (Rz) was eliminated from 2001 version but it still remains as RzJIS reference, since it was popular in Japan. Type Symbol of JIS B 0601-1994 Symbol of JIS B 0601-2001 Max. Height Roughness Ry - Rz Ten Points Mean Roughness Rz - (RzJIS) Arithmetical Mean Roughness Ra - Ra T Rz F RzJIS 5 J Y Ra X L R27 Visit us online at
