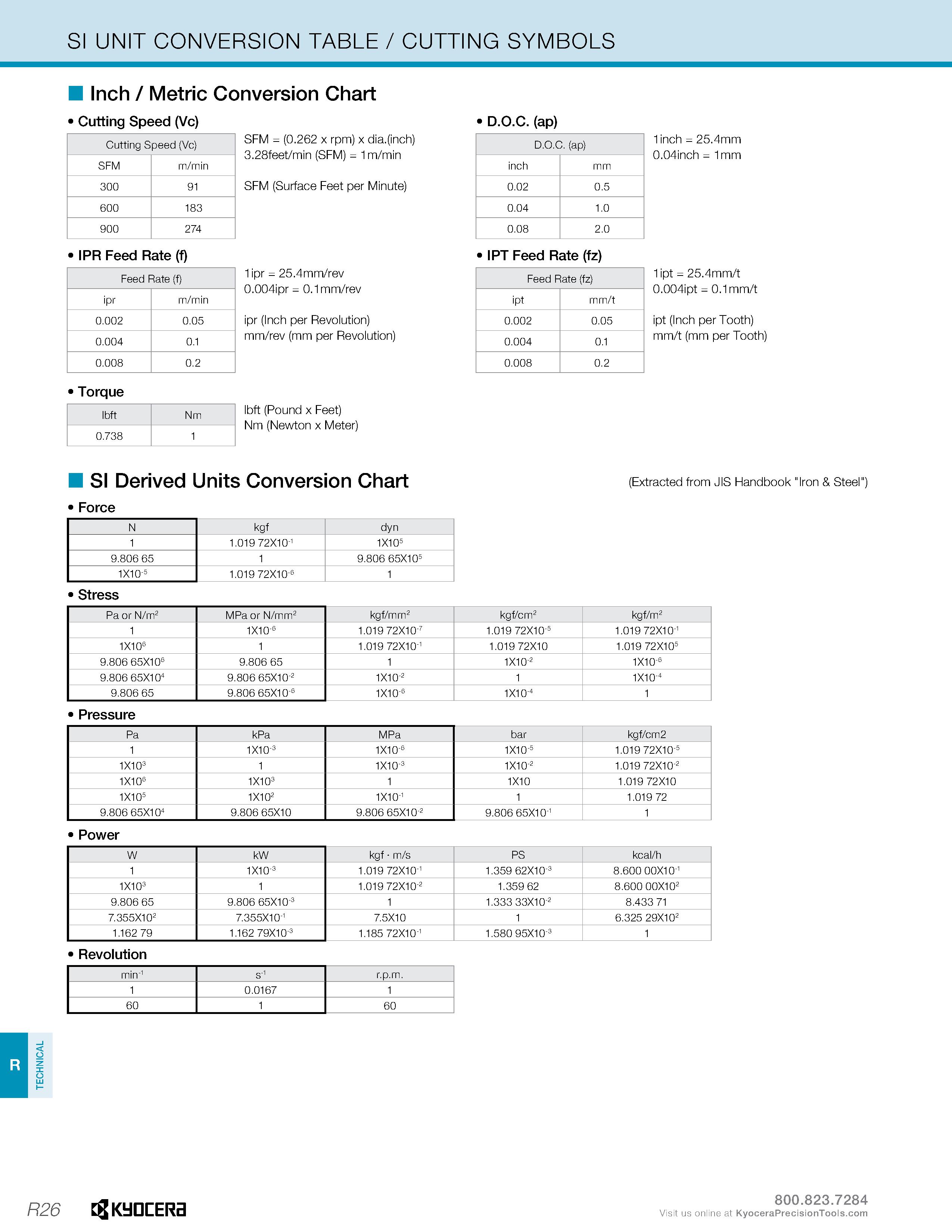

TECHNICAL R26 SI UNIT CONVERSION TABLE / CUTTING SYMBOLS Inch / Metric Conversion Chart Cutting Speed (Vc) D.0.C. (ap) 1inch = 25.4mm 0.04inch = 1mm Cutting Speed (Vc) SFM = (0.262 x rpm) x dia.(inch) 3.28feet/min (SFM) = 1m/min D.O.C. (ap) SFM m/min inch mm 300 91 SFM (Surface Feet per Minute) 0.02 0.5 600 183 0.04 1.0 900 274 0.08 2.0 IPR Feed Rate (f) IPT Feed Rate (fz) 1ipt = 25.4mm/t 0.004ipt = 0.1mm/t ipt (Inch per Tooth) mm/t (mm per Tooth) Feed Rate (f) 1ipr = 25.4mm/rev 0.004ipr = 0.1mm/rev Feed Rate (fz) ipr m/min ipt mm/t 0.002 0.05 ipr (Inch per Revolution) 0.002 0.05 0.004 0.1 mm/rev (mm per Revolution) 0.004 0.1 0.008 0.2 0.008 0.2 Torque lbft (Pound x Feet) Nm (Newton x Meter) SI Derived Units Conversion Chart (Extracted from JIS Handbook "Iron & Steel") Force N kgf dyn 1 1.019 72X10-1 1X105 9.806 65 1 9.806 65X105 1X10-5 1.019 72X10-6 1 lbft Nm 0.738 1 Stress Pa or N/m2 MPa or N/mm2 kgf/mm2 kgf/cm2 kgf/m2 1 1X10-6 1.019 72X10-7 1.019 72X10-5 1.019 72X10-1 1X106 1 1.019 72X10-1 1.019 72X10 1.019 72X105 9.806 65X106 9.806 65 1 1X10-2 1X10-6 9.806 65X104 9.806 65X10-2 1X10-2 1 1X10-4 9.806 65 9.806 65X10-6 1X10-6 1X10-4 1 Pressure Pa kPa MPa bar kgf/cm2 1 1X10-3 1X10-6 1X10-5 1.019 72X10-5 1X103 1 1X10-3 1X10-2 1.019 72X10-2 1X106 1X103 1 1X10 1.019 72X10 1X105 1X102 1X10-1 1 1.019 72 9.806 65X104 9.806 65X10 9.806 65X10-2 9.806 65X10-1 1 Power W kW kgf m/s PS kcal/h 1 1X10-3 1.019 72X10-1 1.359 62X10-3 8.600 00X10-1 1X103 1 1.019 72X10-2 1.359 62 8.600 00X102 9.806 65 9.806 65X10-3 1 1.333 33X10-2 8.433 71 7.355X102 7.355X10-1 7.5X10 1 6.325 29X102 1.162 79 1.162 79X10-3 1.185 72X10-1 1.580 95X10-3 1 Revolution min-1 s-1 r.p.m. 0.0167 1 60 1 60 Visit us online at cS KyDCERa
