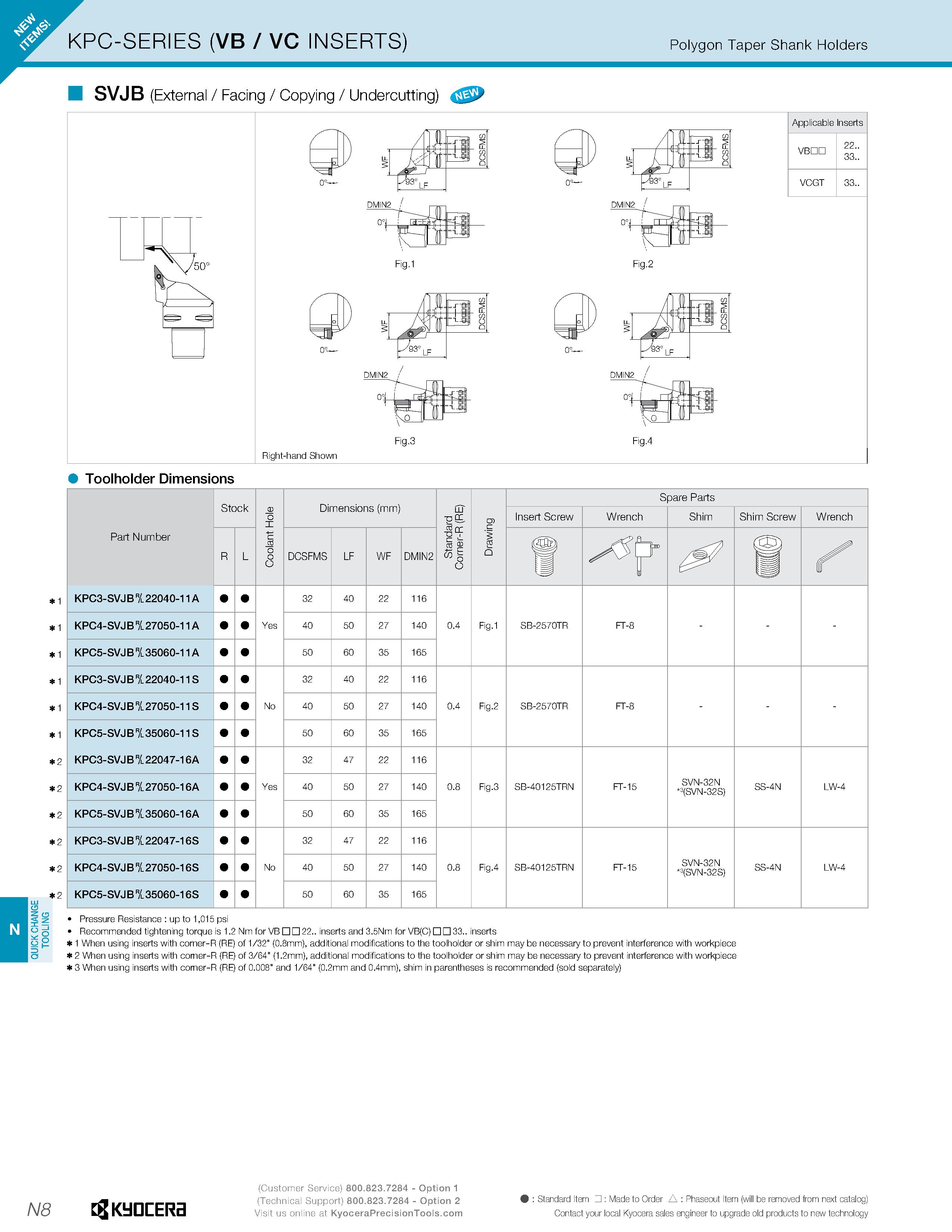

QUICK CHANGE TOOLING KPC-SERIES (VB / VC INSERTS) Polygon Taper Shank Holders SVJ B (External / Facing / Copying / Undercutting) Toolholder Dimensions Pressure Resistance : up to 1,015 psi Recommended tightening torque is 1.2 Nm for VB 22.. inserts and 3.5Nm for VB(C) 33.. inserts 1 When using inserts with corner-R (RE) of 1/32" (0.8mm), additional modifications to the toolholder or shim may be necessary to prevent interference with workpiece 2 When using inserts with comer-R (RE) of 3/64" (1.2mm), additional modifications to the toolholder or shim may be necessary to prevent interference with workpiece 3 When using inserts with comer-R (RE) of 0.008" and 1/64" (0.2mm and 0.4mm), shim in parentheses is recommended (sold separately) N8 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
