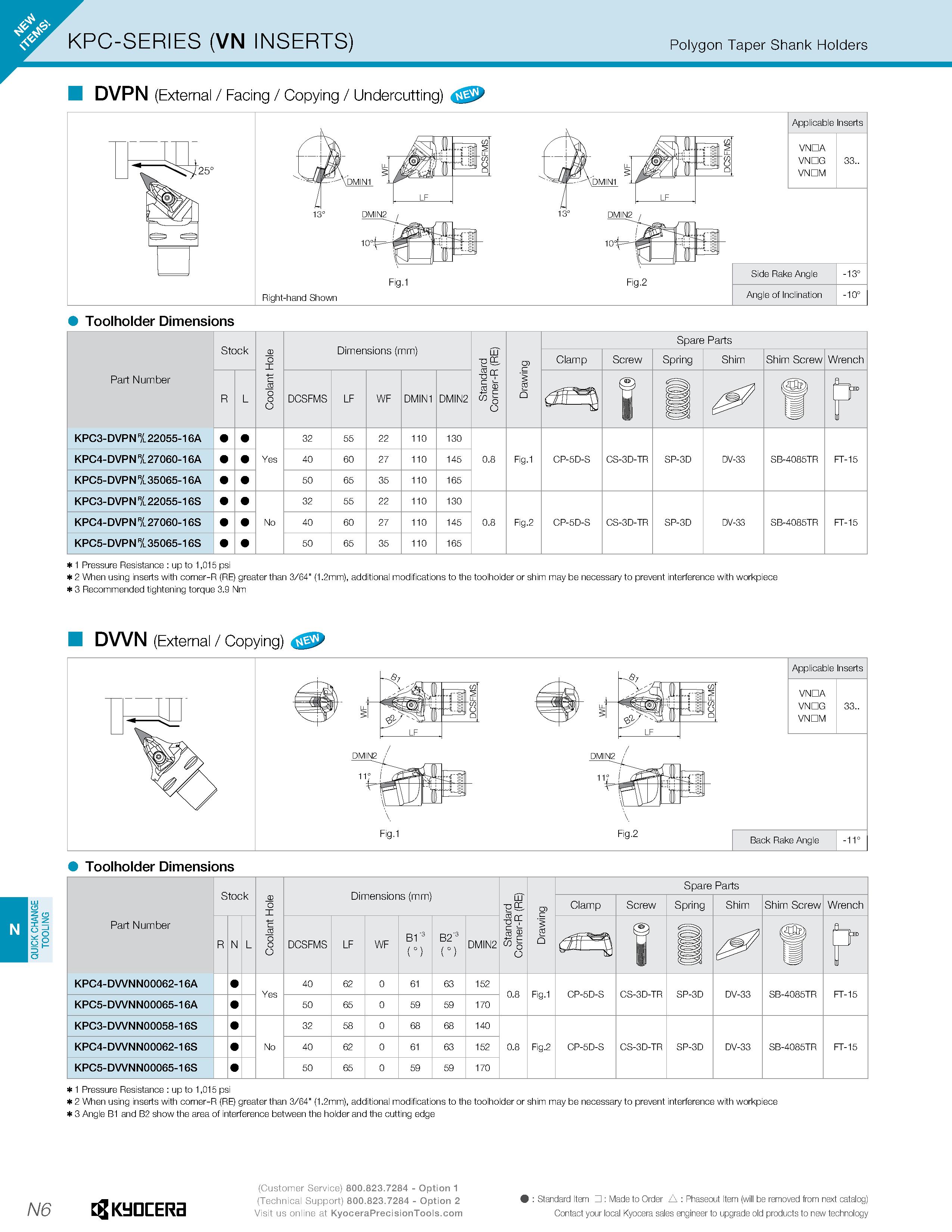

QUICK CHANGE TOOLING KPC-SERIES (VN INSERTS) Polygon Taper Shank Holders DVPN (External / Facing / Copying / Undercutting) Toolholder Dimensions Part Number KPC3-DVPN 7l 22055-16A Stock Coolant Hole Dimensions (mm) Standard Corner-R (RE) Drawing Spare Parts Clamp Screw Spring Shim Shim Screw Wrench R L DCSFMS LF WF DMIN1 DMIN2 I 1 u Yes 32 55 22 110 130 0.8 Fig.1 CP-5D-S CS-3D-TR SP-3D DV-33 SB-4085TR FT-15 KPC4-DVPN 7l 27060-16A 40 60 27 110 145 KPC5-DVPN 7l 35065-16A 50 65 35 110 165 KPC3-DVPN % 22055-16S 32 55 22 110 130 KPC4-DVPN 7.27060-16S No 40 60 27 110 145 0.8 Fig.2 CP-5D-S CS-3D-TR SP-3D DV-33 SB-4085TR FT-15 KPC5-DVPN 7.35065-16S 50 65 35 110 165 1 Pressure Resistance : up to 1,015 psi 2 When using inserts with corner-R (RE) greater than 3/64" (1.2mm), additional mod 3 Recommended tightening torque 3.9 Nm ications to the toolholder or shim may be necessary to prevent interference with workpiece H DWN (External / Copying) Toolholder Dimensions 1 Pressure Resistance : up to 1,015 psi 2 When using inserts with corner-R (RE) greater than 3/64" (1.2mm), additional modifications to the toolholder or shim may be necessary to prevent interference with workpiece 3 Angle B1 and B2 show the area of interference between the holder and the cutting edge N6 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
