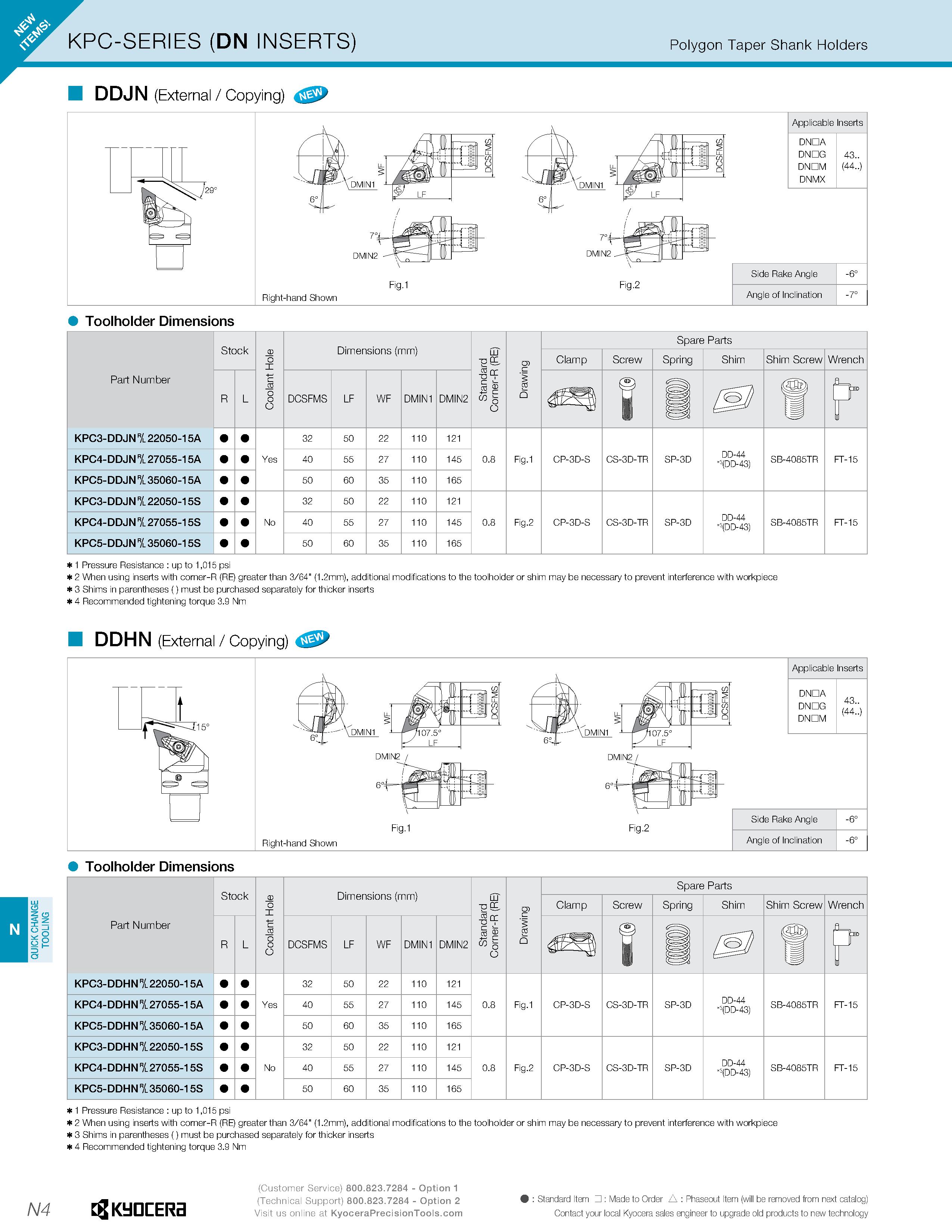

QUICK CHANGE TOOLING KPC-SERIES (DN INSERTS) Polygon Taper Shank Holders DDJN (External / Copying) Applicable Inserts DNDA DNDG 43.. DNDM (44..) DNMX Fig. 1 Fig.2 Right-hand Shown Side Rake Angle Angle of Inclination Toolholder Dimensions Part Number KPC3-DDJN 7l 22050-15A Stock Coolant Hole Dimensions (mm) Standard Corner-R (RE) Drawing Spare Parts Clamp Screw Spring Shim Shim Screw Wrench R L DCSFMS LF WF DMIN1 DMIN2 08 I 1 u Yes 32 50 22 110 121 0.8 Fig.1 CP-3D-S CS-3D-TR SP-3D DD-44 ”s(DD-43) SB-4085TR FT-15 KPC4-DDJN 7l 27055-15A 40 55 27 110 145 KPC5-DDJN 7l 35060-15A 50 60 35 110 165 KPC3-DDJN 7l 22050-15S No 32 50 22 110 121 0.8 Fig.2 CP-3D-S CS-3D-TR SP-3D DD-44 ”s(DD-43) SB-4085TR FT-15 KPC4-DDJN 7l 27055-15S 40 55 27 110 145 KPC5-DDJN 7l 35060-15S 50 60 35 110 165 1 Pressure Resistance : up to 1,015 psi 2 When using inserts with corner-R (RE) greater than 3/64" (1.2mm), additional mod 3 Shims in parentheses () must be purchased separately for thicker inserts 4 Recommended tightening torque 3.9 Nm ications to the toolholder or shim may be necessary to prevent interference with workpiece DDHN (External / Copying) Toolholder Dimensions Spare Parts 0 o X LU -gCC -gq; CD Clamp Screw Spring Shim Shim Screw Wrench Part Number c 5 u R L O DCSFMS LF WF DMIN1 DMIN2 & b o Q i i KPC3-DDHN % 22050-1 5A 32 50 22 110 121 KPC4-DDHN%27055-1 5A Yes 40 55 27 110 145 0.8 Fig.1 CP-3D-S CS-3D-TR SP-3D DD-44 ”s(DD-43) SB-4085TR FT-15 KPC5-DDHNr/l 35060-15A 50 60 35 110 165 KPC3-DDHN % 22050-15S 32 50 22 110 121 KPC4-DDHN%27055-1 5S No 40 55 27 110 145 0.8 Fig.2 CP-3D-S CS-3D-TR SP-3D DD-44 ”s(DD-43) SB-4085TR FT-15 KPC5-DDHNr/l 35060-15S 50 60 35 110 165 1 Pressure Resistance : up to 1,015 psi 2 When using inserts with corner-R (RE) greater than 3/64" (1.2mm), additional mod 3 Shims in parentheses () must be purchased separately for thicker inserts 4 Recommended tightening torque 3.9 Nm ications to the toolholder or shim may be necessary to prevent interference with workpiece N4 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
