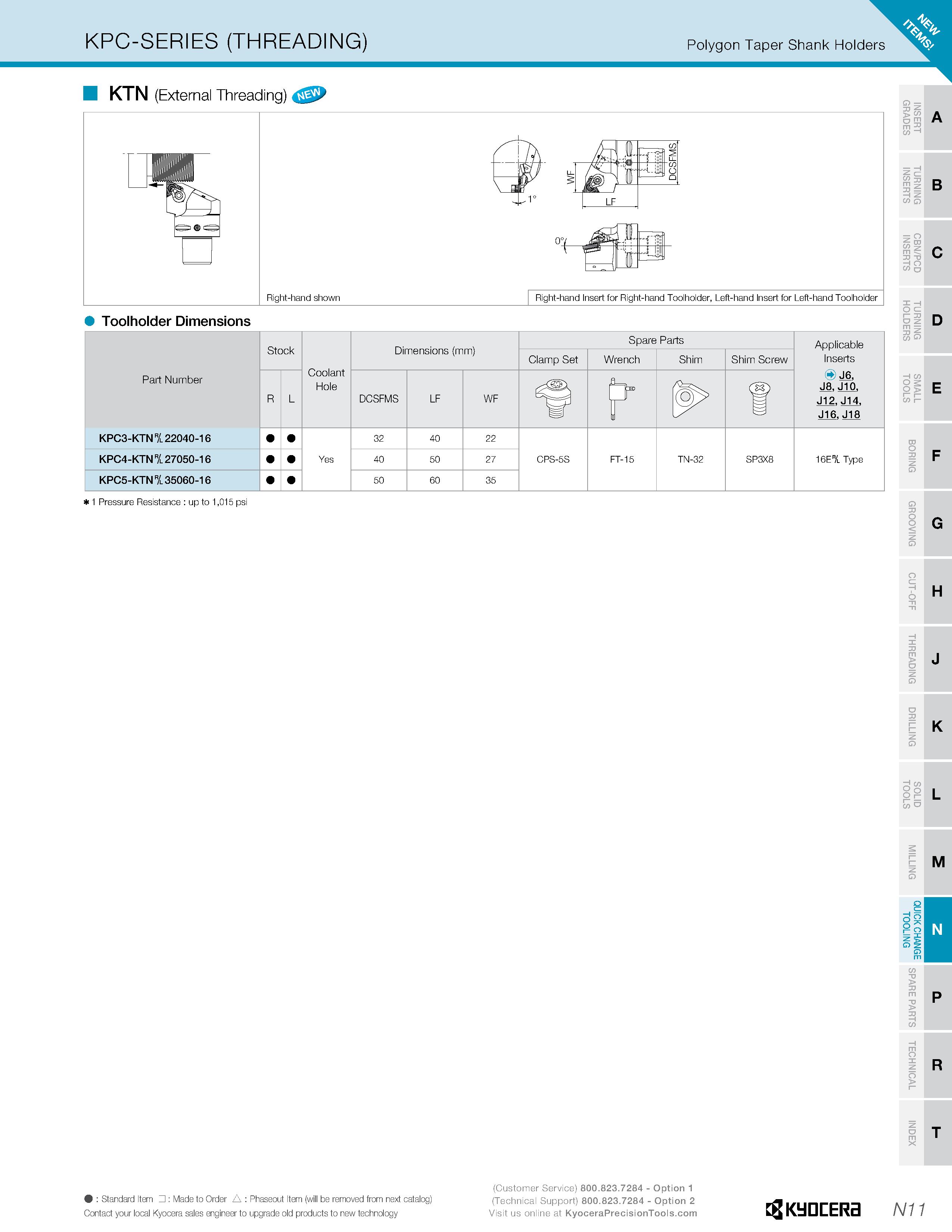

KPC-SERIES (THREADING) Polygon Taper Shank Holders KTN (External Threading) Right-hand shown Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder Toolholder Dimensions Part Number KPC3-KTN% 22040-16 Stock Coolant Hole Dimensions (mm) Spare Parts Applicable Inserts J6, J8. J10. J12. J14. J16. J18 Clamp Set Wrench Shim Shim Screw R L DCSFMS LF WF p Yes 32 40 22 CPS-5S FT-15 TN-32 SP3X8 16Er/l Type KPC4-KTNr/l 27050-16 40 50 27 KPC5-KTNr/l 35060-16 50 60 35 1 Pressure Resistance : up to 1,015 psi 3 C/> Q O CZ I- T> O m = W B O c t o 33 z Q G O CZ -H o H m 6 J Q> O 30 K E L O M T : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera N11
