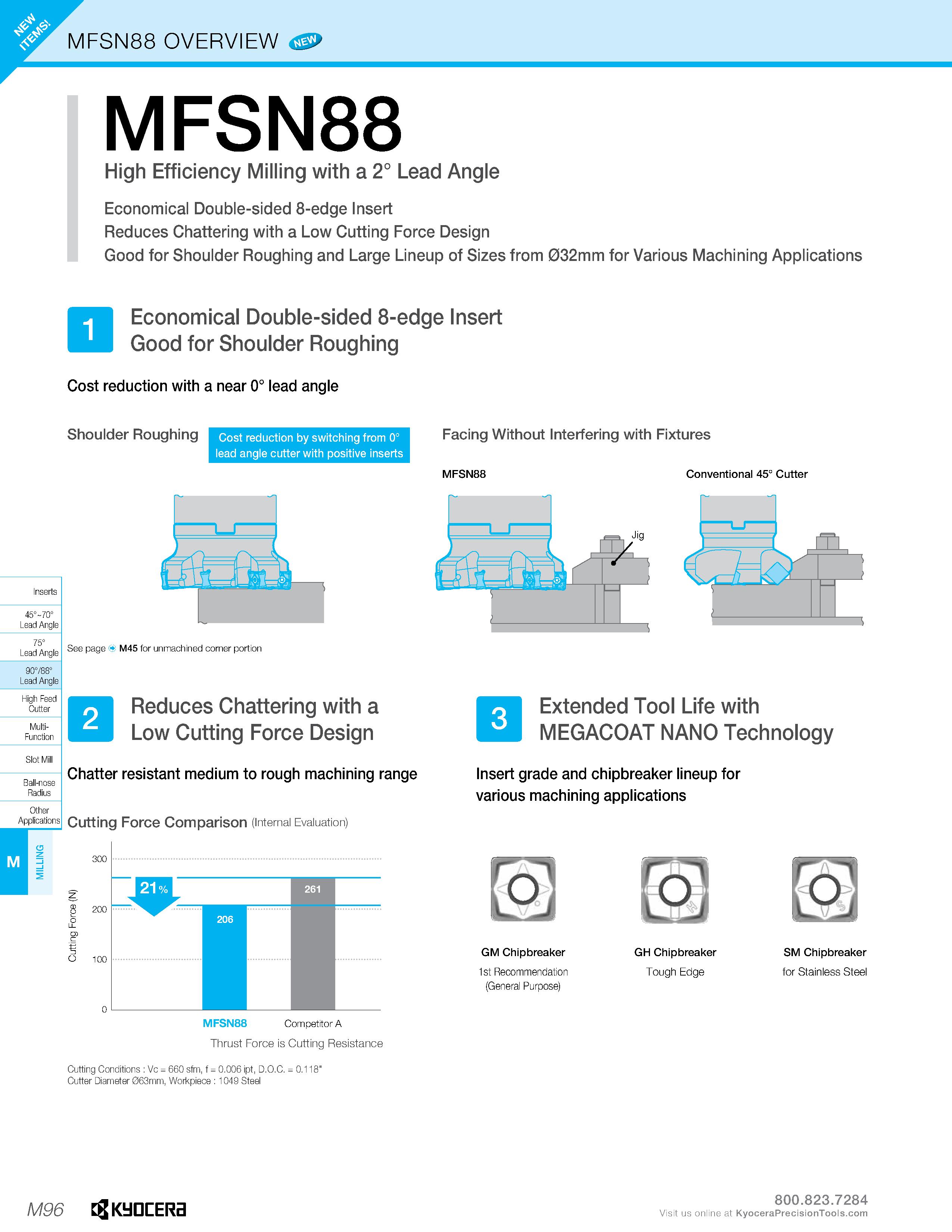

M MFSN88 High Efficiency Milling with a 2° Lead Angle Economical Double-sided 8-edge Insert Reduces Chattering with a Low Cutting Force Design Good for Shoulder Roughing and Large Lineup of Sizes from 032mm for Various Machining Applications Economical Double-sided 8-edge Insert Good for Shoulder Roughing Cost reduction with a near 0° lead angle Shoulder Roughing Cost reduction by switching from 0° lead angle cutter with positive inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications See page & M45 for unmachined corner portion KM Reduces Chattering with a II Low Cutting Force Design Chatter resistant medium to rough machining range Cutting Force Comparison (internal Evaluation) 261 206 MFSN88 Competitor A Thrust Force is Cutting Resistance Facing Without Interfering with Fixtures MFSN88 Conventional 45° Cutter Extended Tool Life with MEGACOAT NANO Technology Insert grade and chipbreaker lineup for various machining applications GM Chipbreaker 1st Recommendation (General Purpose) GH Chipbreaker Tough Edge SM Chipbreaker for Stainless Steel Cutting Conditions : Vc = 660 sfm, f - 0.006 ipt, D.O.C. = 0.118" Cutter Diameter 063mm, Workpiece : 1049 Steel M96 Kyocera Visit us online at
