1069 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M99

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M99 1069 Lab2u

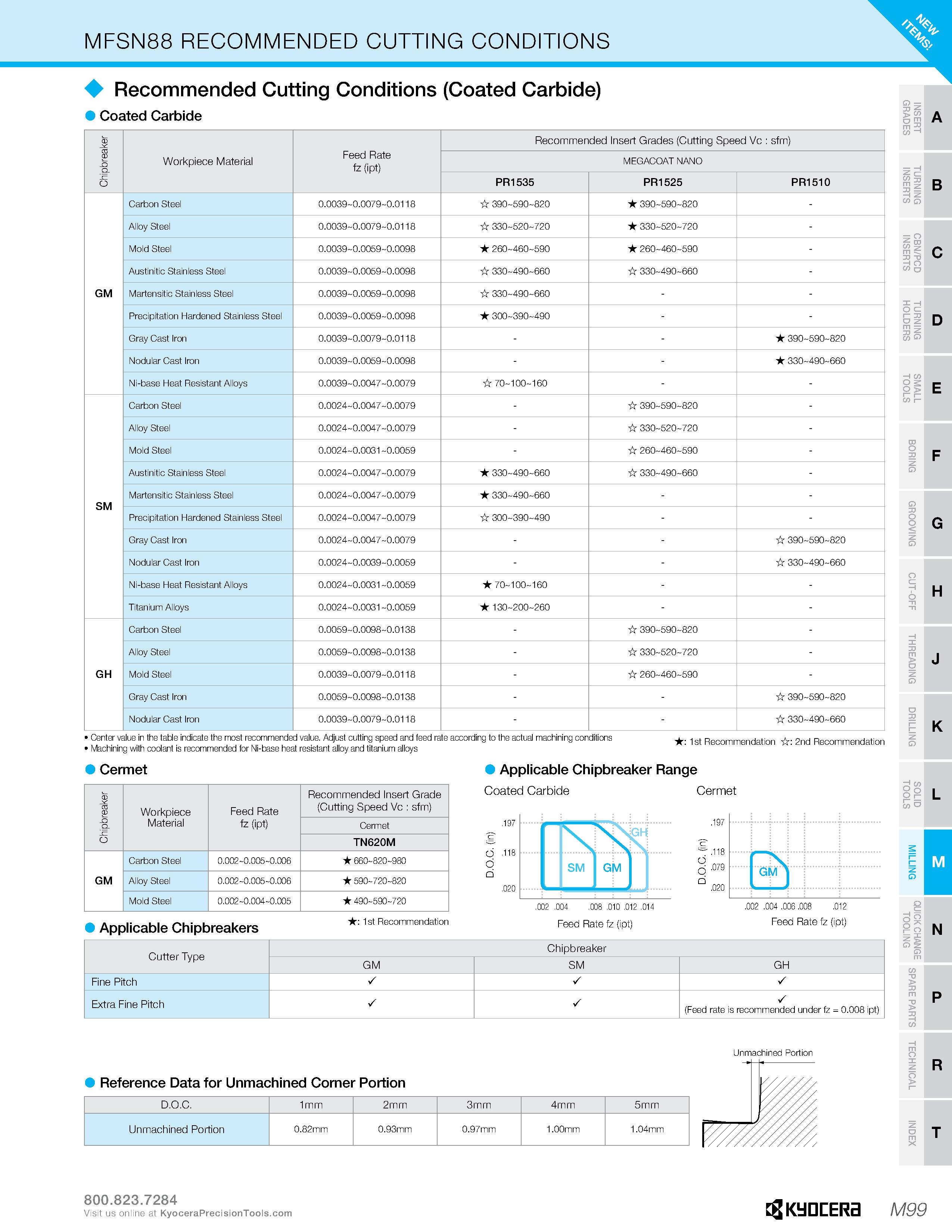

MFSN88 RECOMMENDED CUTTING CONDITIONS Recommended Cutting Conditions (Coated Carbide) Coated Carbide CD CC p o Recommended Insert Grades (Cutting Speed Vc : sfm) Workpiece Material Feed Rate fz (ipt) MEGACOAT NANO JZ O PR1535 PR1525 PR1510 Carbon Steel 0.0039-0.0079-0.0118 390-590-820 390-590-820 - Alloy Steel 0.0039-0.0079-0.0118 330-520-720 330-520-720 - Mold Steel 0.0039-0.0059-0.0098 260-460-590 260-460-590 - Austinitic Stainless Steel 0.0039-0.0059-0.0098 330-490-660 330-490-660 - GM Martensitic Stainless Steel 0.0039-0.0059-0.0098 330-490-660 - - Precipitation Hardened Stainless Steel 0.0039-0.0059-0.0098 300-390-490 - - Gray Cast Iron 0.0039-0.0079-0.0118 - - 390-590-820 Nodular Cast Iron 0.0039-0.0059-0.0098 - - 330-490-660 Ni-base Heat Resistant Alloys 0.0039-0.0047-0.0079 70-100-160 - - Carbon Steel 0.0024-0.0047-0.0079 - 390-590-820 - Alloy Steel 0.0024-0.0047-0.0079 - 330-520-720 - Mold Steel 0.0024-0.0031 -0.0059 - 260-460-590 - Austinitic Stainless Steel 0.0024-0.0047-0.0079 330-490-660 330-490-660 - SM Martensitic Stainless Steel 0.0024-0.0047-0.0079 330-490-660 - - Precipitation Hardened Stainless Steel 0.0024-0.0047-0.0079 300-390-490 - - Gray Cast Iron 0.0024-0.0047-0.0079 - - 390-590-820 Nodular Cast Iron 0.0024-0.0039-0.0059 - - 330-490-660 Ni-base Heat Resistant Alloys 0.0024-0.0031 -0.0059 70-100-160 - - Titanium Alloys 0.0024-0.0031 -0.0059 130-200-260 - - Carbon Steel 0.0059-0.0098-0.0138 - 390-590-820 - Alloy Steel 0.0059-0.0098-0.0138 - 330-520-720 - GH Mold Steel 0.0039-0.0079-0.0118 - 260-460-590 - Gray Cast Iron 0.0059-0.0098-0.0138 - - 390-590-820 Nodular Cast Iron 0.0039-0.0079-0.0118 - - 330-490-660 T> u S8 O cz I- T> O m = W O S o > o 33 z Q o cz -H o > o z. Q Center value in the table indicate the most recommended value. Adjust cutting speed and feed rate according to the actual machining conditions Machining with coolant is recommended for Ni-base heat resistant alloy and titanium alloys : 1st Recommendation : 2nd Recommendation Cermet ro CD Workpiece Feed Rate Recommended Insert Grade (Cutting Speed Vc : sfm) o Q Material fz (ipt) Cermet o TN620M Carbon Steel 0.002-0.005-0.006 660-820-980 GM Alloy Steel 0.002-0.005-0.006 590-720-820 Mold Steel 0.002-0.004-0.005 490-590-720 Applicable Chipbreaker Range Coated Carbide Cermet Applicable Chipbreakers : 1 st Recommendation Feed Rate fz (ipt) Feed Rate fz (ipt) Cutter Type Chipbreaker GM SM GH Fine Pitch Extra Fine Pitch 'Z (Feed rate is recommended under fz - 0.008 ipt) Unmachined Portion Reference Data for Unmachined Corner Portion D.O.C. 1mm 2mm 3mm 4mm 5mm Unmachined Portion 0.82mm 0.93mm 0.97mm 1.00mm 1.04mm Visit us online at Kyocera M99
