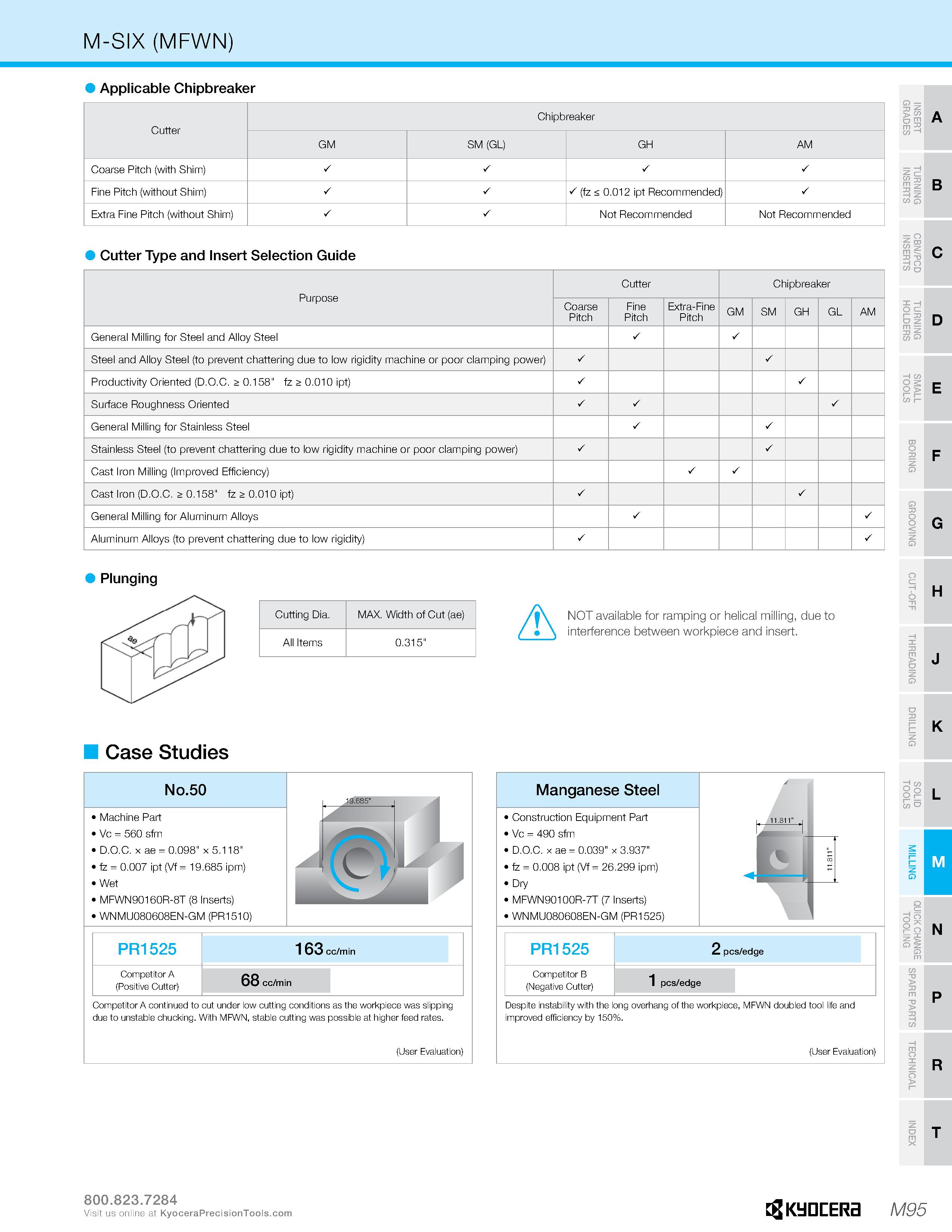

M-SIX (MFWN) Applicable Chipbreaker Cutter Chipbreaker GM SM (GL) GH AM Coarse Pitch (with Shim) Fine Pitch (without Shim) S (fz 0.012 ipt Recommended) Extra Fine Pitch (without Shim) Not Recommended Not Recommended O m A SS A 1 m D 3s B W Q Cutter Type and Insert Selection Guide Purpose Cutter Chipbreaker Coarse Pitch Fine Pitch Extra-Fine Pitch GM SM GH GL AM General Milling for Steel and Alloy Steel Steel and Alloy Steel (to prevent chattering due to low rigidity machine or poor clamping power) Productivity Oriented (D.O.C. >0.158" fz > 0.010 ipt) Surface Roughness Oriented General Milling for Stainless Steel Stainless Steel (to prevent chattering due to low rigidity machine or poor clamping power) Cast Iron Milling (Improved Efficiency) Cast Iron (D.O.C. > 0.158" fz >0.010 ipt) General Milling for Aluminum Alloys Aluminum Alloys (to prevent chattering due to low rigidity) TI U S8 O cz I- TI O m = W C5 O S o > o 5 z Q Plunging Cutting Dia. MAX. Width of Cut (ae) All Items 0.315" A NOT available for ramping or helical milling, due to interference between workpiece and insert. o CZ -H o > o z. o H K Case Studies No.50 Machine Part Vc = 560 sfm D.O.C. x ae = 0.098" x 5.118" fe = 0.007 ipt (Vf = 19.685 ipm) Wet MFWN90160R-8T (8 Inserts) WNMU080608EN-GM (PR1510) PR1525 1 63 cc/min Competitor A (Positive Cutter) 68 cc/min Competitor A continued to cut under low cutting conditions as the workpiece was slipping due to unstable chucking. With MFWN, stable cutting was possible at higher feed rates. (User Evaluation) Manganese Steel > Construction Equipment Part > Vc = 490 sfm > D.O.C. x ae = 0.039" x 3.937" > fe = 0.008 ipt (Vf = 26.299 ipm) > Dry > MFWN90100R-7T (7 Inserts) - WNMU080608EN-GM (PR1525) PR1525 2 pcs/edge Competitor B (Negative Cutter) 1 pcs/edge Despite instability with the long overhang of the workpiece, MFWN doubled tool life and improved efficiency by 150%. (User Evaluation) N Visit us online at Kyocera M95
