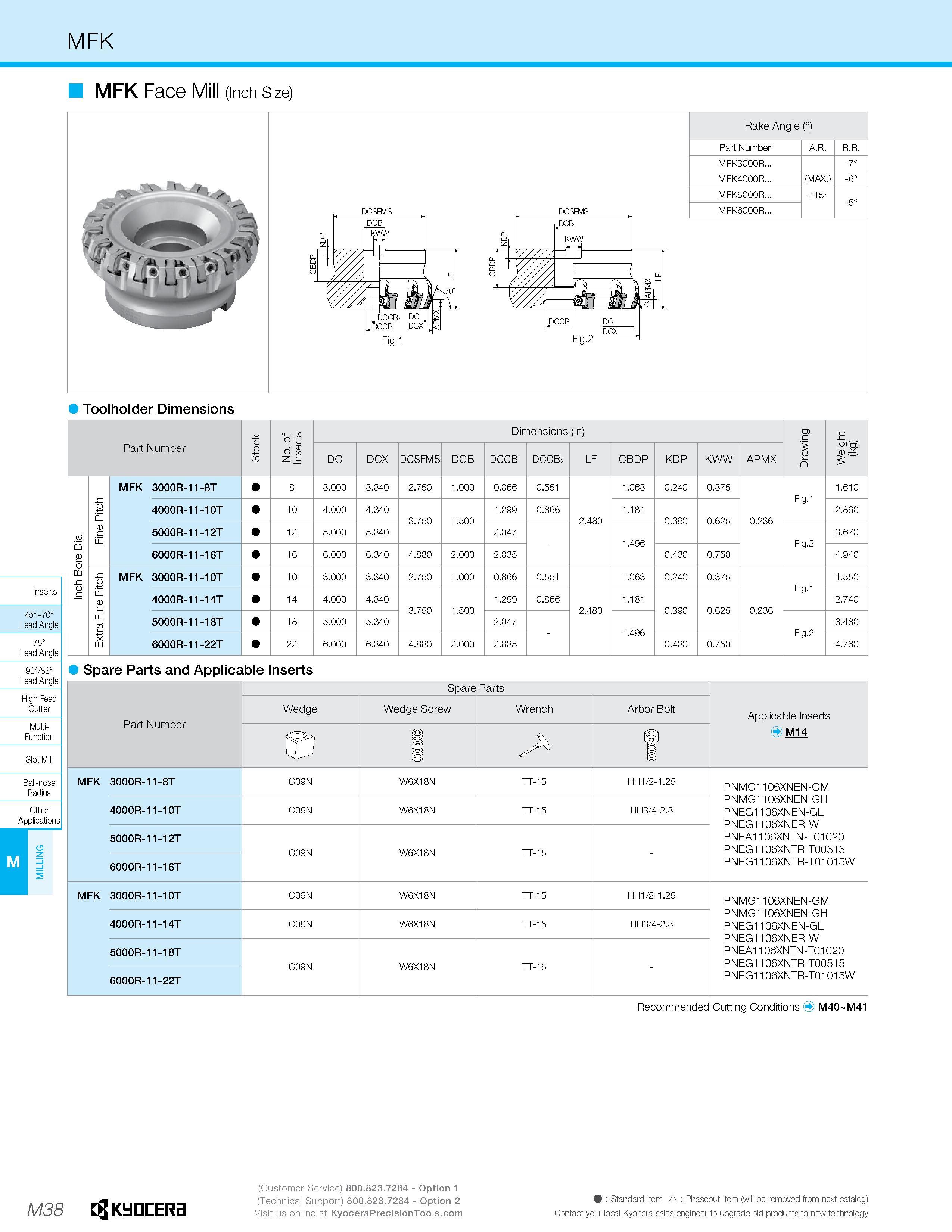

MFK MFK Face (Inch Size) Rake Angle (°) Part Number A.R. R.R. MFK3000R... (MAX.) +15° -7° MFK4000R... -6° MFK5000R... -5° MFK6000R... Toolholder Dimensions Part Number Stock No. of Inserts Dimensions (in) Drawing Weight (kg) DC DCX DCSFMS DCB DCCB DCCB LF CBDP KDP KWW APMX Inch Bore Dia. Fine Pitch MFK 3000R-11-8T 8 3.000 3.340 2.750 1.000 0.866 0.551 2.480 1.063 0.240 0.375 0.236 Fig-1 1.610 4000R-11-10T 10 4.000 4.340 3.750 1.500 1.299 0.866 1.181 0.390 0.625 2.860 5000R-11-12T 12 5.000 5.340 2.047 - 1.496 Fig.2 3.670 6000R-11-16T 16 6.000 6.340 4.880 2.000 2.835 0.430 0.750 4.940 Extra Fine Pitch MFK 3000R-11-10T 10 3.000 3.340 2.750 1.000 0.866 0.551 2.480 1.063 0.240 0.375 0.236 Fig.1 1.550 4000R-11-14T 14 4.000 4.340 3.750 1.500 1.299 0.866 1.181 0.390 0.625 2.740 5000R-11-18T 18 5.000 5.340 2.047 - 1.496 Fig.2 3.480 6000R-11-22T 22 6.000 6.340 4.880 2.000 2.835 0.430 0.750 4.760 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Spare Parts and Applicable Inserts Part Number Spare Parts Applicable Inserts MU Wedge Wedge Screw Wrench Arbor Bolt gj f MFK 3000R-11-8T C09N W6X18N TT-15 HH1/2-1.25 PNMG1106XNEN-GM PNMG1106XNEN-GH PNEG1106XNEN-GL PNEG1106XNER-W PNEA1106XNTN-T01020 PNEG1106XNTR-T00515 PNEG1106XNTR-T01015W 4000R-11-10T C09N W6X18N TT-15 HH 3/4-2.3 5000R-11-12T 6000R-11-16T C09N W6X18N TT-15 - MFK 3000R-11-10T C09N W6X18N TT-15 HH1/2-1.25 PNMG1106XNEN-GM PNMG1106XNEN-GH PNEG1106XNEN-GL PNEG1106XNER-W PNEA1106XNTN-T01020 PNEG1106XNTR-T00515 PNEG1106XNTR-T01015W 4000R-11-14T C09N W6X18N TT-15 HH 3/4-2.3 5000R-11-18T 6000R-11-22T C09N W6X18N TT-15 - Multi- Function B all-nose Radius Other Applications Recommended Cutting Conditions M40 M41 M38 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
