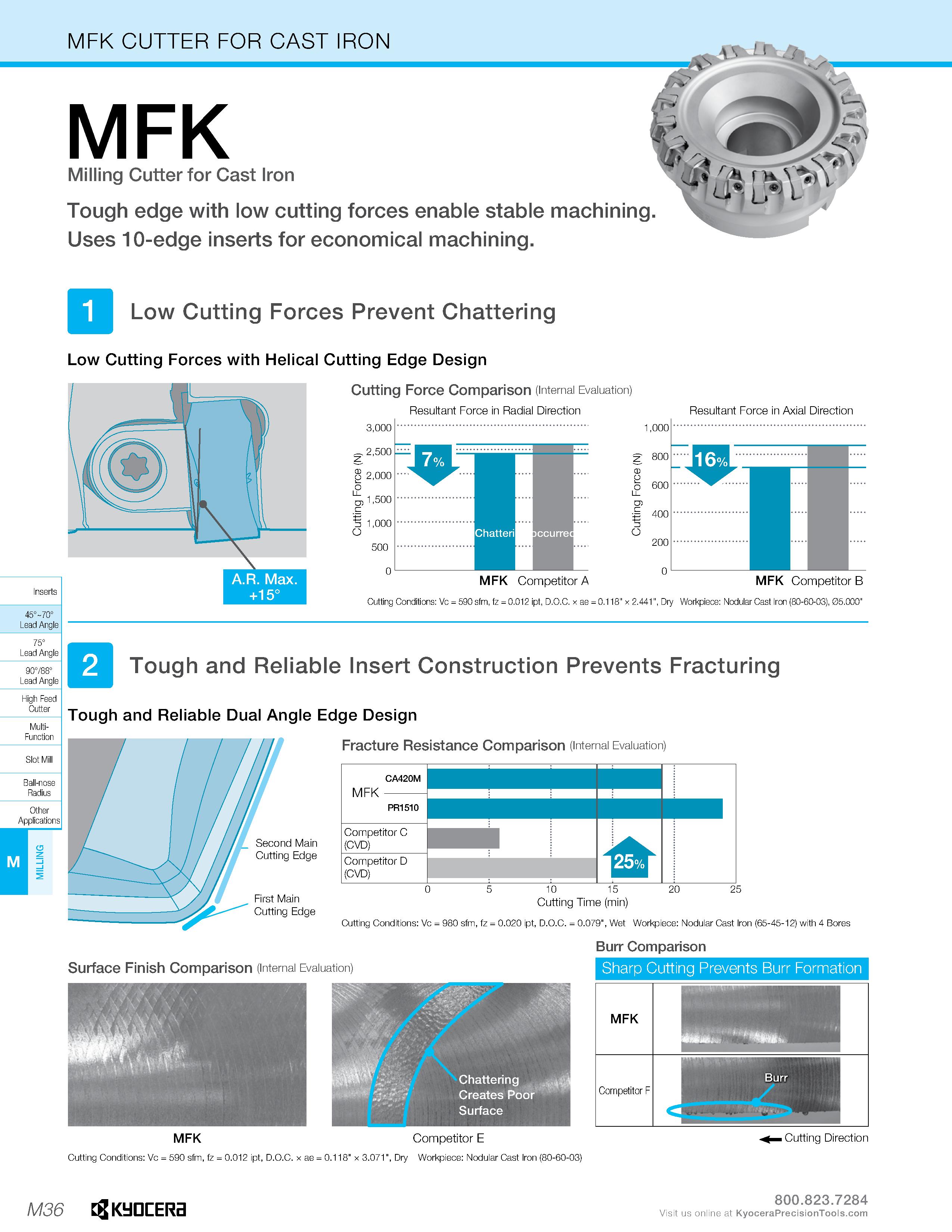

MFK CUTTER FOR CAST IRON MFK Milling Cutter for Cast Iron Tough edge with low cutting forces enable stable Uses 10-edge inserts for economical machining. Low Cutting Forces Prevent Chattering Low Cutting Forces with Helical Cutting Edge Design Cutting Force Comparison (internal Evaluation) Resultant Force in Radial Direction 3,000 45°-70° Lead Angle 75° Lead Angle 9078E Lead Angle Resultant Force in Axial Direction . 2,500 o 2,000 , 1,500 O 1,000 500 A.R. Max. +15° 1,000 w z 800 . 0 p o 600 LL cn B 400 Chatter ccurre D o 200 0 MFK Competitor A MFK Competitor B Cutting Conditions: Vc = 590 sfm, fz = 0.012 ipt, D.O.C. x ae = 0.118” x 2.441", Dry Workpiece: Nodular Cast Iron (I 0-03), 05.000" Tough and Reliable Insert Construction Prevents Fracturing Tough and Reliable Dual Angle Edge Design Fracture Resistance Comparison (internal Evaluation) Second Main Cutting Edge First Main Cutting Edge Competitor C (CVD) Competitor D (CVD) 10 15 Cutting Time (min) Cutting Conditions: Vc = 980 sfm, fz = 0.020 ipt, D.O.C. = 0.079", Wet Workpiece: Nodular Cast Iron (65-45-12) with 4 Bores Burr Comparison Surface Finish Comparison (internal Evaluation) Sharp Cutting Prevents Burr Formation MFK Competitor E Cutting Direction Cutting Conditions: Vc = 590 sfm, fz = 0.012 ipt, D.O.C. x ae = 0.118" x 3.071", Dry Workpiece: Nodular Cast Iron (80-60-03) machining. M36 Kyocera Visit us online at
